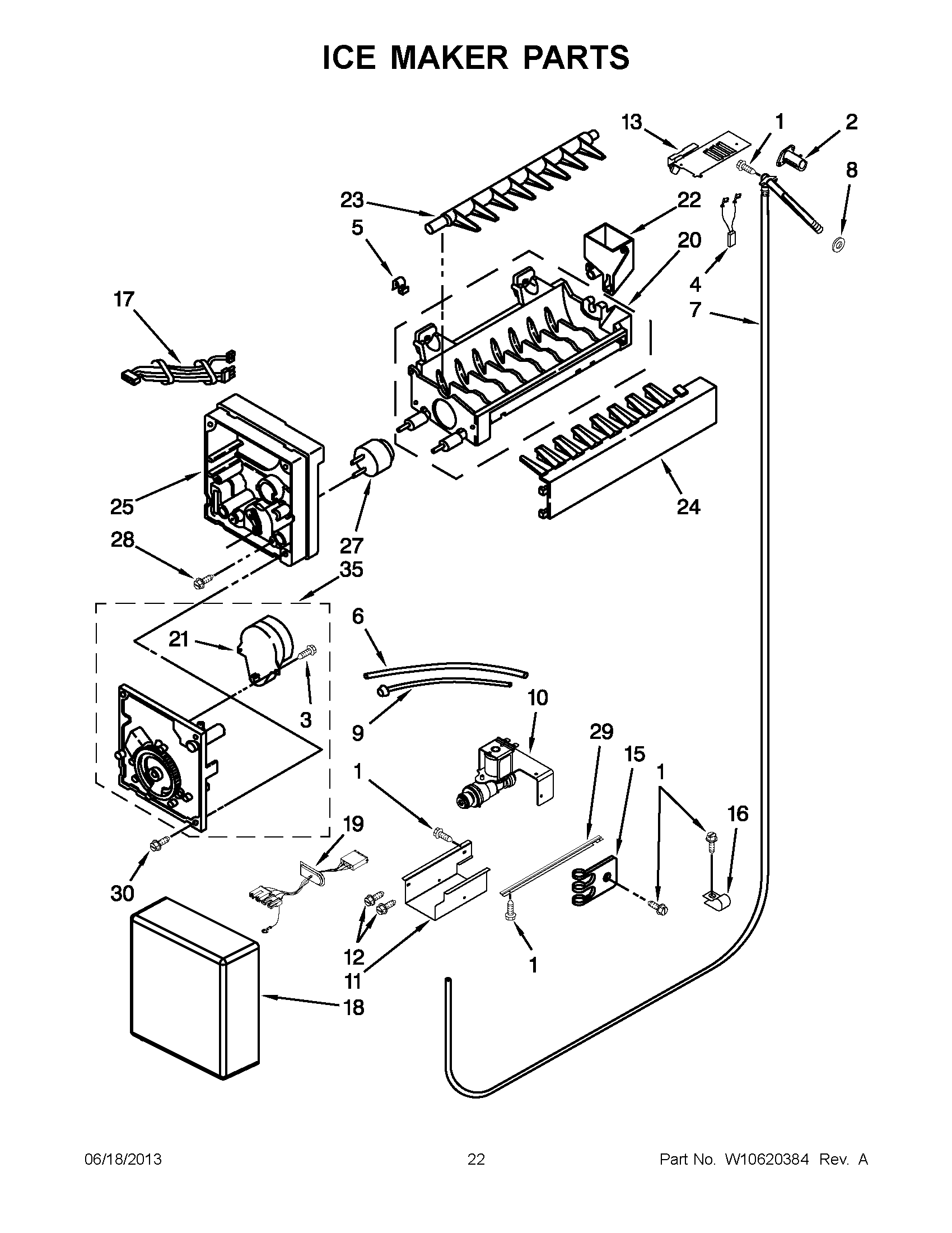

JB36SSFXRA01 11 – ICE MAKER PARTS

Products

PositionProduct
NILINER (NOT A SERVICEABLE PART)
NIMAY 8537055
1SCREW
2MAY 2221240
3MAY 489136
4WIRE ASSEMBLY, FILL TUBE HEATER
5Clip
6MAY W10296807
7MAY 2317847
8Seal
9MAY W10437853
10MAY 2307650
11MAY W10129653
12Screw (3)
13MAY 2221231
15Clip, Tube
16MAY W10331955
17WIRE ASSEMBLY, ICE MAKER
18COVER
19MAY W10279393
20MAY W10122527
22MAY W10435665
23MAY 627843
24ICE STRIPPER
25MAY 2194712
27Thermostat (Also Order 542369 Cement Alumilastic)
28Screw (2)
29MAY 2320559
30MAY 489276
35Module Assembly (Includes Items 23 and 24)
100MAY W10277450
