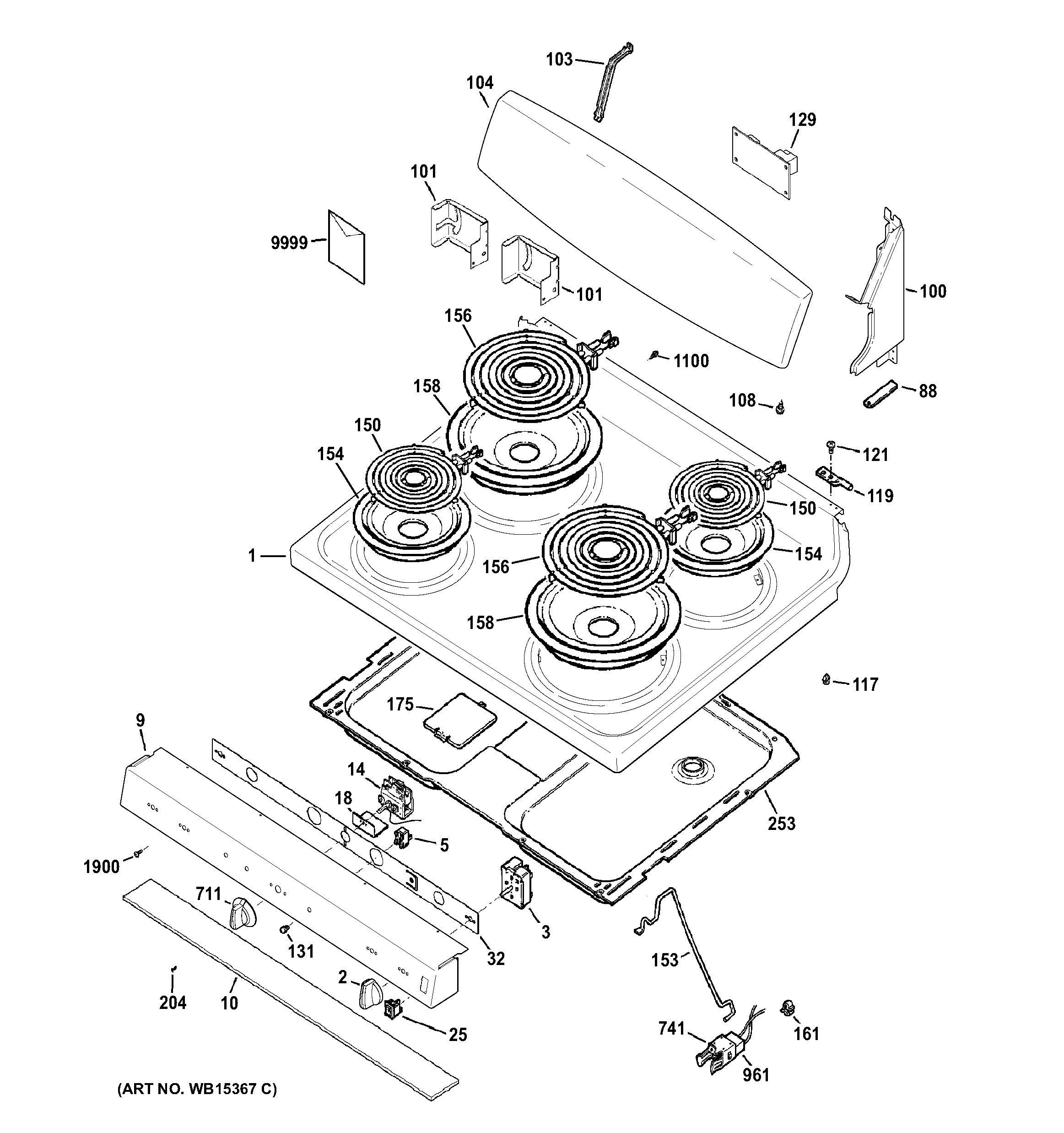

JB450RF1SS CONTROL PANEL & COOKTOP

Products

Position	Product
1	WB62X21354 GE Range Top
2	WB03X21356 GE Oven Knob
3	WB23K10002 GE Oven Element Switch
3	WB23K10003 GE Oven Control Switch
5	WB25K10002 GE Stove Oven Cooktop Pilot Lamp
9	FRONT PANEL
10	WB35K10029 GE Oven Burner Box Insulation
14	WB20K10018 GE Oven Self-Clean Thermostat
18	WB02K10103 GE Cover Thermostat Carton
25	GEN WB24K0003
32	GEN WB34K10070
88	GEN WB02K0062
100	WB07X20197 GE Range Left End Support
100	WB07X20194 GE Range Right End Support
101	WB37X20196 GE Cooktop Bracket
101	WB37X20193 GE Cooktop Bracket
103	WB02K10150 GE Oven Control Bracket
104	GEN WB36X21359
108	WB1X5364 GE Oven Mounting Screw
108	GEN WB01X5716
117	GEN WB02K0017
117	WB02K10075 GE Oven Plastic Nail
119	WB14K5 GE Oven Hinge Pin
129	WB11K10039 GE Oven Self Clean Timer
131	WB25T10041 GE Oven Lens
150	SURFACE UNIT ASM 6
153	WB02K10026 GE Oven Rod Support
154	WB31T10014 GE Oven 6-Inch Black Drip Bowl
156	WB30K10018 GE Oven 8" Burner Unit
158	WB31T10015 8" BOWL BLACK REAR BUBBLE
161	CLIP WIRE
175	LATCH COVER
204	WB1K5062 GE Oven Screw
253	WB64K10011 GE Oven Cooktop Box
711	THERMOSTAT KNOB ASM
741	WB02K10133 GE Oven Receptacle Clip
961	WB17T10006 GE Oven Burner Receptacle Block
1100	WB01T10016 GE Oven Screw 8-18 AB Hex
1900	WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
9999	WB49X21392 GE Oven Hinge Service Kit
9999	GEN 49-88056
9999	GEN 31-17099
