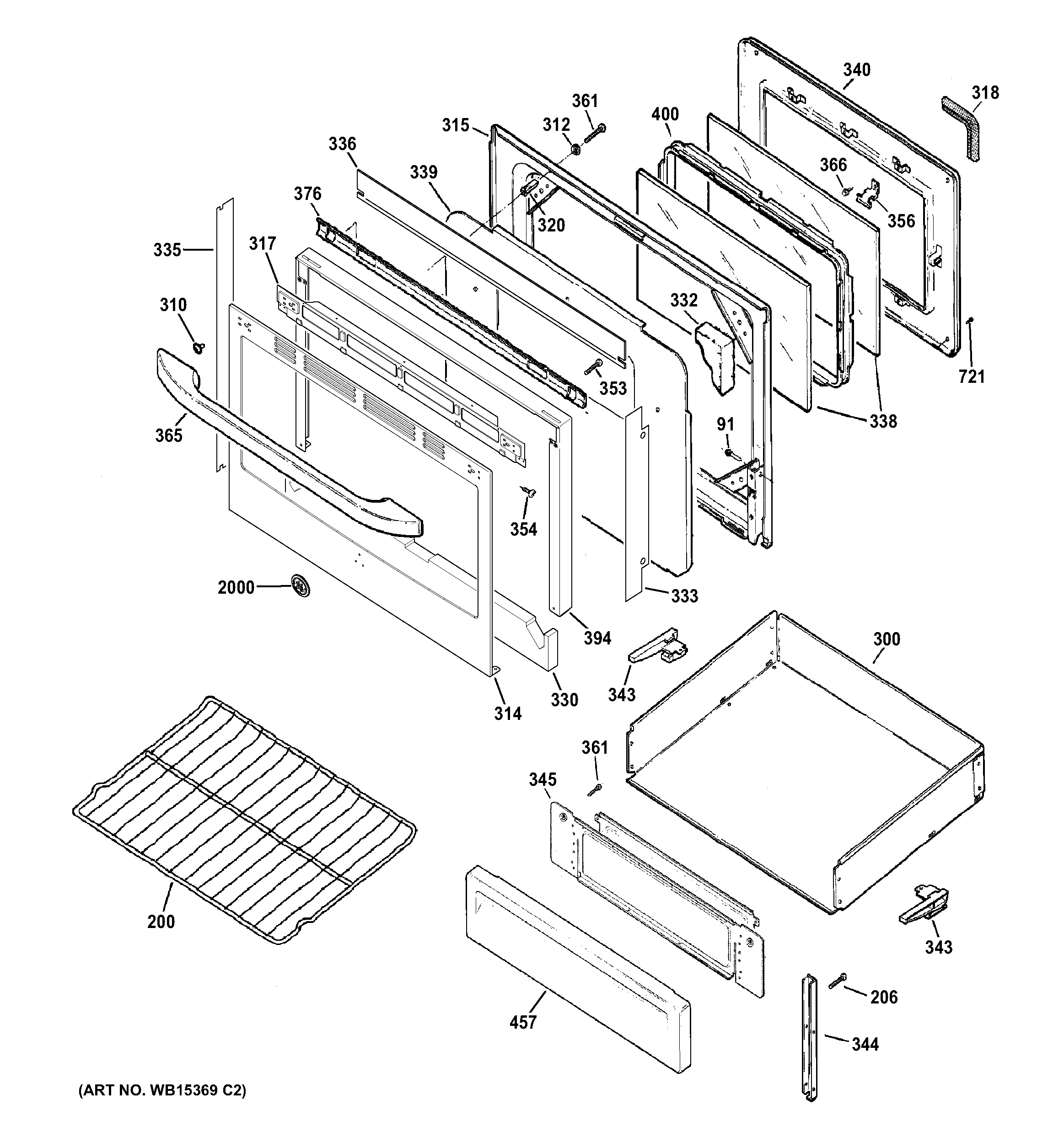

JB450RF1SS DOOR & DRAWER PARTS

JB450RF1SS DOOR & DRAWER PARTS

Written by

in

JB450RF1SS DOOR & DRAWER PARTS

Products

PositionProduct
91WB01T10008 GE Oven Screw 10-32
200OVEN RACK
206WB01K10091 GE Oven Screw
300WB58K10015 GE Oven Drawer Body
310WB01K10023 GE Oven Grommet Handle
312WB1X119D GE Oven Range Washer
314GEN WB56X21660
315WB56X20537 GE Oven Door Weld Liner
317WB56X20809 GE Oven Backer Panel
318WB35X29668 GE Oven Door Gasket Assembly
320WB02K10161 GE Oven Spacer
330WB35X20077 GE Door Insulation
332WB35K10221 GE Range Insulation
332WB35K10222 GE Oven Insulation
335WB35K10041 GE Oven Reflector
336WB35K10084 GE Door Insulation
338CRYSTAL WINDOW
339WB56K10037 GE Door Insulation Guard
340WB55K13 GE Oven Panel Weld
343WB2K68 GE Oven Drawer Glide
344WB39K20 GE Oven Mounting Bracket Drawer
345WB55K10068 GE Oven Drawer Liner
353WB01K10012 GE Oven Screw 8-22 PL 1HX
354WB1K62 GE Oven Door Assembly
356GEN WB02K0056
361WB02X32438 GE Door Handle Screw
365WB15K10084 GE Handle
366WB1X536 GE Oven Screw
376WB35K23 GE Heater Deflector
394WB07X20354 GE Oven Door Trim
400WB34K10087 GE Oven Window Spacer Assembly
457GEN WB55K10071
2000GE BADGE GRAY
