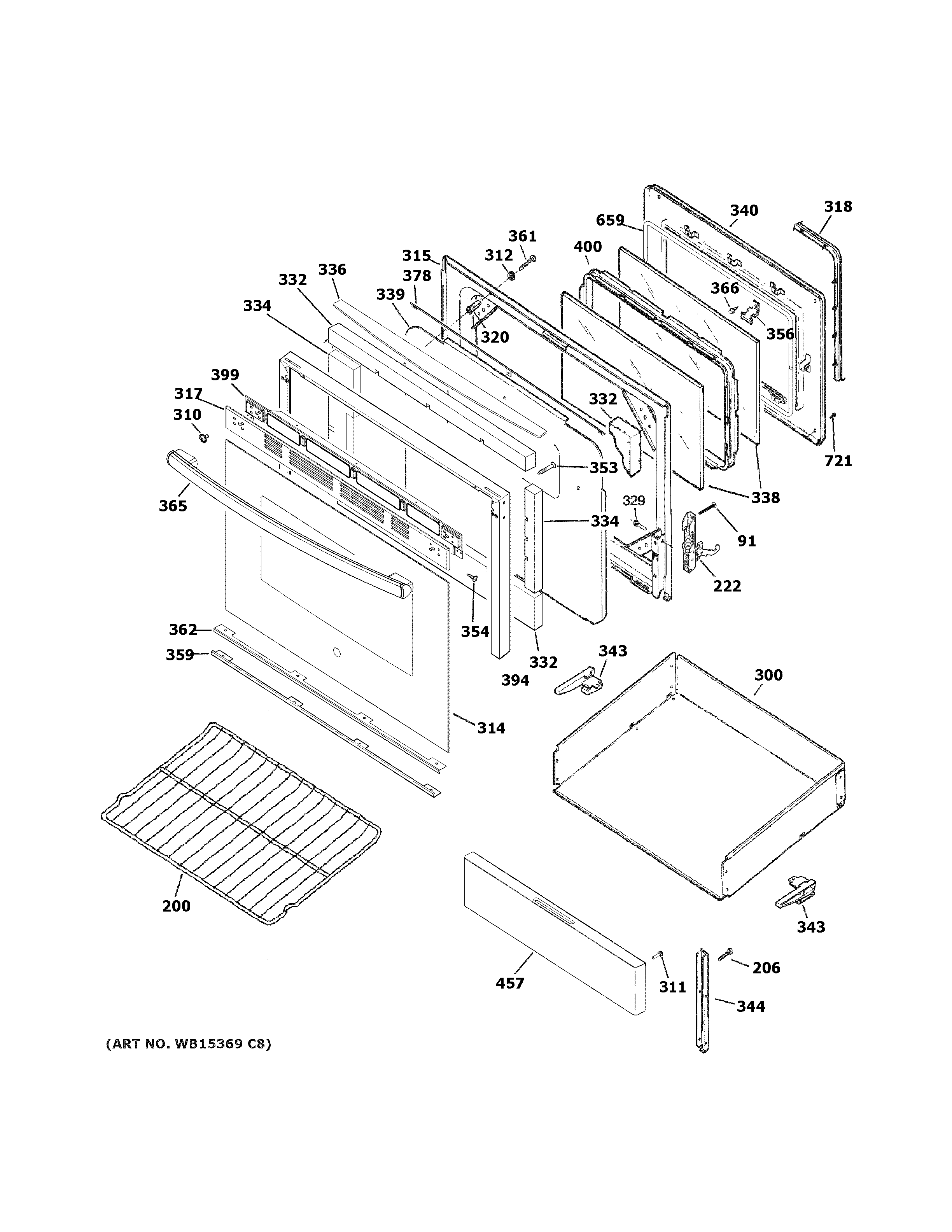

JB480DM1BB DOOR & DRAWER PARTS

JB480DM1BB DOOR & DRAWER PARTS

Written by

in

JB480DM1BB DOOR & DRAWER PARTS

Products

PositionProduct
91WB01T10008 GE Oven Screw 10-32
200OVEN RACK
206WB01K10091 GE Oven Screw
222HINGE DOOR
300WB58K10015 GE Oven Drawer Body
310WB01K10023 GE Oven Grommet Handle
311BUMPER
312WB1X119D GE Oven Range Washer
314WB56X21358 GE Oven Glass Door
315WB56X21344 GE Door Weld Liner
317WB7K403 GE Oven Top Door Trim
318WB35X29722 GE Oven Door Gasket Assembly
320WB02K10161 GE Oven Spacer
332GEN WB35K10102
334GEN WB35K10101
336WB35X21686 GE Door Insulation
338WB56X23809 GE Oven Range Door Crystal Window
339WB56K12 GE Oven Insulation Guard
340WB55K10033 GE Oven Welded Panel
343WB2K68 GE Oven Drawer Glide
344WB02X24742 GE Oven Drawer Bracket
353WB01K10012 GE Oven Screw 8-22 PL 1HX
354WB1K66 GE Screw
356GEN WB02K0056
359WB07K10232 GE Oven Bottom Trim Assembly
361WB02X32438 GE Door Handle Screw
362BARRIER DOOR
365WB15T10213 GE Oven Handle LE-BK
366WB1X536 GE Oven Screw
378DEFLECTOR INNER DOOR
394WB07X20355 GE Door Trim
399WB56X20809 GE Oven Backer Panel
400WB34K10087 GE Oven Window Spacer Assembly
457WB56X24731 GE Drawer Panel
659WB35X21685 GE Oven Cord Fiberglass
721WB1K84 GE Oven Screw and
