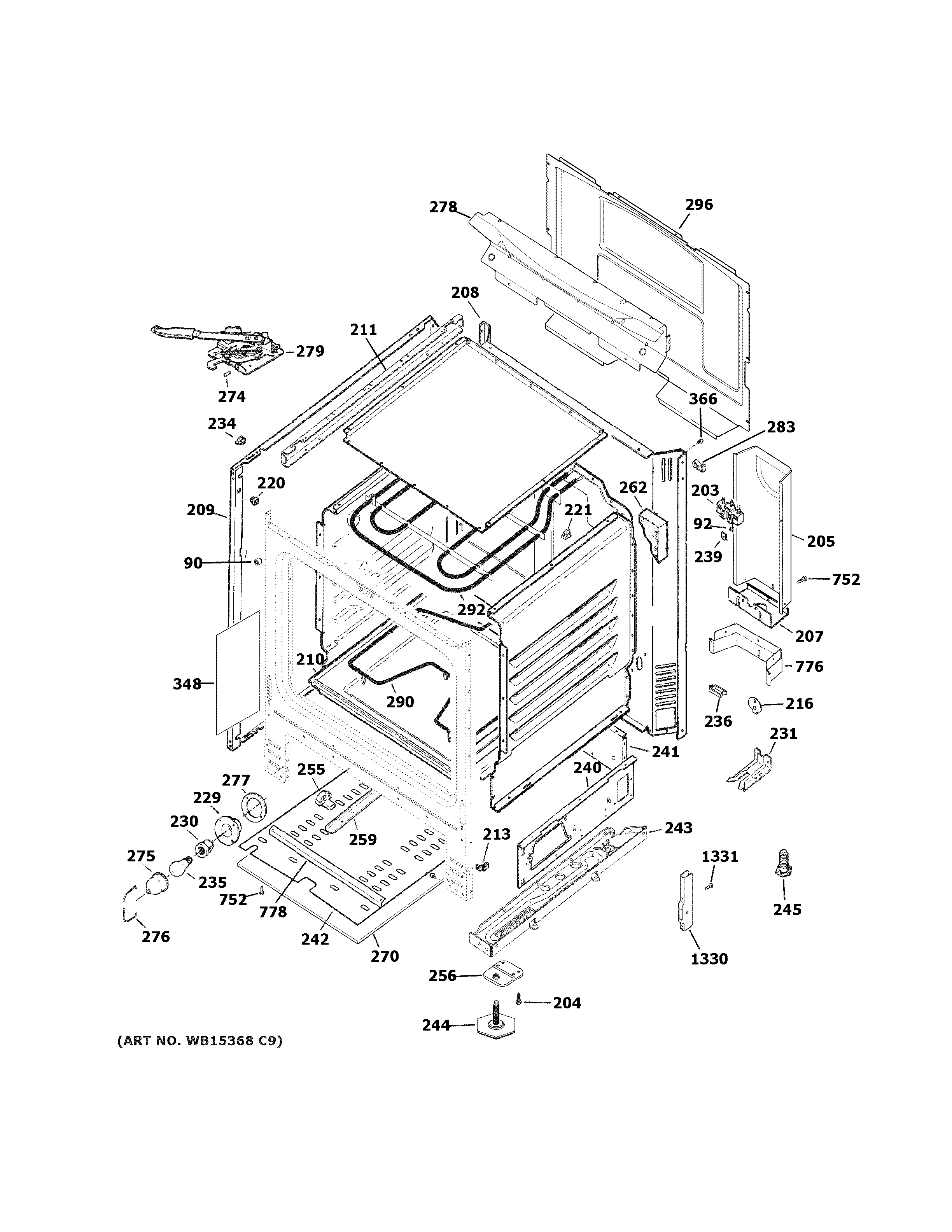

JB480DM1WW BODY PARTS

JB480DM1WW BODY PARTS

Written by

in

JB480DM1WW BODY PARTS

Products

PositionProduct
90WB02X28738 GE Oven Front Frame Bumper
92WB1X1261 GE Oven Screw
203WB17T10011 GE Oven Terminal Block
204WB1K5062 GE Oven Screw
205WB34X21584 GE Oven Guard Terminal
207WB02K10029 GE Oven Mounting Terminal Bracket
208RANGE BACK
209WB56X29122 GE Oven Side Panel
210WB63K10105 GE Range Oven Bottom
211GEN WB63K10199
213WB1K3 GE Oven Speed Nut
216GEN WB06K10003
220GEN WB02K0008
221WB02K10073 GE Oven Clip Capillary
229GEN WB08K0001
230WB08T10026 GE Range Push-In Receptacle
231WB02X27862 GE Oven Anti-Tip Bracket Assembly
234GEN WB02K0066
235RANGE ONLY 40W 120V APPL BULB
236GEN WB02K0022
239PLATE GROUND
240GEN WB63K0002
240WB63K3 GE Oven Panel Side Broil
241PANEL REAR BROIL
242WB63K10031 GE Bottom Guard
243SUPPORT BASE LEFT
243WB63K10256 GE Oven Support Base
244WB02X29030 GE Range Leveling Leg
245WB02K10182 GE Oven Leveling Leg
255WB02K10163 GE Oven Drawer Support
256WB34X29134 GE Oven Base Bracket
259WB39K16 GE Oven Drawer Rail
262INSULATION OVEN BACK
270INSULATION DRAWER TOP
274GEN WB01K0044
275WB36X192 GE Oven Light Cover
276WB2K27 GE Oven Bail
277GEN WB32K0005
278DIVIDER WIRING
279WB02X31558 GE Latch Assembly
283WB02X21679 GE Oven Wire Clip
290WB30X46987 GE Bake Element
292DOUBLE BROIL
296COVER BACK
348WB35X26892 GE Oven Side Panel Foil
366WB1X536 GE Oven Screw
752WZ4X345D GE Screw Package 12 C92
776WB34K10054 GE Terminal Comp Guard
778WB34K10055 GE Bottom Guard Complete
1330WB10X20220 GE Oven Receiver Hinge
1331GEN WB01K0053
