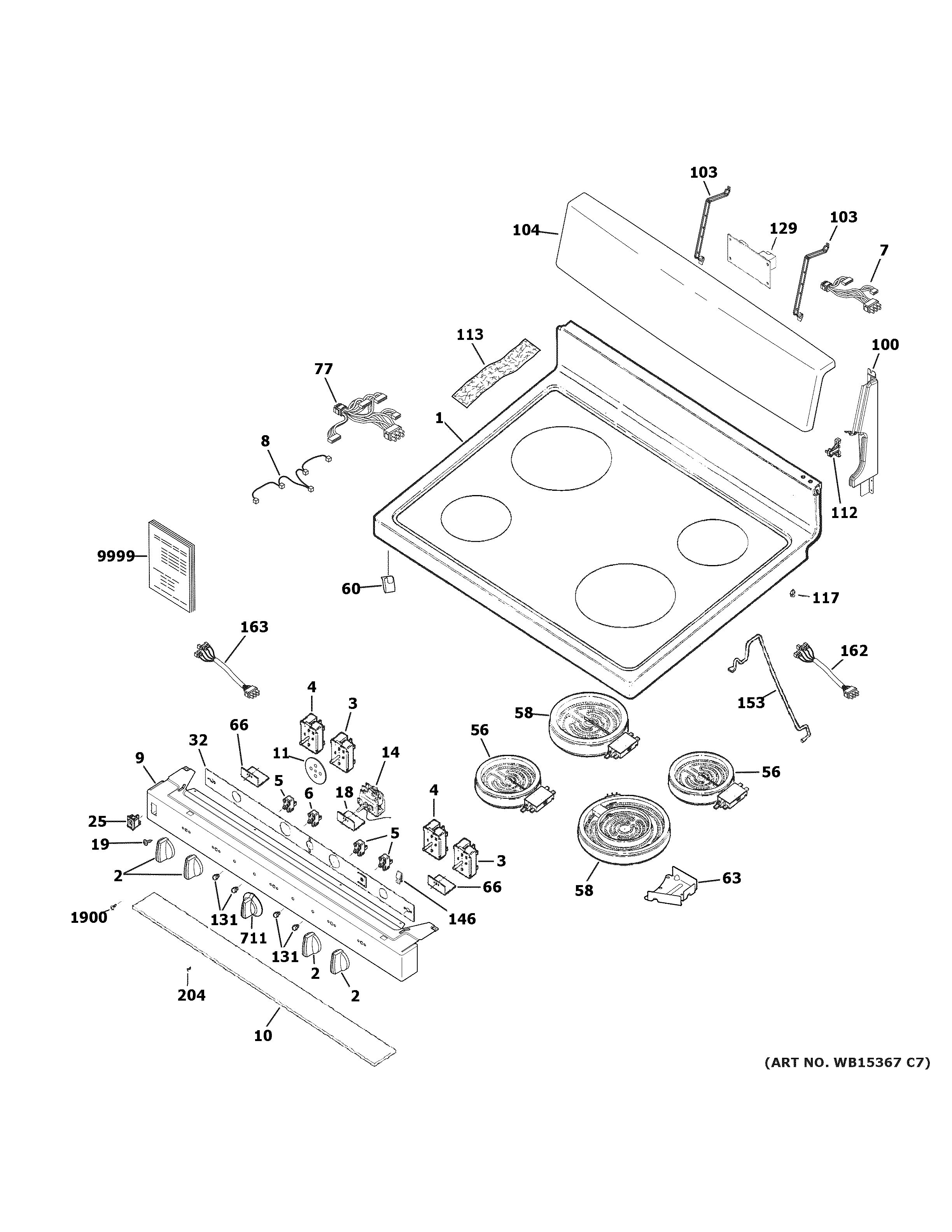

JB480DM2WW CONTROL PANEL & COOKTOP

JB480DM2WW CONTROL PANEL & COOKTOP

Written by

in

JB480DM2WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1WB57K10143 GE Range Glass Top Assembly
2KNOB VALVE
3WB23X31570 GE Oven Infinite Switch
4WB23K10002 GE Oven Element Switch
5WB25K10010 GE Oven Light Indicator Pilot
6WB25X31567 GE Lamp Pilot Assembly
7WB18X31429 GE Cooktop Harness
8WB18X31425 GE Lamp Pilot Harness
9WHITE MANIFOLD PANEL
10WB35X20648 GE Oven Insulation Burner Box
11SEAL VALVE
14WB20K10018 GE Oven Self-Clean Thermostat
18WB02K10103 GE Cover Thermostat Carton
19WB1K8 GE Oven Thermostat Screw
25WB24X20459 GE Oven Rocker Switch Sealed
32GEN WB34K10070
56WB30X26460 GE Oven Halogen Element 6
58WB30X26465 GE Oven 8" Halogen Element
60WB09X40389 GE Radiant Element Spring
63WB02T10041 GE Oven Radiant Element Bracket
66COVER THERMOSTAT
77WB18X31426 GE Main Harness
100WHITE END SUPPORT RH
100WHITE END SUPPORT LH
103WB02X24845 GE Range Control Bracket
104WHITE BACKGUARD RANGE
112WB14K10003 GE Range Top Hinge
113FOIL COOKTOP
117GEN WB02K0017
129WB11K10039 GE Oven Self Clean Timer
131WB25K10009 GE Oven Lens
146WB02X26569 GE Range Top Clip
153WB02X21082 GE Range Support Rod
162HARNESS INF. SWITCHES RH
163WB18X31423 GE LH Inf. Switch Harness
204WB1K5062 GE Oven Screw
711WB03X23606 GE Stove Thermostat Control Knob Assembly
1900WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
9999PM GAS QUICK GUIDE
9999WB49X21392 GE Oven Hinge Service Kit
9999PM MANUAL MINI & WD ASM
