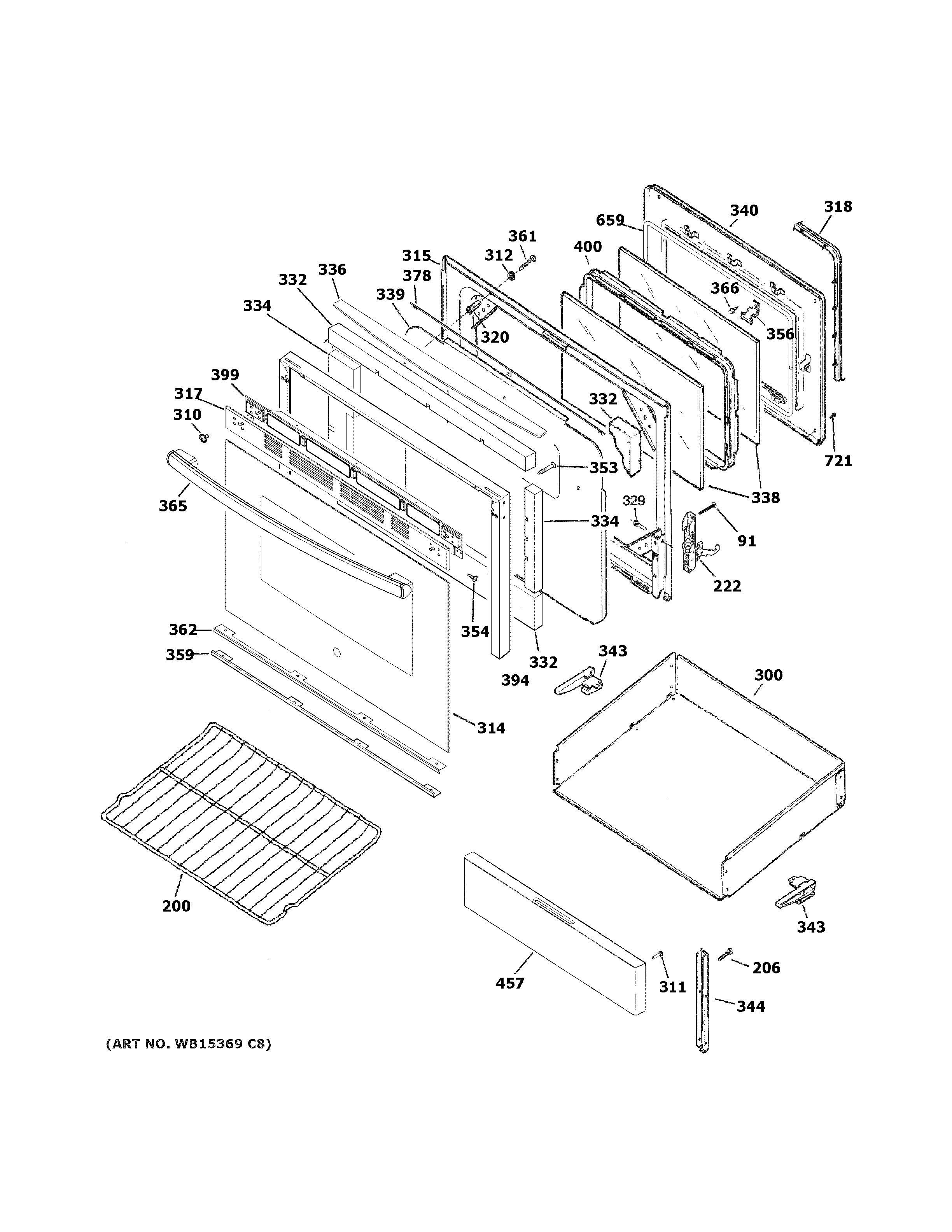

JB480DM2WW DOOR & DRAWER PARTS

JB480DM2WW DOOR & DRAWER PARTS

Written by

in

JB480DM2WW DOOR & DRAWER PARTS

Products

PositionProduct
91WB01T10008 GE Oven Screw 10-32
200OVEN RACK
206WB01K10091 GE Oven Screw
222WB10X21982 GE Oven Door Hinge
300WB58K10015 GE Oven Drawer Body
310WB01K10023 GE Oven Grommet Handle
311BUMPER
312WB02X32440 GE Washer Contoured
314WB56X25570 GE Oven Glass Door
315WB56X21344 GE Door Weld Liner
317WB07X24882 GE Oven Vent Trim
318WB35X29722 GE Oven Door Gasket Assembly
320WB02K10161 GE Oven Spacer
332WB35K10150 GE Bottom Door Oven Insulation
334WB35K10149 GE Oven Side Door Insulation
336WB35X21686 GE Door Insulation
338WB56X23809 GE Oven Range Door Crystal Window
339WB56K12 GE Oven Insulation Guard
340WB55K10033 GE Oven Welded Panel
343WB02X26847 GE Range Drawer Glider
344WB02X24742 GE Oven Drawer Bracket
353WB01K10012 GE Oven Screw 8-22 PL 1HX
354WB1K66 GE Screw
356GEN WB02K0056
359TRIM BOTTOM ASM
361WB02X32438 GE Door Handle Screw
362BARRIER DOOR
365WB15X35075 GE White Handle and End Cap
366WB1X536 GE Oven Screw
378DEFLECTOR INNER DOOR
394WB07X24881 GE Door Trim
399WB56X20809 GE Oven Backer Panel
400WB34K10087 GE Oven Window Spacer Assembly
457WB56X24797 GE Oven Drawer Panel
659WB35X21685 GE Oven Cord Fiberglass
721WB1K84 GE Oven Screw and
