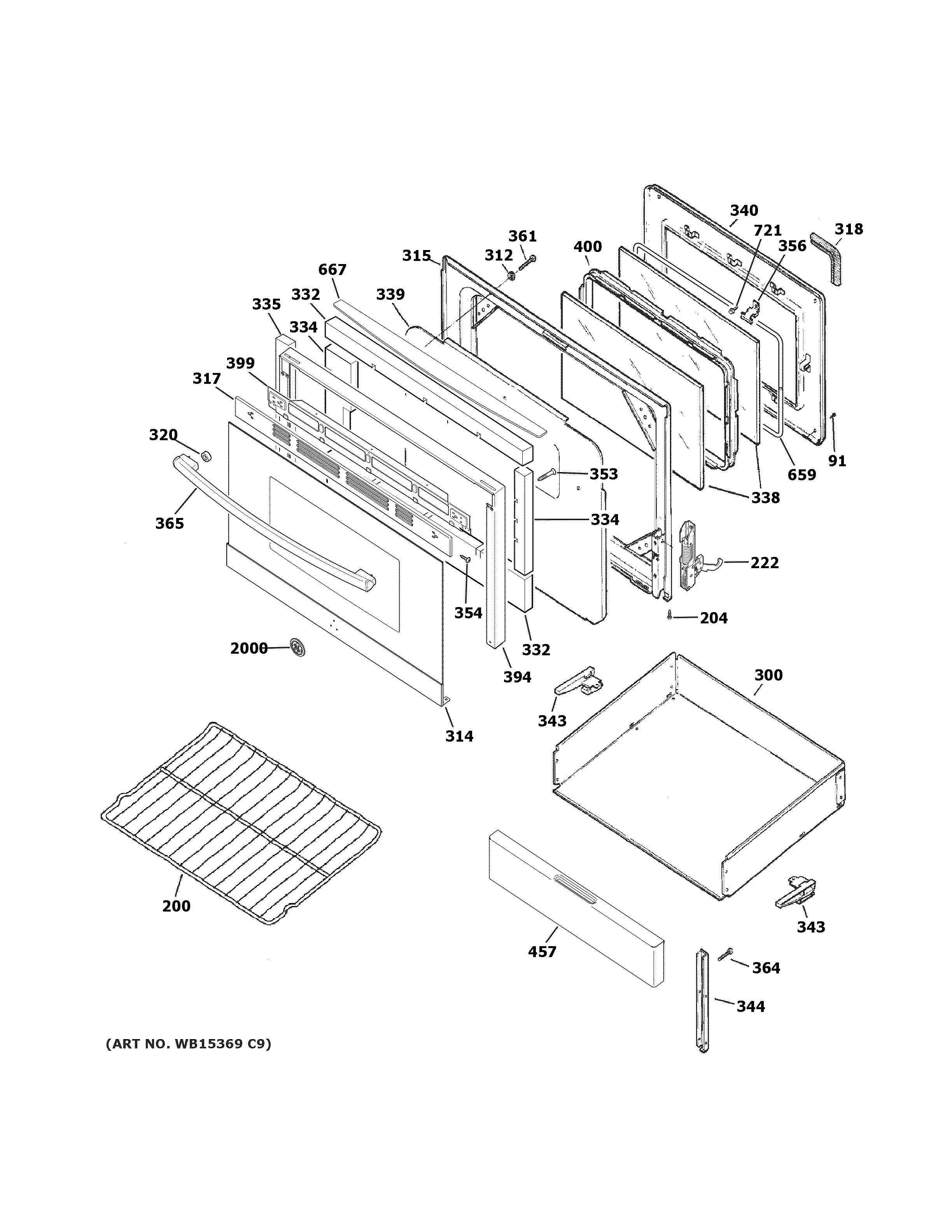

JB480SM2SS DOOR & DRAWER PARTS

JB480SM2SS DOOR & DRAWER PARTS

Written by

in

JB480SM2SS DOOR & DRAWER PARTS

Products

PositionProduct
91WB01T10008 GE Oven Screw 10-32
200OVEN RACK
204WB1K5062 GE Oven Screw
222HINGE DOOR
300WB58K10015 GE Oven Drawer Body
312WB1X119D GE Oven Range Washer
314WB56X30064 GE Oven Glass Door Assembly
315WB56X21344 GE Door Weld Liner
317WB07X26937 GE Oven Vent Trim
318WB35X29722 GE Oven Door Gasket Assembly
320WB02K10161 GE Oven Spacer
332WB35K10150 GE Bottom Door Oven Insulation
334WB35K10149 GE Oven Side Door Insulation
335WB35X28971 GE Washer Side Door Insulation
338WB56X23809 GE Oven Range Door Crystal Window
339WB56K12 GE Oven Insulation Guard
340WB55K10033 GE Oven Welded Panel
343WB02X26847 GE Range Drawer Glider
344WB02X24742 GE Oven Drawer Bracket
353WB01K10012 GE Oven Screw 8-22 PL 1HX
354WB1K62 GE Oven Door Assembly
356GEN WB02K0056
361SCR 10-16 X 2 3/4
364WB01K10047 GE Drawer Screw 10-32 HXW 9/16
365WB15X35073 GE Stainless Steel Handle
394WB07X29147 GE Oven Door Trim DD
399WB56X20809 GE Oven Backer Panel
400WB34K10087 GE Oven Window Spacer Assembly
457WB56X24829 GE Oven Drawer Panel
659WB35X21685 GE Oven Cord Fiberglass
667WB35X21686 GE Door Insulation
721WB1K84 GE Oven Screw and
2000WB02X29479 GE Oven Badge Assembly
