JB570GM3 0

Products

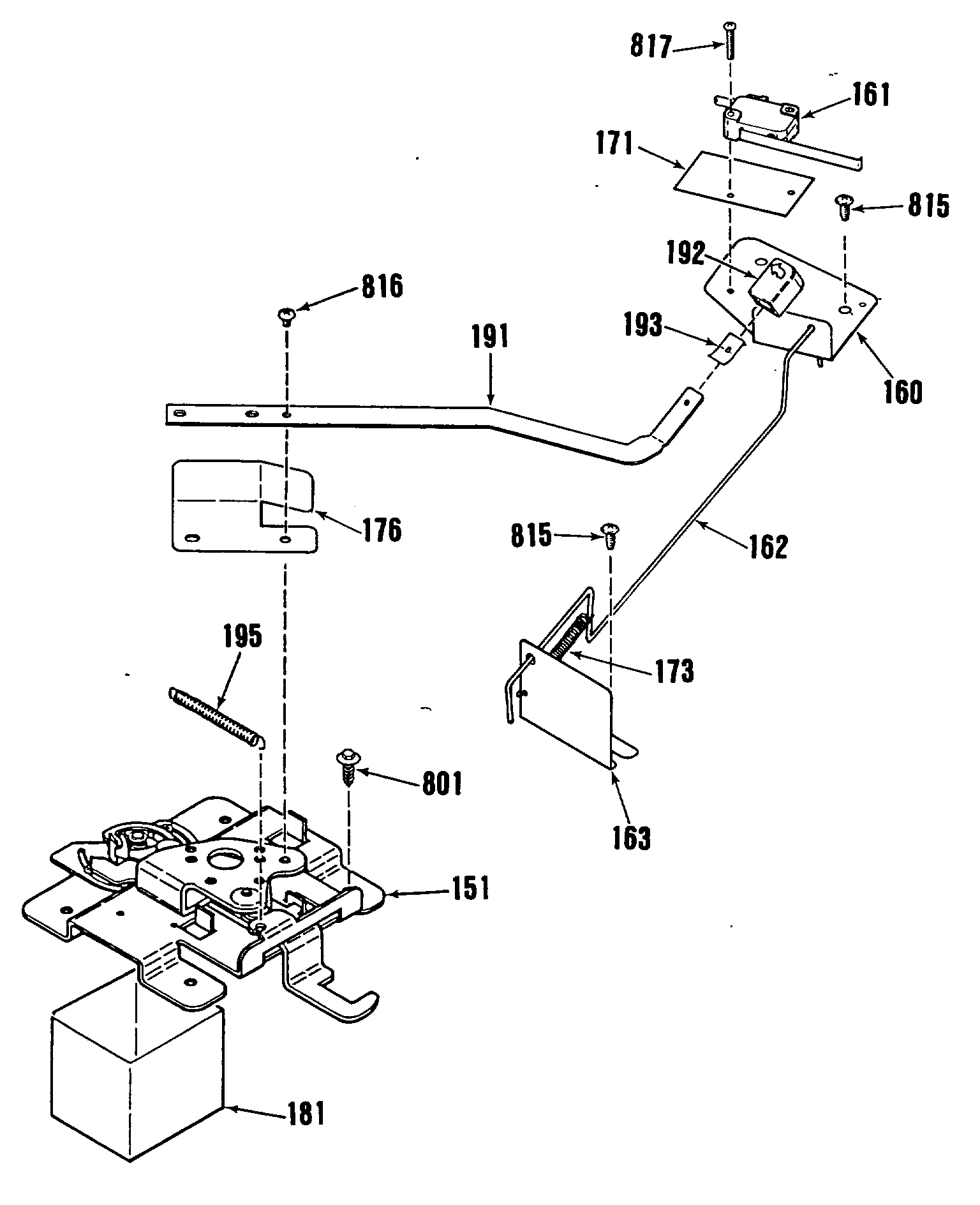

Position	Product
4	BACKGUARD FRONT PANEL
79	BURN BOX BTM BAFFLE-LT
79	BURN BOX BTM BAFFLE-RT
93	GEN WB34K5058
151	GEN WB14X0128
160	SWITCH MTG BRACKET
161	GEN WB24X0454
162	GEN WB02M0028
163	GEN WB03M0029
171	SWITCH INSULATOR
173	LOCK EXTENSION SPRING
176	GEN WB15M0002
181	GEN WB02K5097
191	UNKNOWN
192	LOCK KNOB
193	KNOB CLIP
195	LOCK SPRING
770	WB1K5072 GE Oven Screw
777	GEN WB01X1328
794	GEN WB01K5108
796	WB1K5116 GE Oven Screw
801	WB1M1 GE Oven Screw
812	WB1K5191 GE Oven Zinc FL Screw
815	SCREW
816	GEN WB01X1125
817	GEN WB01X1346
999	GEN WB18X0414
999	LIGHT SWITCH W HARNESS
999	MAINTOP WIRE HARNESS-RT
999	LOCK SWITCH HARNESS
999	GEN 31-0926
999	MAINTOP WIRE HARNESS LT
999	GEN WB18M0027
999	GEN 31-13012
999	GEN 49-8148
999	GEN WB18K5292
999	GEN WB18X0417
999	GEN WB06M0001
