JB570GM4 1 – Aparts

JB570GM4 1

Products

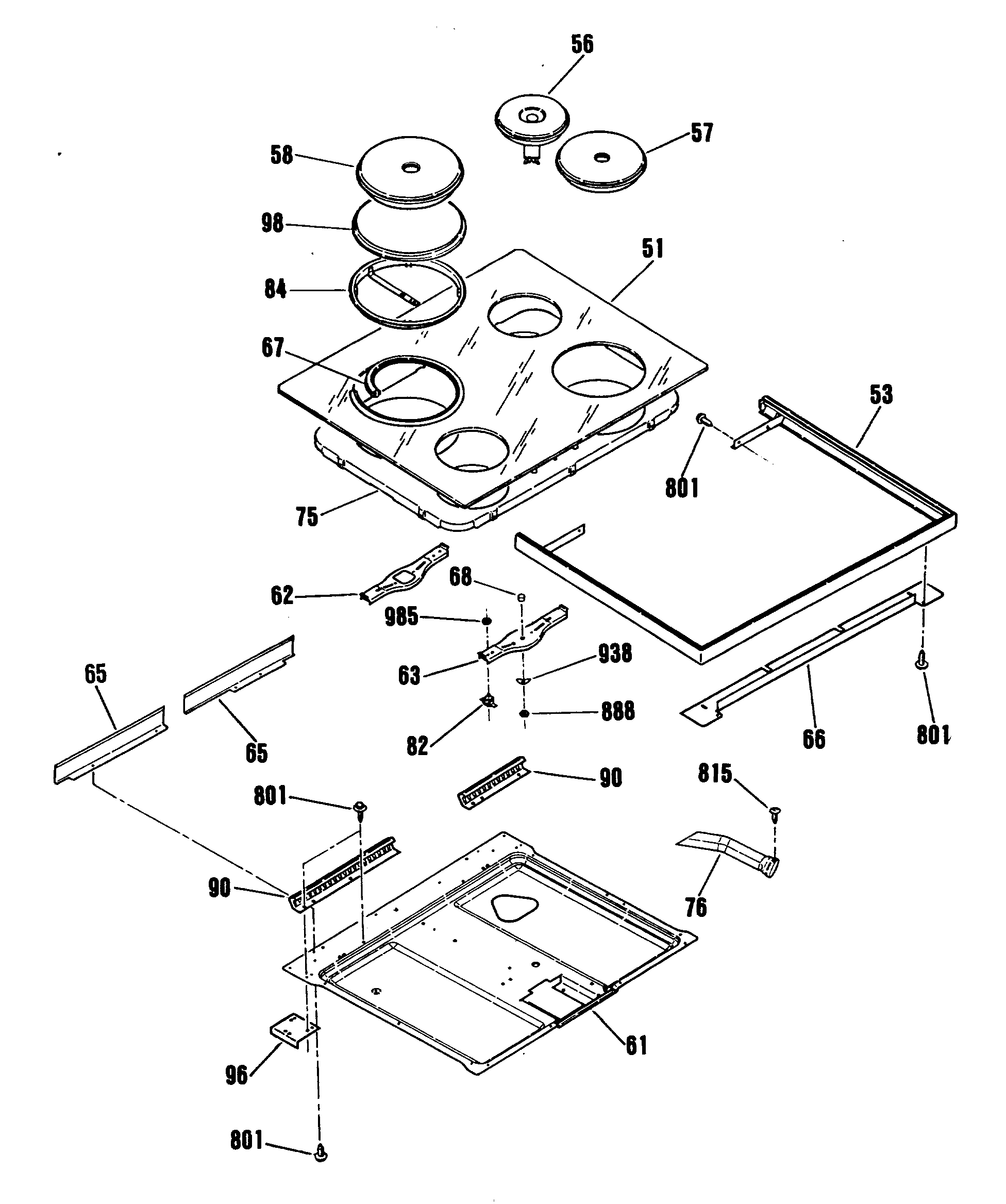

Position	Product
51	MAINTOP GLASS-BLACK
53	FRAME-COOKTOP GLASS
56	HOB ELEMENT
57	GEN WB30X0263
58	HOB ELEMENT 9"
61	GEN WB64M0017
62	ELEMENT CLAMP-LF, RR, RF
63	ELEMENT CLAMP-LR
66	UNKNOWN
67	RING GASKET 6" BLK
67	RING GASKET 7" BLK
67	RING GASKET 9" BLK
68	GEN WB02X9872
75	GEN WB63X0419
76	UNKNOWN
82	GEN WB21X0498
84	GASKET RING 7"
84	GASKET RING 6"
84	GASKET RING 9"
90	GLASS SUPPORT-RIGHT
90	GLASS SUPPORT-LEFT
96	UNKNOWN
98	GEN WB32X0111
98	GEN WB32X0112
98	GEN WB32X0110
801	WB1M1 GE Oven Screw
815	SCREW
888	"M6" PW NUT
938	GEN WB01X1306
985	M4 NUT
