JB570GM5BK 1

Products

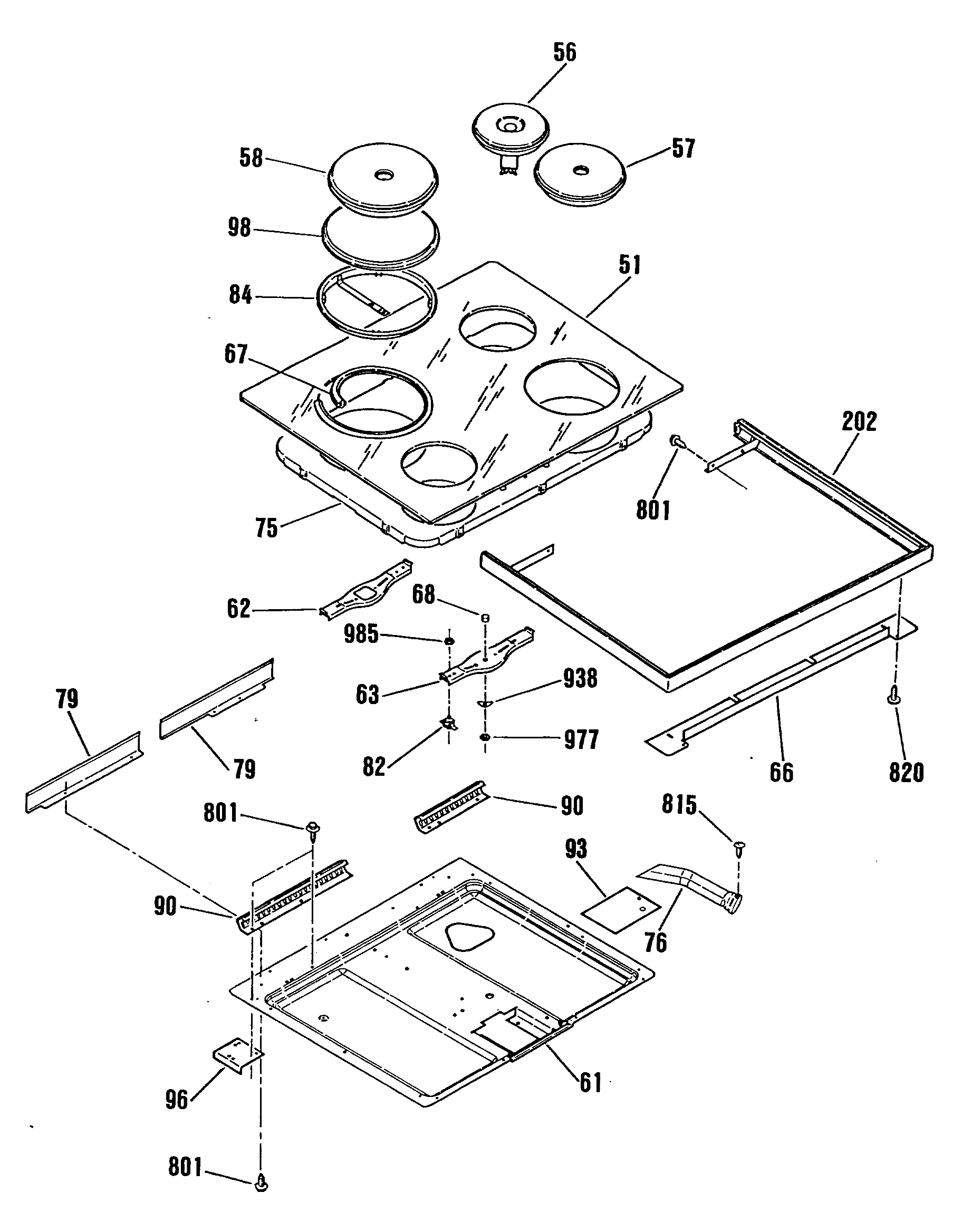

Position	Product
51	GEN WB57K5151
56	HOB ELEMENT
57	GEN WB30X0263
58	HOB ELEMENT 9"
61	GEN WB64K5062
62	ELEMENT CLAMP-LF, RR, RF
63	ELEMENT CLAMP-LR
66	UNKNOWN
67	RING GASKET 9" BLK
67	RING GASKET 7" BLK
67	RING GASKET 6" BLK
68	GEN WB02X9872
75	GEN WB63X0419
76	UNKNOWN
79	BURN BOX BTM BAFFLE-RT
79	BURN BOX BTM BAFFLE-LT
82	GEN WB21X0498
84	GASKET RING 6"
84	GASKET RING 7"
84	GASKET RING 9"
90	GLASS SUPPORT-RIGHT
90	GLASS SUPPORT-LEFT
93	GEN WB34K5058
96	UNKNOWN
98	GEN WB32X0112
98	GEN WB32X0111
98	GEN WB32X0110
202	GEN WB56K5085
801	WB1M1 GE Oven Screw
815	SCREW
820	WB1X1424D GE Oven Screw Package
938	GEN WB01X1306
977	"M6" PW NUT
985	M4 NUT
