JB571GM3 2

JB571GM3 2

Written by

in

JB571GM3 2

Products

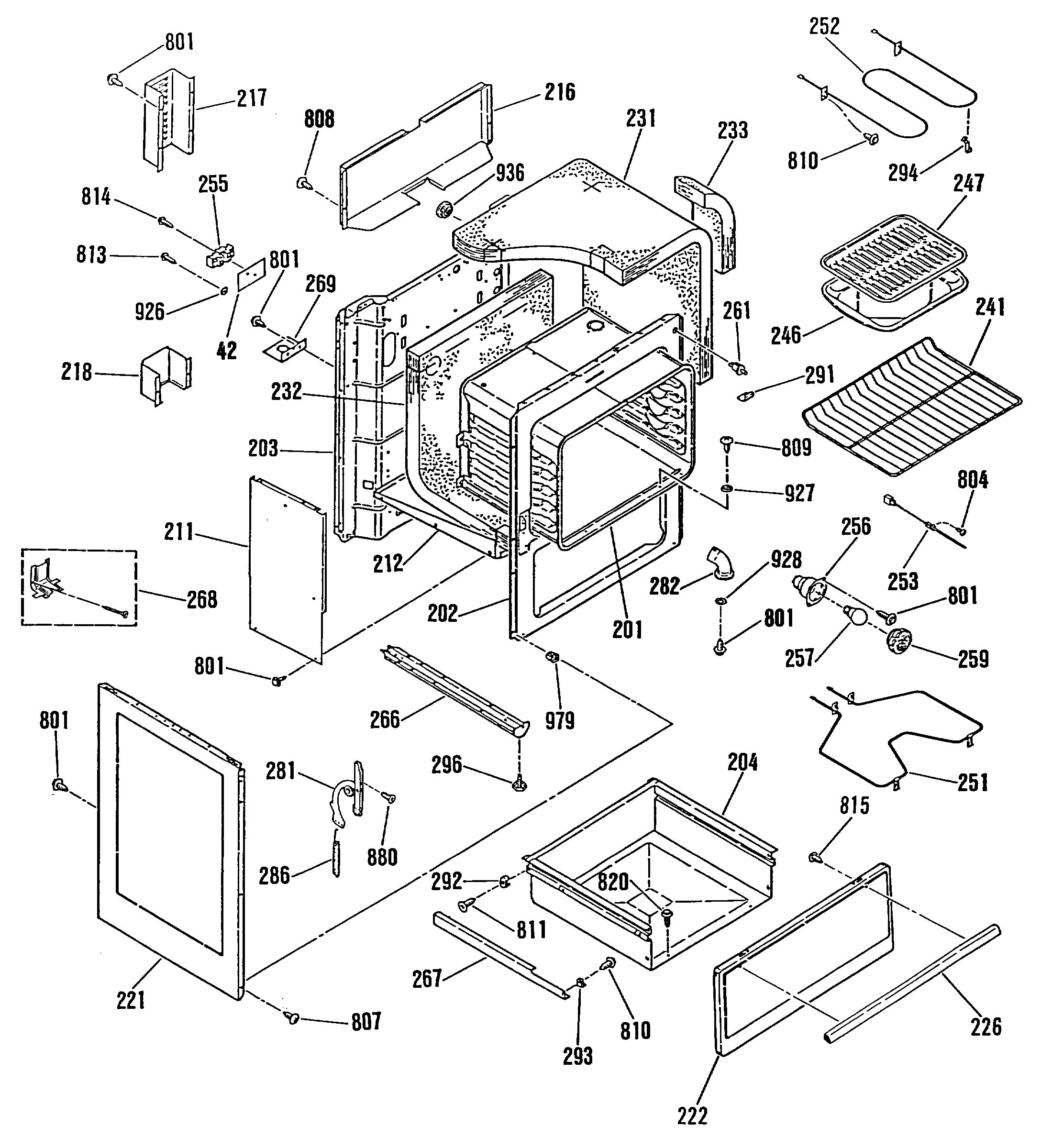

PositionProduct
42GEN WB34K5050
102OVEN DOOR INSULATION
111GEN WB55M0010
112UNKNOWN
114GEN WB02M0001
116GEN WB02X9178
117OV DR GLASS RETAINER
121OV DR OUTER GLASS
122OV DR INTERMEDIATE GLASS
123CENTER GLASS
124UNKNOWN
131WB2X9168 GE Oven Seal
132WB2X9373 GE Oven Gasket
133FELT WASHER
136OV DR HANDLE
140UNKNOWN
143UNKNOWN
146UNKNOWN
147FIBER WASHER
151GEN WB14X0128
160SWITCH MTG BRACKET
161GEN WB24X0454
162GEN WB02M0028
163GEN WB03M0029
171SWITCH INSULATOR
173LOCK EXTENSION SPRING
176GEN WB15M0002
191UNKNOWN
192GEN WB03X0831
193KNOB CLIP
195LOCK SPRING
202GEN WB63M0026
203GEN WB63M0039
204GEN WB58X0065
211GEN WB02M0038
212GEN WB02K5093
216WIRE COVER-REAR-UPP
217GEN WB02X9421
218GEN WB02X9426
221BODY SIDE-WHITE-SMOOTHJ
222LOWER FRONT PANEL-WHITE
226DOOR HANDLE
231GEN WB35M0022
232UNKNOWN
233INSULATION TOP & SIDES
241OVEN RACK-LOWER OVEN
246WB48X10056 GE Broil Pan Set, Large Porcelain
251WB44K5012 GE Oven Bake Element
252WB44X232 GE Oven Broil Element
253WB21X5301 GE Range Stove Oven Temperature Sensor Probe 6" Length
255WB17X5095 GE Black Oven Terminal
256GEN WB08M0003
257GEN BUY-LOCAL
259OVEN LAMP LENS
261SWITCH
266BASE ASM W/LEVELER
267GEN WB56M0003
268WB2X7909 GE Oven Anti-Tip Kit
269SERVICE RANGE MTG PLATE
281WB14X104 GE Stove Range Oven Right Hand Door Hinge
281WB14X103 GE Range Oven Left Door Hinge
282GEN WB38M0001
286OV DR SPRING
291GEN WB02X9152
292GEN WB02X9146
293GEN WB02X9148
294WB2X9719 GE Oven Support Bracket Clip
296GEN WB02X9188
777WB1X1149 GE Oven Screw
801WB1M1 GE Oven Screw
804WB1X681 GE Oven Screw
807WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI
809WB1X1137 GE Oven Screw
810WB1X1130 GE Oven Screw 10-32
811GEN WB01X1172
813WB1X1261 GE Oven Screw
814WB1X1258 GE Oven Screw
815SCREW
816GEN WB01X1125
817GEN WB01X1346
818GEN WB01X1250
820WB1X1424D GE Oven Screw Package
880WB1K5191 GE Oven Zinc FL Screw
926GROUND WASHER
927WB1X119D GE Oven Range Washer
928GEN WB01X1310
936BUSHING
979SPACER
