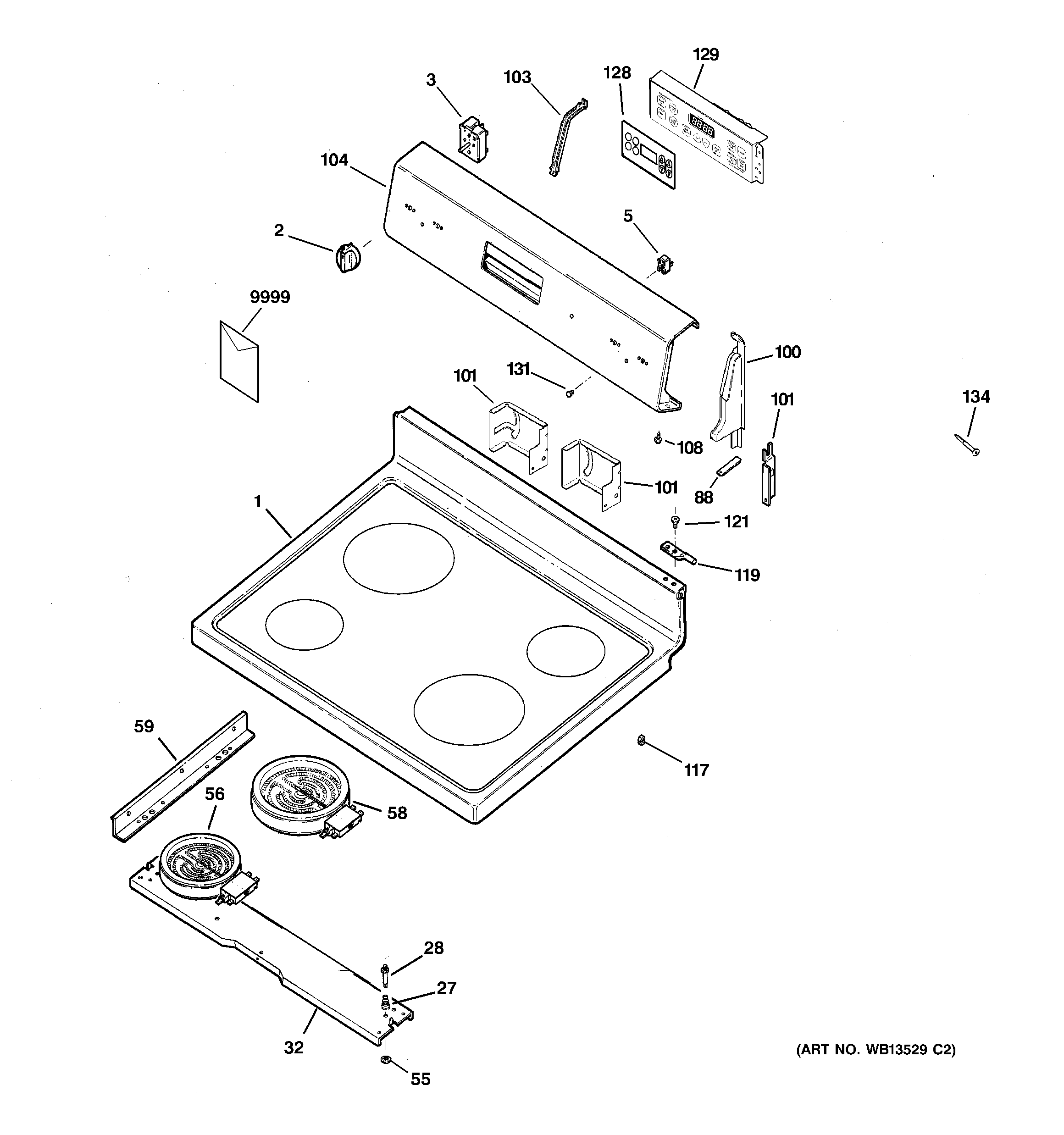

JB600WK1WW CONTROL PANEL & COOKTOP

JB600WK1WW CONTROL PANEL & COOKTOP

Written by

in

JB600WK1WW CONTROL PANEL & COOKTOP

Products

PositionProduct
1GEN WB57K10097
2WB03T10207 GE Surface Unit Knob
3WB24T10029 GE Oven Infinite Burner Switch
3WB24T10027 GE Oven Range Cooktop Top Burner Infinite Switch 2100W
5WB25K10002 GE Stove Oven Cooktop Pilot Lamp
27GEN WB09X5119
28GEN WB02X8377
32WB02K10045 GE Bottom Heater Support
55GEN WB02X8323
56WB30X38928 GE Surface 6" Radiant Element
58WB30T10045 GE Oven Range Cooktop 8" Halogen Burner Assembly
59WB02K10046 GE Oven Side Heater Brace
88GEN WB02K0062
88GEN WB02K10099
100WB07K10195 GE Oven Right White End Support
100WB07K10196 GE Oven Left End Support (White)
101GEN WB10K10002
101WB37K10004 GE Cooktop Left Bracket
101GEN WB10K10001
101WB37K10003 GE Cooktop Right Bracket
103WB02K10077 GE Control Bracket
104GEN WB36K10578
108WB01T10016 GE Oven Screw 8-18 AB Hex
108WB1X5364 GE Oven Mounting Screw
117WB02K10075 GE Oven Plastic Nail
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
128GEN WB27K10189
129CONTROL OVEN TO9 (ELEC)
131WB25T10041 GE Oven Lens
134GEN WB01X5874
9999GEN 49-88024
9999PM10X310 GE Cerama Bryte Cooktop Cleaner
9999GEN 31-21222
