JB620GR4SA CONTROL PANEL

JB620GR4SA CONTROL PANEL

Written by

in

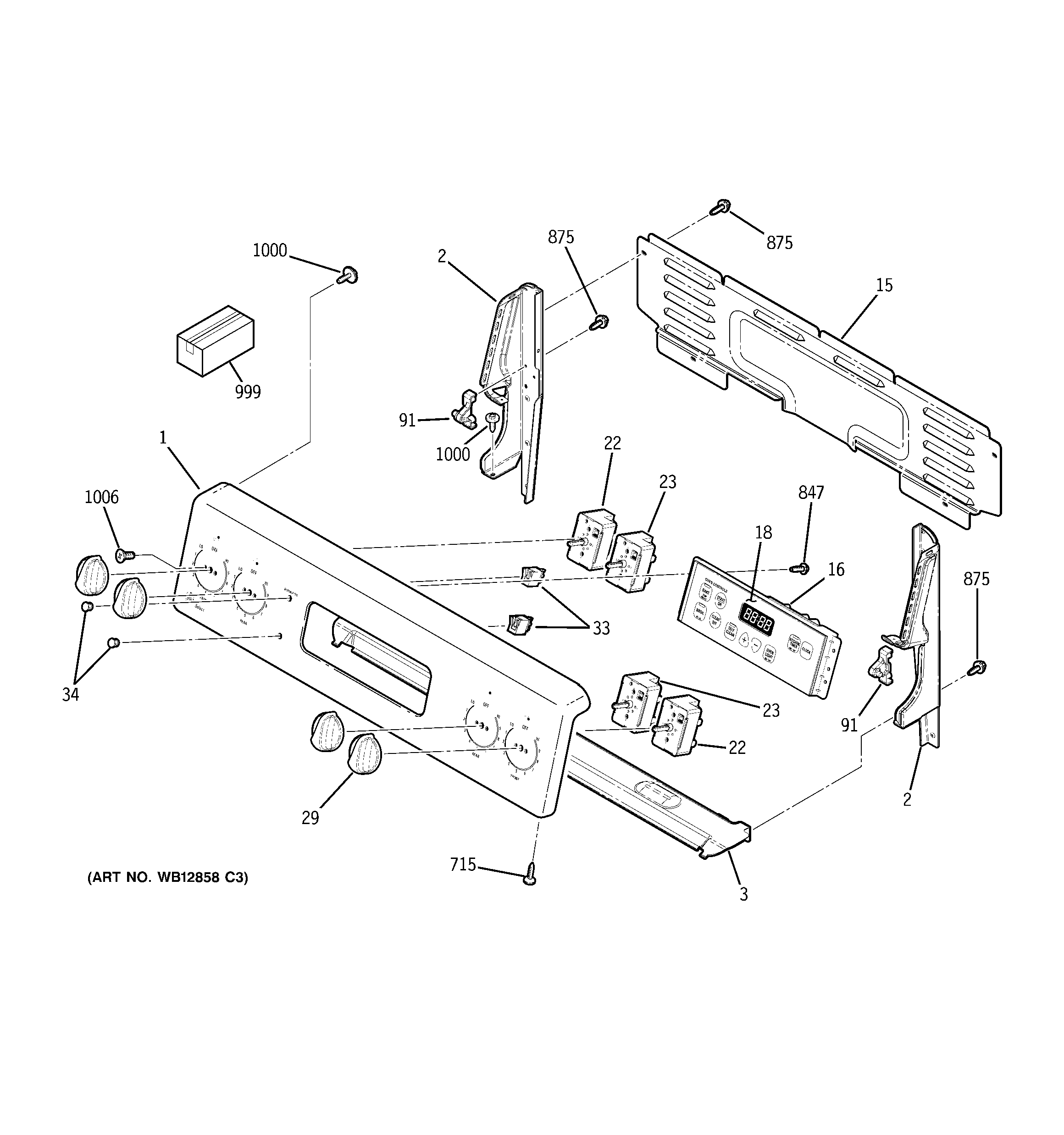

JB620GR4SA CONTROL PANEL

Products

PositionProduct
1GEN WB36T11333
2GEN WB36T11040
2WB36T11039 GE Oven End Plate Right (Black)
3GEN WB02T10525
15COVER CONTROL
16CONTROL OVEN TO9 (ELEC)
18GEN WB27T11421
22WB24T10145 GE Oven Burner Switch
23WB24T10146 GE Oven Surface Element Control
29KNOB INFINITE (BK)
33WB27T10626 GE Oven Indicator Light Pilot
34WB25T10041 GE Oven Lens
91WB10T10116 GE Range Top Hinge Pin
715WB1X500D GE Oven Screw Package
847WB01T10103 GE Oven Screw 10-16 AB HXW .532
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
999GEN 31-15025
999GEN 49-80632
999GEN 31-10816
999INSTR INSTALL OVN DOOR
999PM10X310 GE Cerama Bryte Cooktop Cleaner
1000WS02X10087 GE Screws 10-32 GX HXW 7/16 S
1006WB01T10053 GE Oven 8-32 TPT FLR Screw
