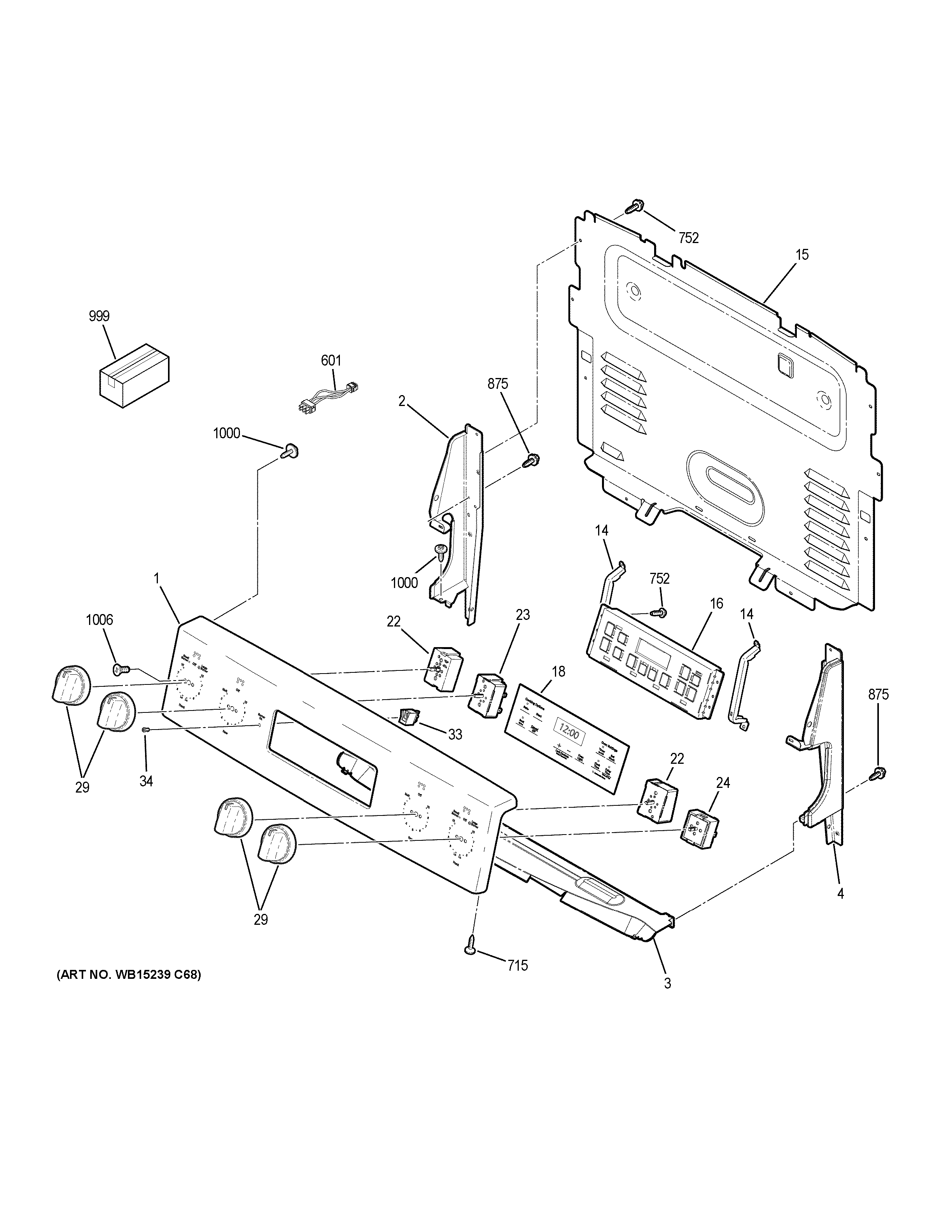

| 1 | LABEL WIRE DIAGRAM |
| 1 | WB07X31284 GE Control Panel Trim |
| 2 | WB07X27830 GE Oven End Plate Left (Black) |
| 3 | WB34X28565 GE Oven Heat Backguard Shield |
| 4 | WB07X27826 GE Oven Right End Plate (Black) |
| 14 | WB34X31189 GE Oven Control Panel Bracket |
| 15 | WB34X29564 GE Oven Back Control Panel Cover |
| 16 | CONTROL OVEN TO9 (ELEC) |
| 18 | WB07X26647 GE Oven Graphics Faceplate (Black) |
| 22 | WB24T10029 GE Oven Infinite Burner Switch |
| 23 | WB24T10146 GE Oven Surface Element Control |
| 24 | WB24T10025 SWITCH INFIN(2500W) |
| 29 | WB03X24904 GE Oven Infinite Control Knob |
| 33 | WB25X20005 GE Oven Light Indicator Pilot |
| 34 | WB25X24023 GE Oven Indicator Light Lens |
| 601 | WB18X31191 GE Maintop and Infinite Switch |
| 715 | WB1K60 GE Screw 8-18 |
| 752 | WB1K5200 GE Oven Screw 340531 |
| 875 | WH2X930 GE Screw |
| 999 | PM OWNERS MANUAL |
| 999 | PM INSTRUCTIONS INSTALL |
| 999 | PM QUICK GUIDE |
| 999 | INSTRUCTION INSTALL |
| 999 | PM INSTALL INSTRUCTIONS |
| 999 | PM MANUAL MINI & WD ASM |
| 1000 | WB01T10126 GE Oven Screw 8-18 AB HXW 1/2 S |
| 1006 | WB01X23501 GE Oven Screw 8-32 Tapping Flat Head |
