JB625GK5SA CONTROL PANEL

JB625GK5SA CONTROL PANEL

Written by

in

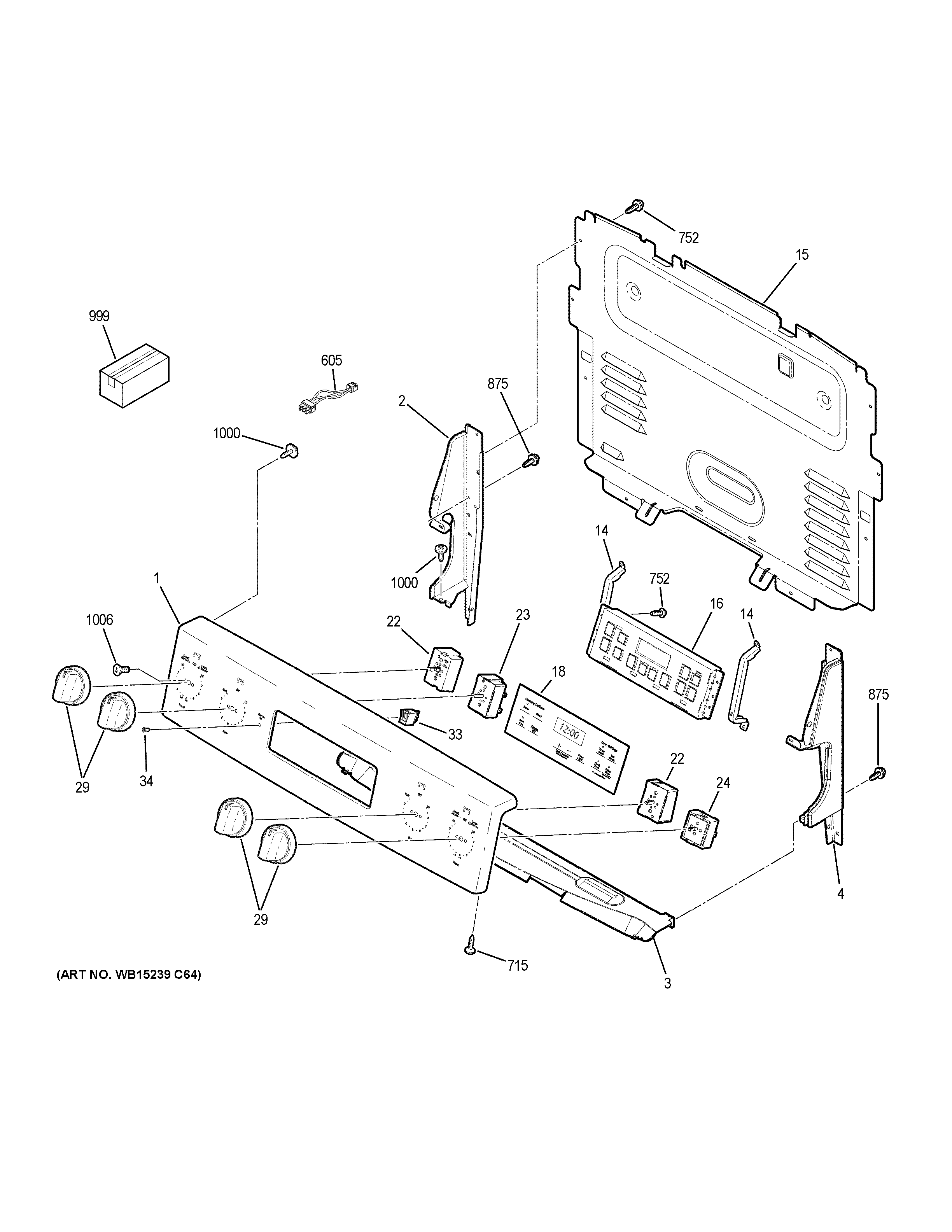

JB625GK5SA CONTROL PANEL

Products

PositionProduct
1WB07X32015 GE Oven Control Panel Trim Assembly WM
1LABEL WIRE DIAGRAM
2WB07X27830 GE Oven End Plate Left (Black)
3WB34X28565 GE Oven Heat Backguard Shield
4WB07X27826 GE Oven Right End Plate (Black)
14WB34X31189 GE Oven Control Panel Bracket
15WB34X29564 GE Oven Back Control Panel Cover
16CONTROL OVEN TO9 (ELEC)
18WB07X26647 GE Oven Graphics Faceplate (Black)
22WB24T10029 GE Oven Infinite Burner Switch
23WB24T10146 GE Oven Surface Element Control
24WB24T10025 SWITCH INFIN(2500W)
29WB03X24904 GE Oven Infinite Control Knob
33WB25X20005 GE Oven Light Indicator Pilot
34WB25X24023 GE Oven Indicator Light Lens
605WB18X31191 GE Maintop and Infinite Switch
715WB1K60 GE Screw 8-18
752WB1K5200 GE Oven Screw 340531
875WH2X930 GE Screw
999INSTRUCTION INSTALL
999PM OWNERS MANUAL
999PM QUICK GUIDE
999PM INSTALL INSTRUCTIONS
999PM MANUAL MINI & WD ASM
999PM INSTRUCTIONS INSTALL
1000WB01T10126 GE Oven Screw 8-18 AB HXW 1/2 S
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
