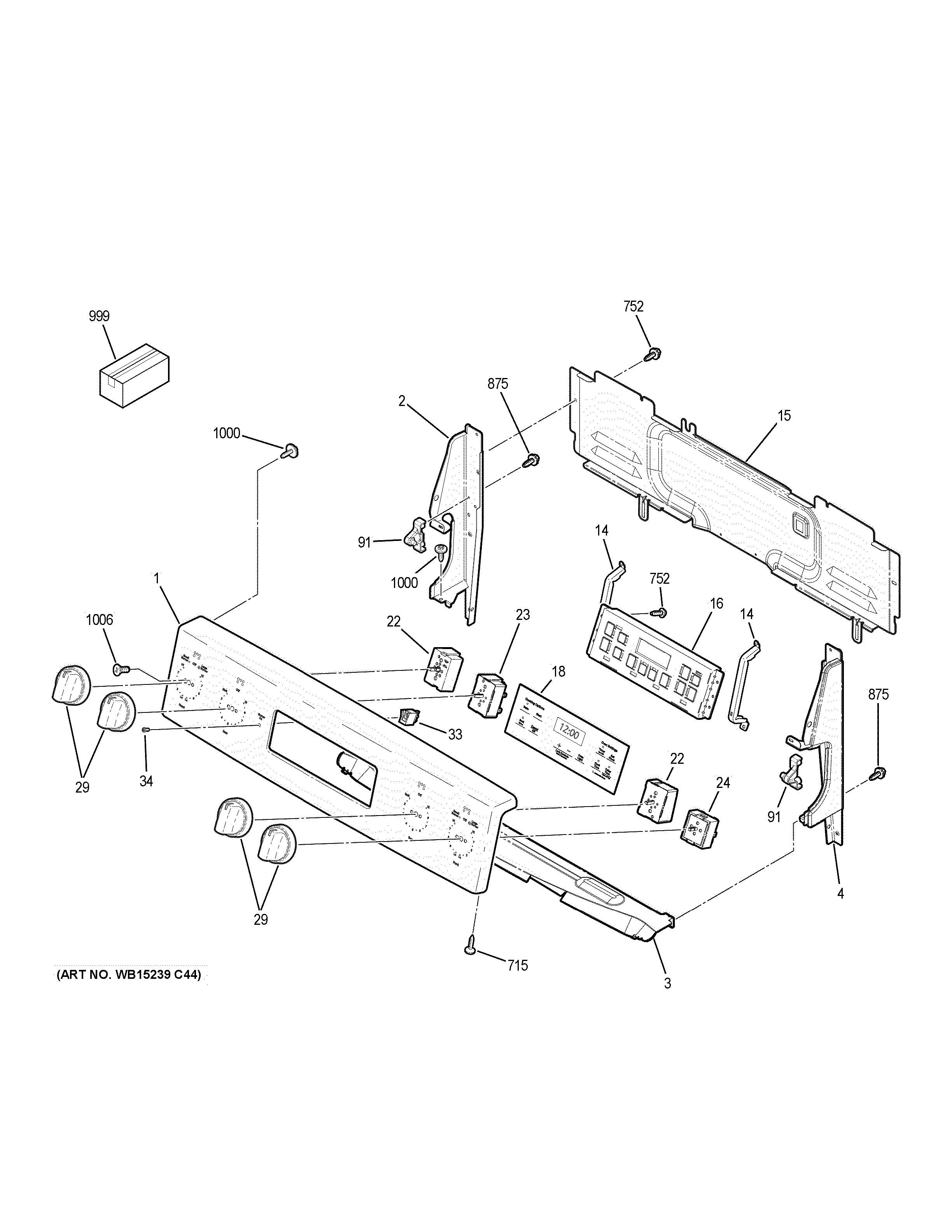

| 1 | LABEL WIRE DIAGRAM |
| 1 | WB07X31192 GE Oven Stainless Steel Control Panel Trim Assembly |
| 2 | WB07X27830 GE Oven End Plate Left (Black) |
| 3 | WB34X25151 GE Oven Heat Back Shield Guard |
| 4 | PLATE END RH (BK) |
| 14 | WB34X26635 GE Control Bracket |
| 15 | WB34X24901 GE Control Cover |
| 16 | CONTROL OVEN TO9 (ELEC) |
| 18 | WB07X26647 GE Oven Graphics Faceplate (Black) |
| 22 | WB24T10029 GE Oven Infinite Burner Switch |
| 23 | WB24T10146 GE Oven Surface Element Control |
| 24 | WB24T10025 SWITCH INFIN(2500W) |
| 29 | WB03X24904 GE Oven Infinite Control Knob |
| 33 | WB25X20005 GE Oven Light Indicator Pilot |
| 34 | WB25T10103 GE Oven Lens |
| 91 | WB10T10116 GE Range Top Hinge Pin |
| 715 | WB1K60 GE Screw 8-18 |
| 752 | WB1K5200 GE Oven Screw 340531 |
| 875 | WH2X930 GE Screw |
| 999 | PM INSTRUCTIONS INSTALL |
| 999 | INSTRUCTION INSTALL |
| 999 | PM QUICK GUIDE |
| 999 | PM OWNERS MANUAL |
| 999 | PM INSTALL INSTRUCTIONS |
| 999 | PM MANUAL MINI & WD ASM |
| 1000 | WB01T10126 GE Oven Screw 8-18 AB HXW 1/2 S |
| 1006 | WB01X23501 GE Oven Screw 8-32 Tapping Flat Head |
