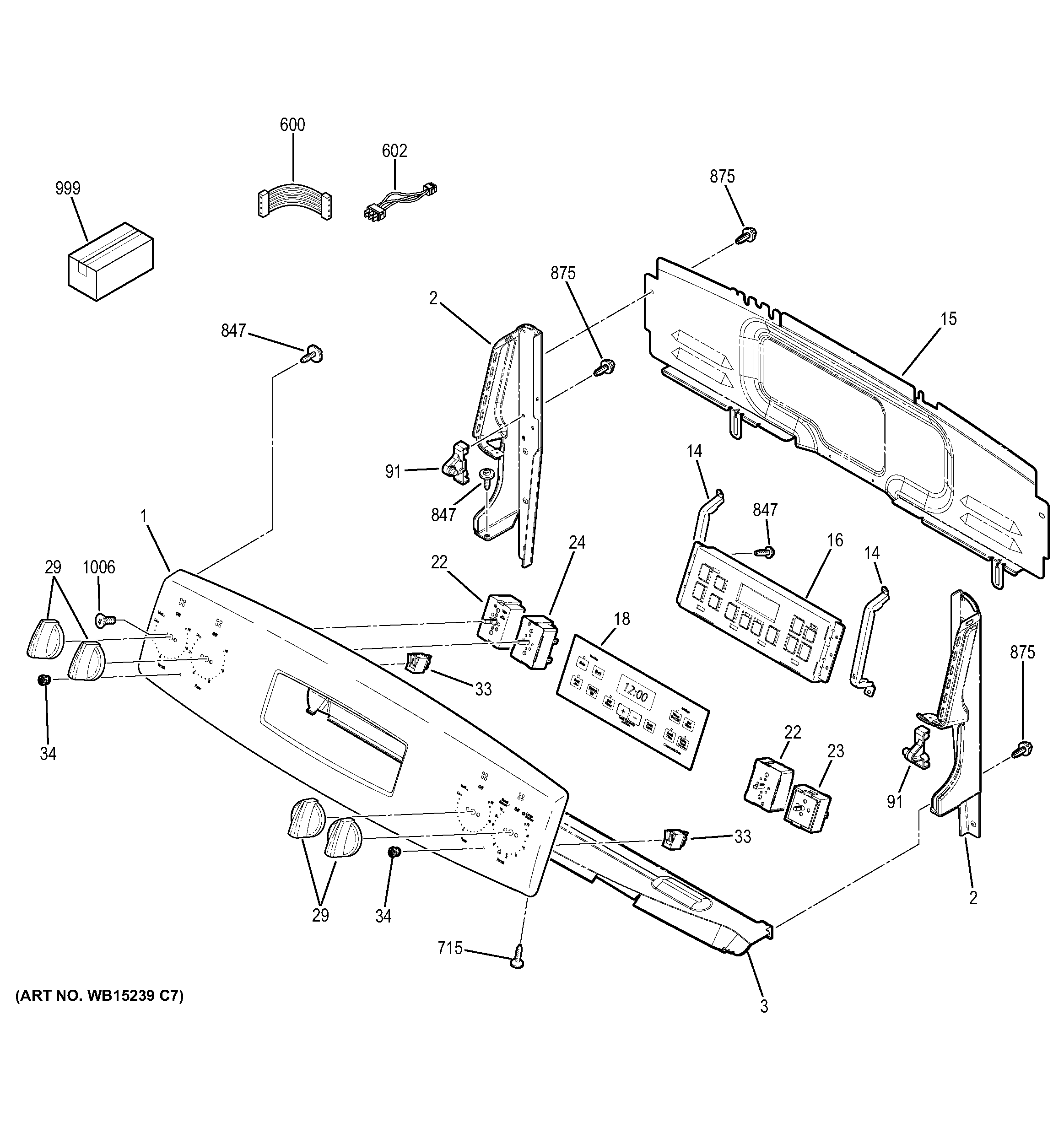

JB630DF1BB CONTROL PANEL

Products

Position	Product
1	GEN WB36X20171
1	LABEL WIRE DIAGRAM
2	WB36T11204 GE Oven Right End Plate
2	WB07X27823 GE End Plate LT (Black)
3	WB02X20711 GE Oven Heat Shield Back Guard
14	WB34X20080 GE Control Bracket
15	COVER CONTROL
16	CONTROL OVEN TO9 (ELEC)
18	WB27T11511 GE Oven Black Faceplate Graphics
22	WB24T10029 GE Oven Infinite Burner Switch
23	WB24T10153 GE Oven Infinite Switch Control
24	WB24T10146 GE Oven Surface Element Control
29	WB03T10332 GE Stove Burner Control Knob
33	WB25K10010 GE Oven Light Indicator Pilot
34	WB25T10103 GE Oven Lens
91	WB10T10116 GE Range Top Hinge Pin
600	WB18X31230 GE Main Top and Infinite Switch
602	WB18T10466 GE Oven 18-Inch Lead Wire
715	WD2X432 GE Dishwasher Screw
847	WB01T10126 GE Oven Screw 8-18 AB HXW 1/2 S
875	WH2X930 GE Screw
999	INSTR INSTALL OVN DOOR
999	GEN 31-10816
999	GEN 49-80632
999	GEN 31-10781
999	GEN 31-15025
1006	WB01T10053 GE Oven 8-32 TPT FLR Screw
