JB640DR5WW CONTROL PANEL

JB640DR5WW CONTROL PANEL

Written by

in

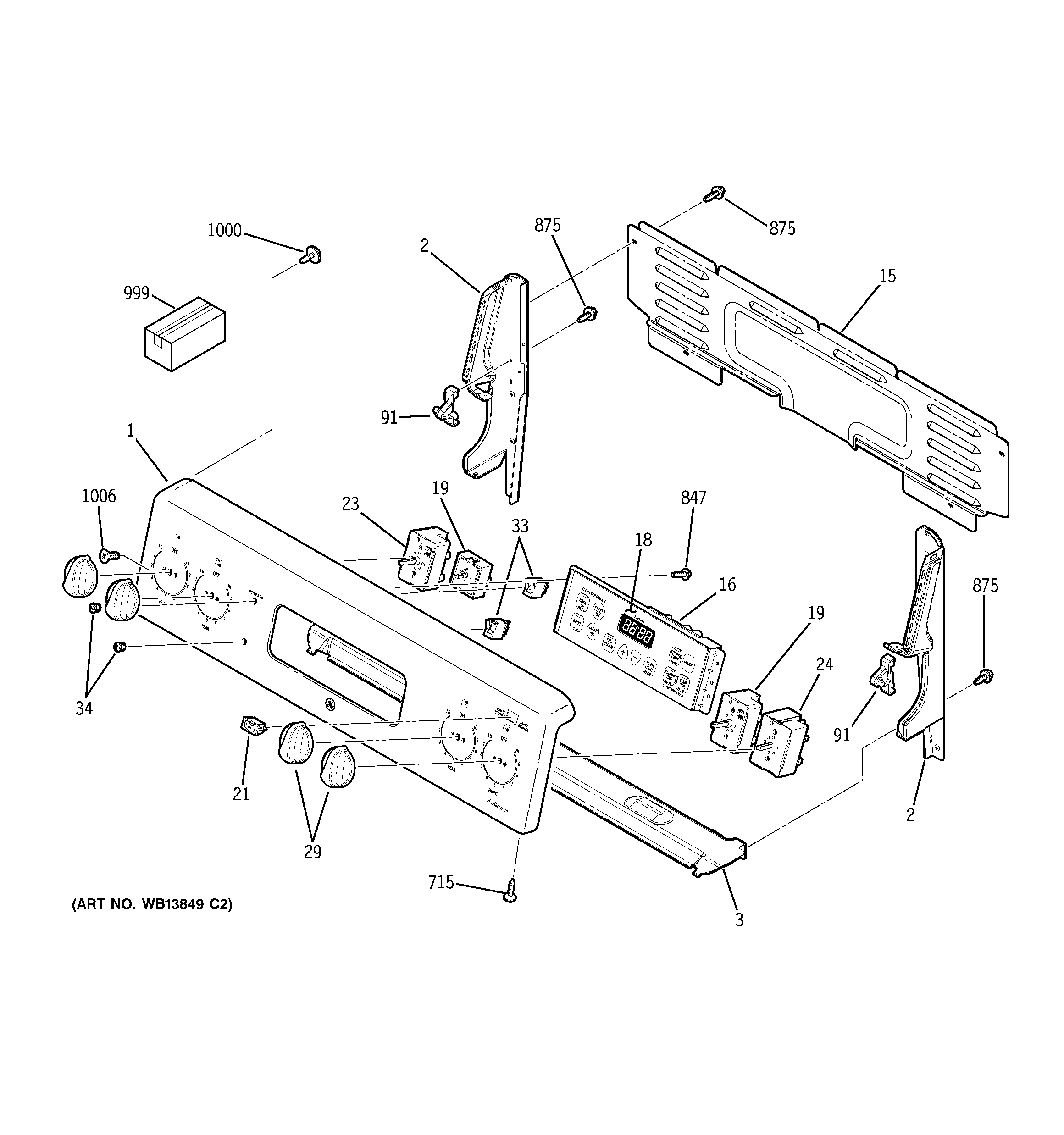

JB640DR5WW CONTROL PANEL

Products

PositionProduct
1GEN WB36T11295
1GEN WB36T11237
1GEN WB36T11236
2WB36T11039 GE Oven End Plate Right (Black)
2GEN WB36T11042
2GEN WB36T11040
2GEN WB36T11051
2GEN WB36T11043
2GEN WB36T11050
3GEN WB02T10525
15COVER CONTROL
16CONTROL OVEN TO9 (ELEC)
18FACEPLATE GRAPHICS
18FACEPLATE GRAPHICS
18FACEPLATE GRAPHICS
19WB24T10145 GE Oven Burner Switch
21GEN WB24T10171
21WB24T10165 GE Oven Rocker Switch Element Black
21WB24T10167 GE Oven Rocker Switch Element (White)
23WB24T10146 GE Oven Surface Element Control
24INFINITE CONTROL SWITCH
29WB03T10282 GE Oven Infinite Knob (White)
29KNOB INFINITE (BK)
29WB03T10285 GE Oven Infinite Control Knob
33WB27T10626 GE Oven Indicator Light Pilot
34WB25T10041 GE Oven Lens
91WB10T10116 GE Range Top Hinge Pin
715WD2X432 GE Dishwasher Screw
715WD2X434 GE Dishwasher Trim Screw
715WD2X433 GE Dishwasher Trim Screw
847WB1X5364 GE Oven Mounting Screw
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
999PM10X310 GE Cerama Bryte Cooktop Cleaner
999GEN 31-15029
999INSTR INSTALL OVN DOOR
999GEN 31-10816
999GEN 49-80632
1000WS02X10087 GE Screws 10-32 GX HXW 7/16 S
1006WB01T10053 GE Oven 8-32 TPT FLR Screw
