JB640SP1SS CONTROL PANEL

JB640SP1SS CONTROL PANEL

Written by

in

JB640SP1SS CONTROL PANEL

Products

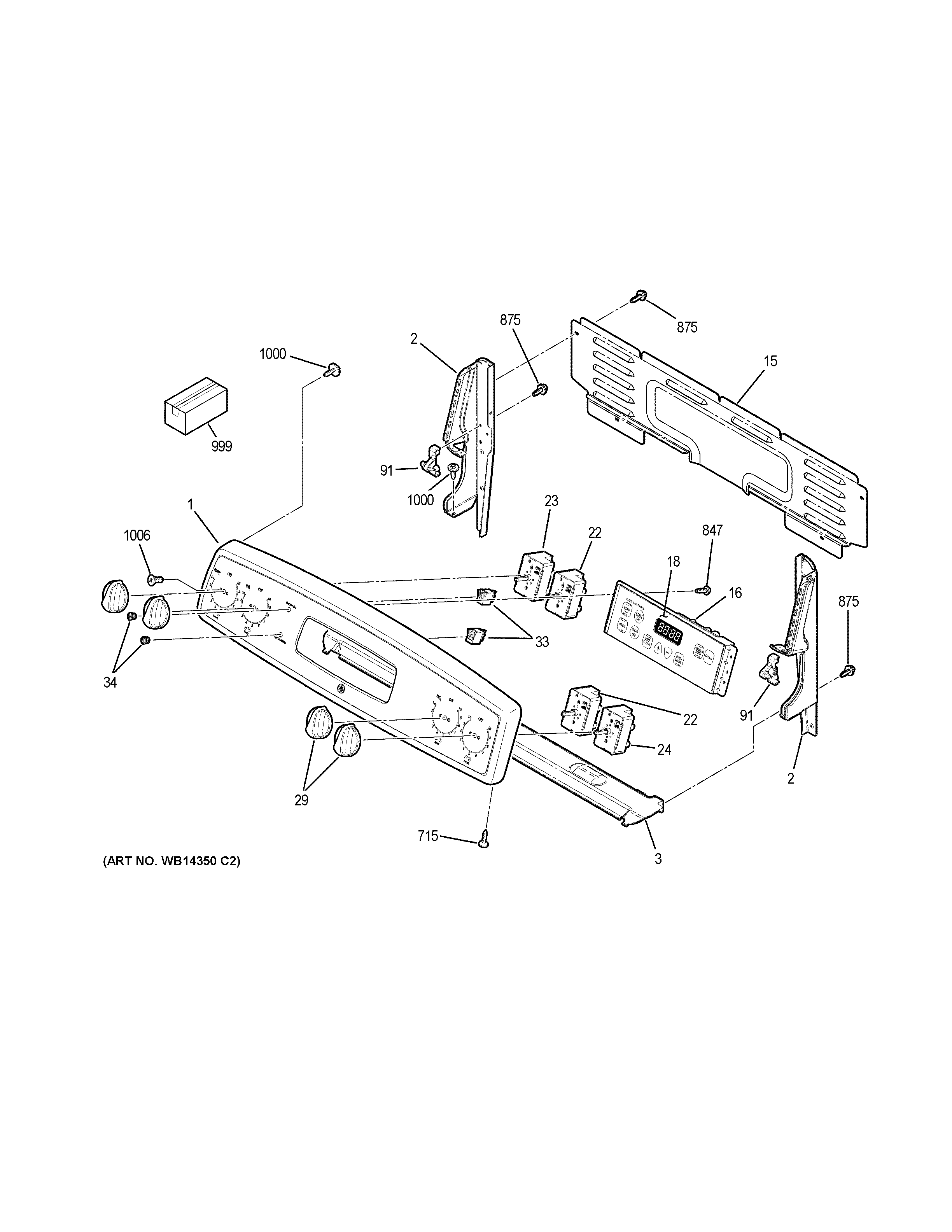

PositionProduct
1GEN WB36T11181
2GEN WB36T11040
2WB36T11039 GE Oven End Plate Right (Black)
3SHIELD HEAT BKGD
15GEN WB02T10499
16CONTROL OVEN TO9 (ELEC)
18WB27T11005 GE Oven Faceplate Graphics Black
22WB24T10145 GE Oven Burner Switch
23WB24T10146 GE Oven Surface Element Control
24INFINITE CONTROL SWITCH
29KNOB INFINITE (BK)
33WB27T10626 GE Oven Indicator Light Pilot
34WB25T10041 GE Oven Lens
91WB10T10116 GE Range Top Hinge Pin
715WD2X432 GE Dishwasher Screw
847WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
875WH2X930 GE Screw
999PM MANUAL USE & CARE
1000WB01T10016 GE Oven Screw 8-18 AB Hex
1006WB01T10053 GE Oven 8-32 TPT FLR Screw
