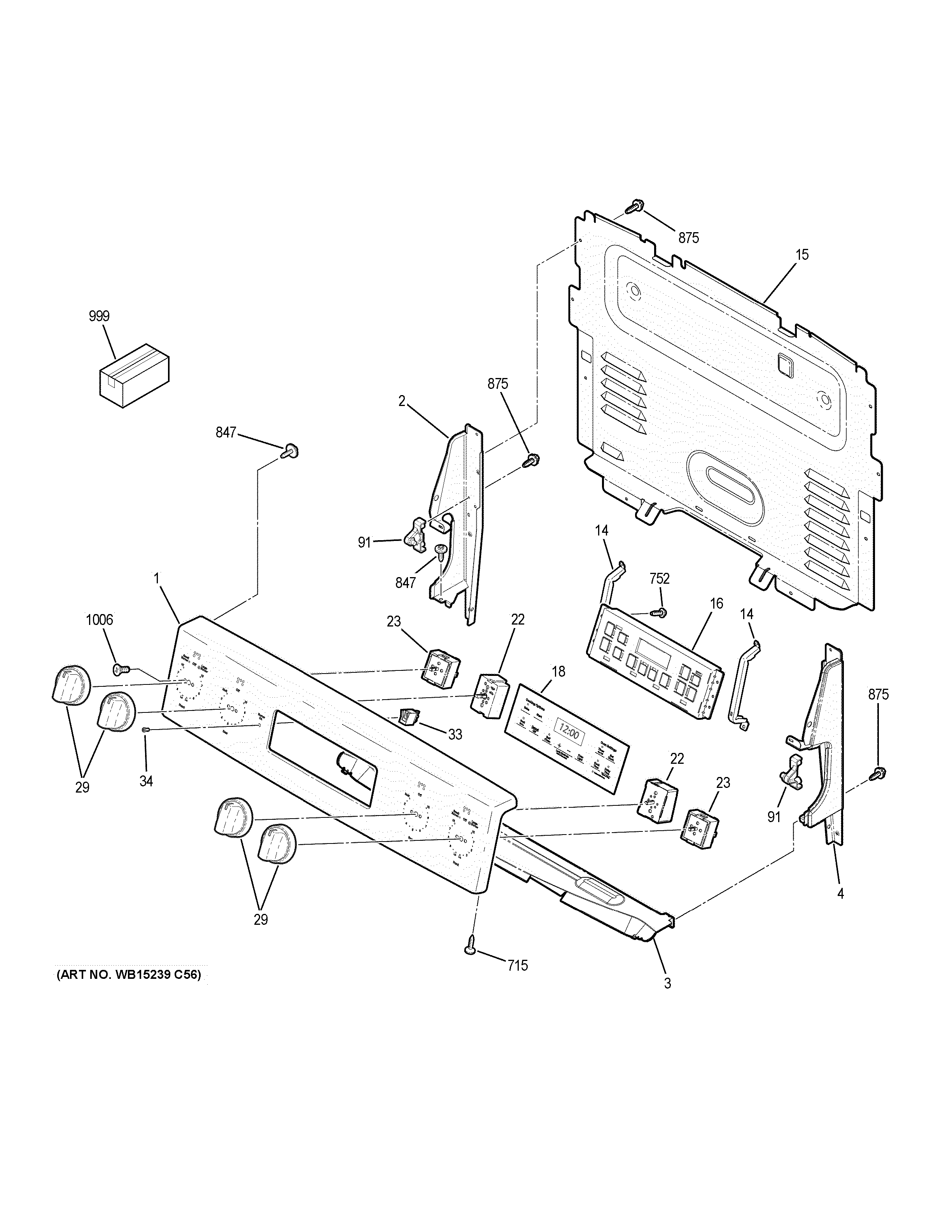

| 1 | LABEL WIRE DIAGRAM |
| 1 | WB07X32013 GE Control Panel Trim Assembly |
| 2 | WB07X27829 GE Oven End Plate Left (White) |
| 3 | WB34X28565 GE Oven Heat Backguard Shield |
| 4 | WB07X27825 GE Oven Right End Plate (White) |
| 14 | WB34X31189 GE Oven Control Panel Bracket |
| 15 | WB34X29564 GE Oven Back Control Panel Cover |
| 16 | CONTROL OVEN TO9 (ELEC) |
| 18 | WB07X44619 GE Faceplate White Graphics |
| 22 | WB24T10029 GE Oven Infinite Burner Switch |
| 23 | WB24X25013 GE Oven Control Infinite Switch |
| 29 | WB03X24952 GE Range White Knob |
| 33 | WB25X20005 GE Oven Light Indicator Pilot |
| 34 | WB25X24023 GE Oven Indicator Light Lens |
| 91 | WB10T10116 GE Range Top Hinge Pin |
| 715 | WB1K58 GE Screw 8-18 |
| 752 | WB1K5200 GE Oven Screw 340531 |
| 847 | WB01T10016 GE Oven Screw 8-18 AB Hex |
| 875 | WH2X930 GE Screw |
| 999 | PM QUICK GUIDE |
| 999 | INSTRUCTION INSTALL |
| 999 | PM INSTRUCTIONS INSTALL |
| 999 | PM OWNERS MANUAL |
| 999 | PM INSTALL INSTRUCTIONS |
| 999 | PM MANUAL MINI & WD ASM |
| 1006 | WB01X23501 GE Oven Screw 8-32 Tapping Flat Head |
