JB645DK5WW CONTROL PANEL

JB645DK5WW CONTROL PANEL

Written by

in

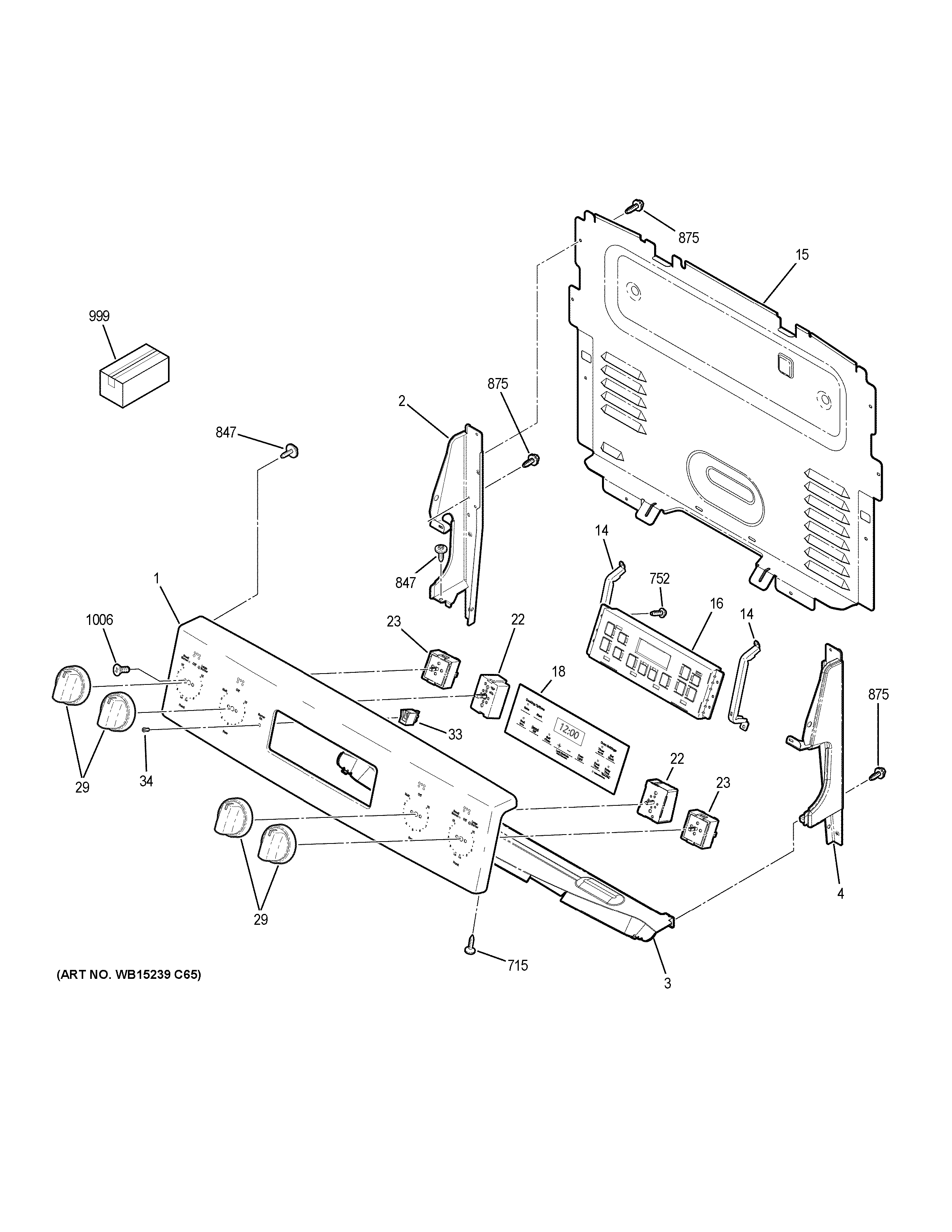

JB645DK5WW CONTROL PANEL

Products

PositionProduct
1LABEL WIRE DIAGRAM
1WB07X32013 GE Control Panel Trim Assembly
2WB07X27829 GE Oven End Plate Left (White)
3WB34X28565 GE Oven Heat Backguard Shield
4WB07X27825 GE Oven Right End Plate (White)
14WB34X31189 GE Oven Control Panel Bracket
15WB34X29564 GE Oven Back Control Panel Cover
16CONTROL OVEN TO9 (ELEC)
18WB07X44619 GE Faceplate White Graphics
22WB24T10029 GE Oven Infinite Burner Switch
23WB24X25013 GE Oven Control Infinite Switch
29WB03X24952 GE Range White Knob
33WB25X20005 GE Oven Light Indicator Pilot
34WB25X24023 GE Oven Indicator Light Lens
715WB1K58 GE Screw 8-18
752WB1K5200 GE Oven Screw 340531
847WB01T10016 GE Oven Screw 8-18 AB Hex
875WH2X930 GE Screw
999PM QUICK GUIDE
999INSTRUCTION INSTALL
999PM INSTRUCTIONS INSTALL
999PM OWNERS MANUAL
999PM INSTALL INSTRUCTIONS
999PM MANUAL MINI & WD ASM
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
