JB645DT1BB CONTROL PANEL

JB645DT1BB CONTROL PANEL

Written by

in

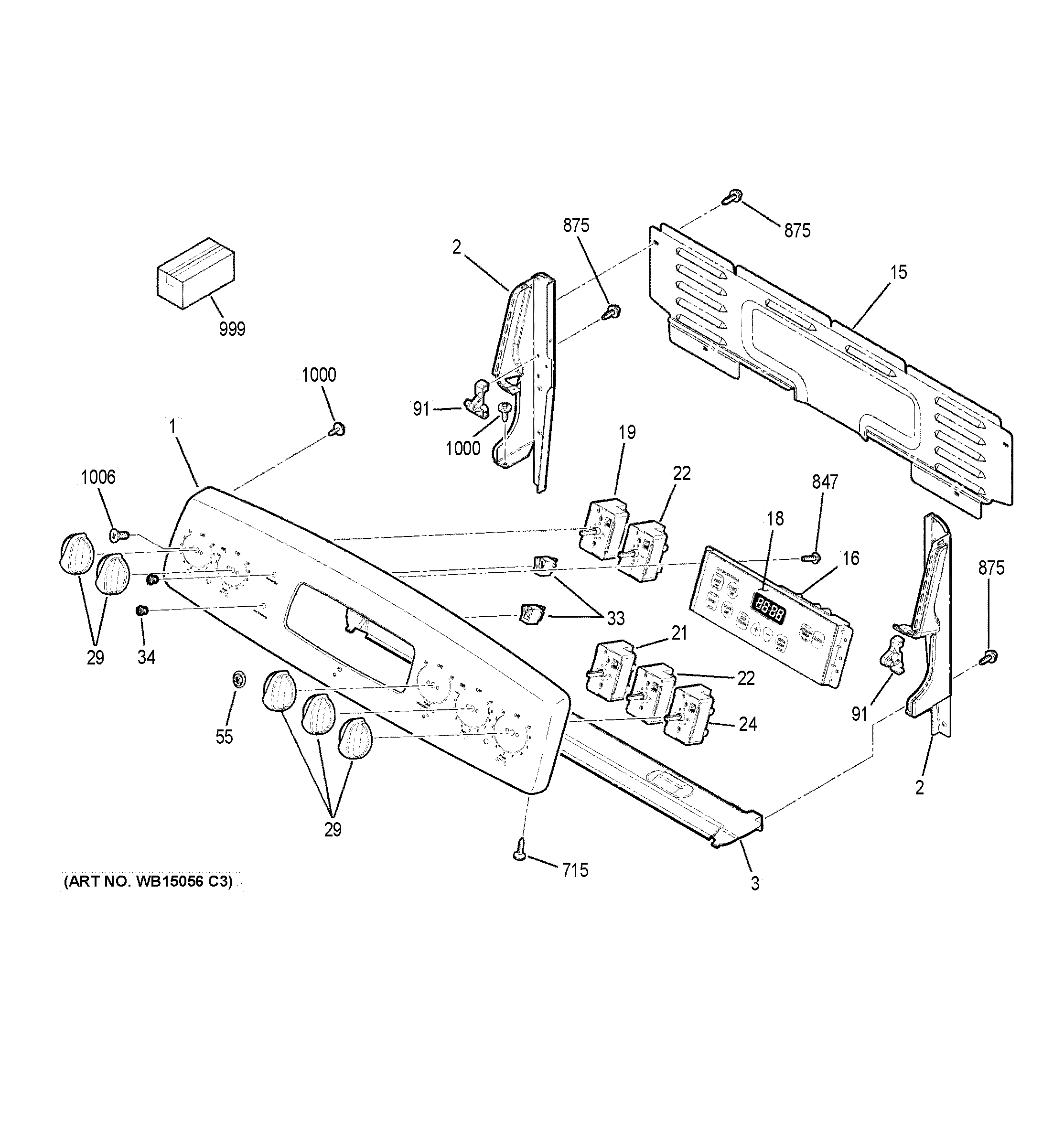

JB645DT1BB CONTROL PANEL

Products

PositionProduct
1LABEL WIRE DIAGRAM
1TRIM & BRACKET ASM
2WB36T11039 GE Oven End Plate Right (Black)
2GEN WB36T11040
3GEN WB02T10525
15COVER CONTROL
16WB27T11349 GE Oven Control
18FACEPLATE GRAPHICS
19INFINITE CONTROL SWITCH
21WB24T10168 GE Oven Infinite Switch
22WB24T10145 GE Oven Burner Switch
24WB24T10153 GE Oven Infinite Switch Control
29KNOB INFINITE (BK)
33WB27T10626 GE Oven Indicator Light Pilot
34WB25T10041 GE Oven Lens
55WB02T10359 GE Oven Badge
91GEN WB10T10125
715WD2X432 GE Dishwasher Screw
847WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
875WH2X930 GE Screw
999PM10X310 GE Cerama Bryte Cooktop Cleaner
999PM INSTALL INSTRUCTIONS
999PM OWNERS MANUAL
999PM INSTRUCTIONS INSTALL
999INSTRUCTION INSTALL
999PM INSTRUCTIONS INSTALL
999PM MINI MANUALS
1000WB01T10016 GE Oven Screw 8-18 AB Hex
1006WB01T10053 GE Oven 8-32 TPT FLR Screw
