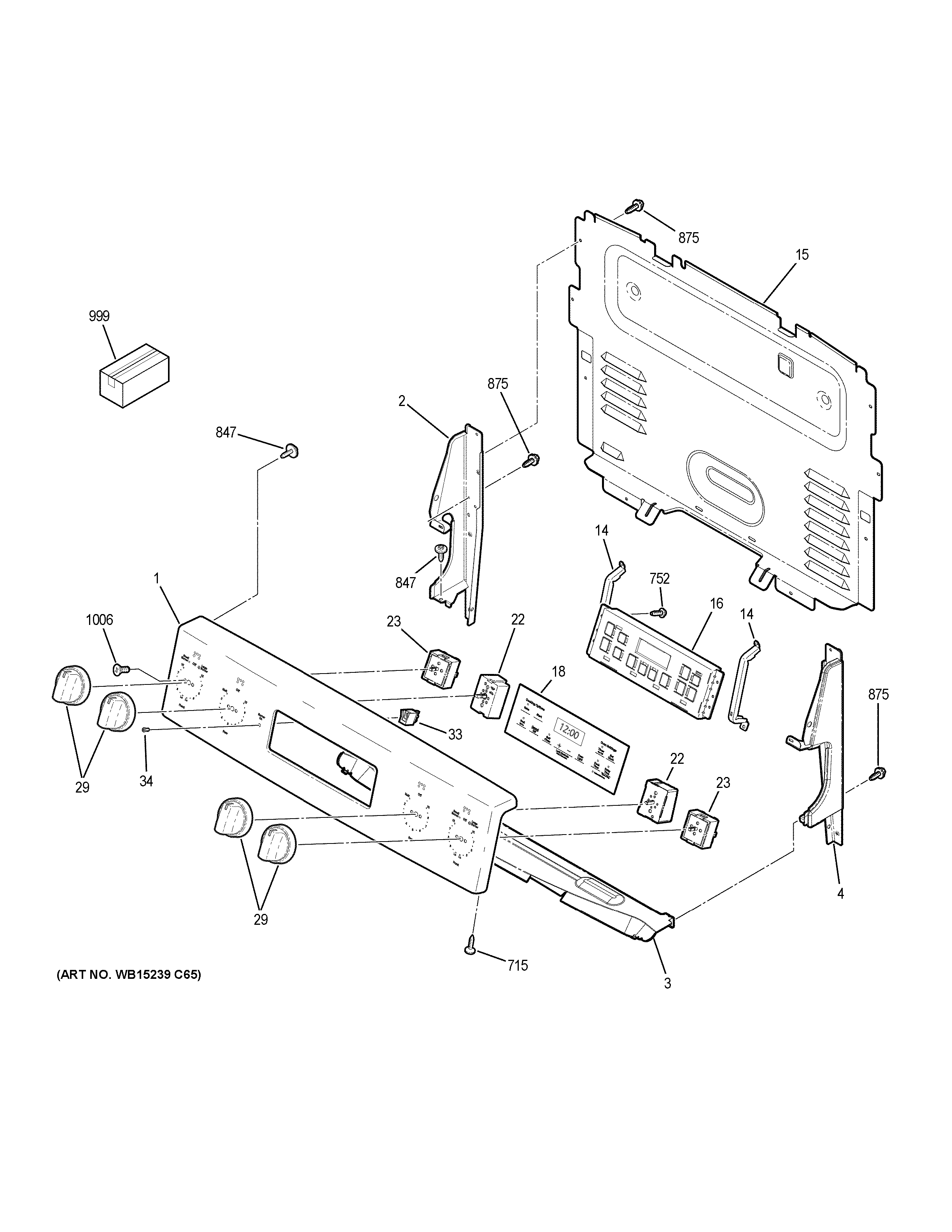

JB645EKAES CONTROL PANEL

JB645EKAES CONTROL PANEL

Written by

in

JB645EKAES CONTROL PANEL

Products

PositionProduct
1WB07X36089 GE Control Panel Trim and Bracket
2WB07X29534 GE Oven Left Hand End Plate
3WB34X28565 GE Oven Heat Backguard Shield
4WB07X29535 GE Oven Right Hand End Plate
14WB34X31189 GE Oven Control Panel Bracket
15WB34X29564 GE Oven Back Control Panel Cover
16CONTROL OVEN TO9
18WB07X26713 GE Oven Faceplate Graphics
22WB24T10022 GE Oven Infinite Switch
23WB24X25013 GE Oven Control Infinite Switch
29WB03X24965 GE Oven Infinite Control Knob
33WB25X20005 GE Oven Light Indicator Pilot
34WB25X24023 GE Oven Indicator Light Lens
715WB1K60 GE Screw 8-18
752WB1K5200 GE Oven Screw 340531
847WB01T10016 GE Oven Screw 8-18 AB Hex
875WH2X930 GE Screw
999INSTRUCTION INSTALL
999PM INSTALL INSTRUCTIONS
999PM MINI MANUAL AND WIRING
999PM OWNERS MANUAL
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
