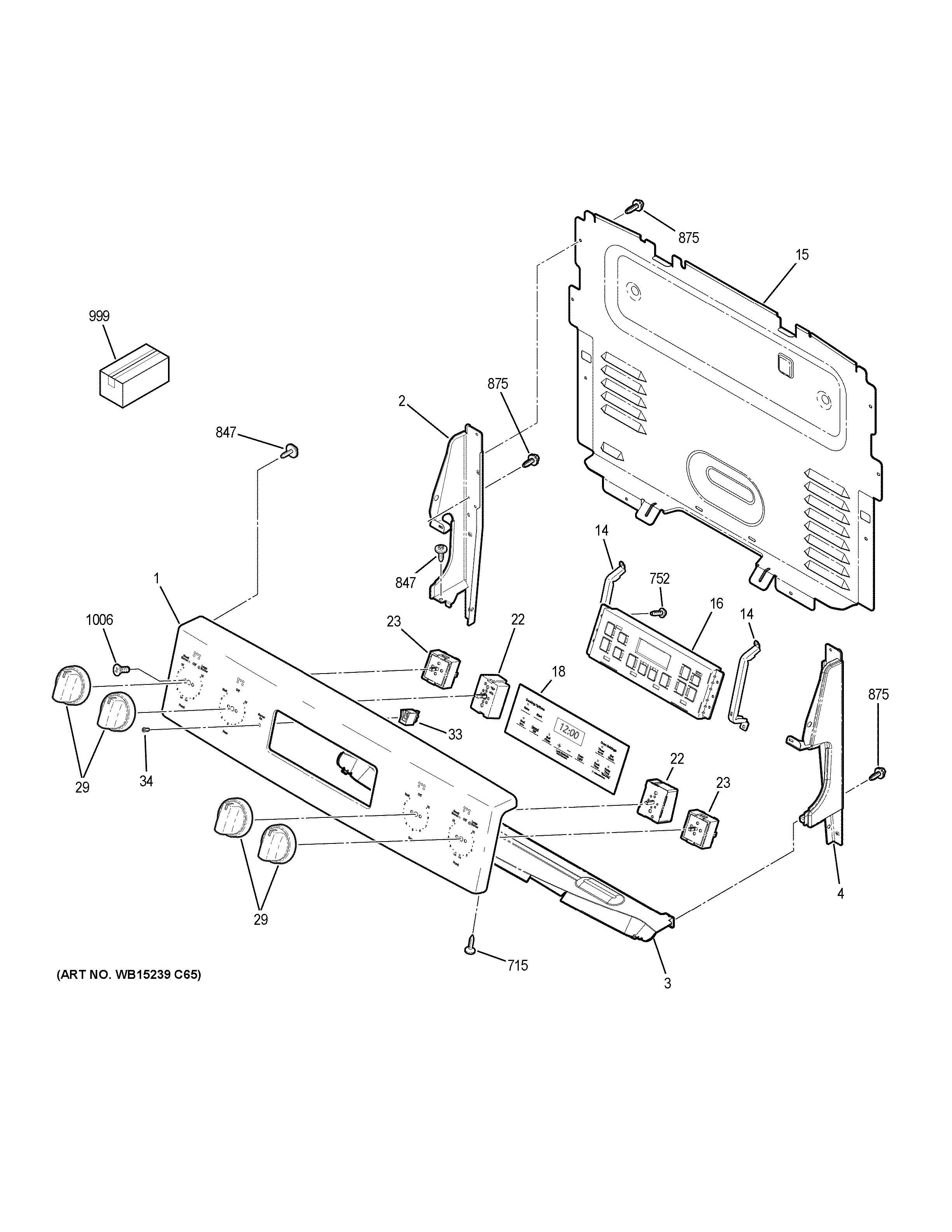

JB645RKASS CONTROL PANEL

Products

Position	Product
1	WB07X36105 GE Stainless Control Panel Trim
2	WB07X27830 GE Oven End Plate Left (Black)
3	WB34X28565 GE Oven Heat Backguard Shield
4	WB07X27826 GE Oven Right End Plate (Black)
14	WB34X31189 GE Oven Control Panel Bracket
15	WB34X29564 GE Oven Back Control Panel Cover
16	CONTROL OVEN TO9
18	WB07X26647 GE Oven Graphics Faceplate (Black)
22	WB24T10022 GE Oven Infinite Switch
23	WB24X25013 GE Oven Control Infinite Switch
29	WB03X24965 GE Oven Infinite Control Knob
33	WB25X20005 GE Oven Light Indicator Pilot
34	WB25T10103 GE Oven Lens
715	WB1K60 GE Screw 8-18
752	WB1K5200 GE Oven Screw 340531
847	WB01T10016 GE Oven Screw 8-18 AB Hex
875	WH2X930 GE Screw
999	PM INSTALL INSTRUCTIONS
999	INSTRUCTION INSTALL
999	PM MINI MANUAL AND WIRING
999	PM OWNERS MANUAL
1006	WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
