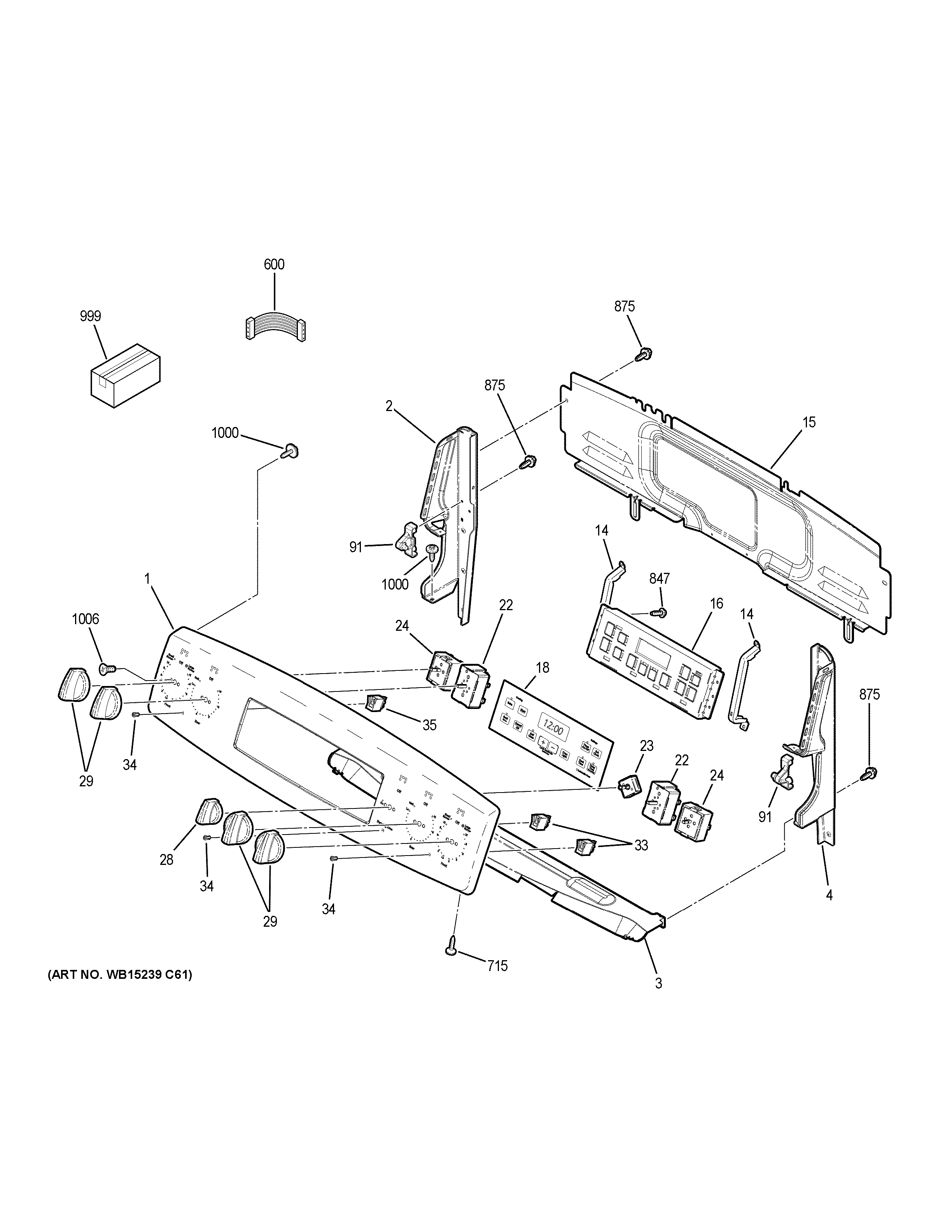

| 1 | TRIM & BRACKET ASM (BK) |
| 1 | GEN 229C6237P001 |
| 2 | WB07X27823 GE End Plate LT (Black) |
| 3 | WB02X28994 GE Heat Shield |
| 4 | WB36T11204 GE Oven Right End Plate |
| 14 | WB34X20080 GE Control Bracket |
| 15 | COVER CONTROL |
| 16 | CONTROL OVEN TO9 (ELEC) |
| 18 | GEN WB07X20168 |
| 22 | WB24T10029 GE Oven Infinite Burner Switch |
| 23 | GEN WB24X21736 |
| 24 | WB24T10153 GE Oven Infinite Switch Control |
| 28 | GEN WB03X21411 |
| 29 | WB03T10332 GE Stove Burner Control Knob |
| 33 | WB25K10010 GE Oven Light Indicator Pilot |
| 34 | WB25X24023 GE Oven Indicator Light Lens |
| 35 | WB25X20005 GE Oven Light Indicator Pilot |
| 91 | WB10T10116 GE Range Top Hinge Pin |
| 600 | WB18X20001 GE Infinite Wire Harness |
| 715 | WD2X432 GE Dishwasher Screw |
| 847 | WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI |
| 875 | WH2X930 GE Screw |
| 999 | PM OWNERS MANUAL |
| 999 | PM MANUAL MINI & WD ASM |
| 999 | INSTRUCTION INSTALL |
| 999 | PM INSTRUCTIONS INSTALL |
| 999 | MANUAL U&C TIP SHEET |
| 999 | PM INSTALL INSTRUCTIONS |
| 1000 | WB01T10126 GE Oven Screw 8-18 AB HXW 1/2 S |
| 1006 | WB01X23501 GE Oven Screw 8-32 Tapping Flat Head |
