JB650DF4BB CONTROL PANEL

JB650DF4BB CONTROL PANEL

Written by

in

JB650DF4BB CONTROL PANEL

Products

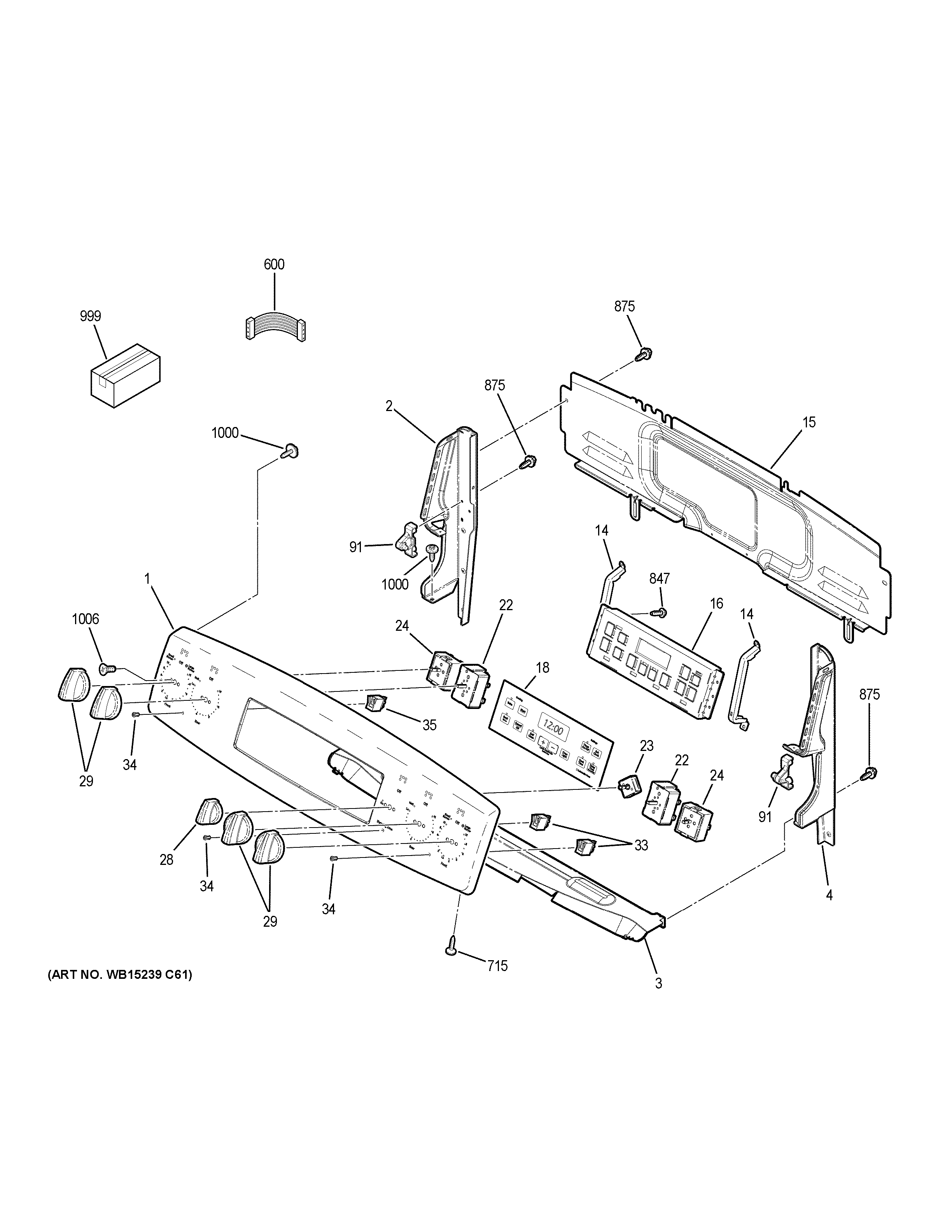

PositionProduct
1TRIM & BRACKET ASM (BK)
1GEN 229C6237P001
2WB07X27823 GE End Plate LT (Black)
3WB02X28994 GE Heat Shield
4WB36T11204 GE Oven Right End Plate
14WB34X20080 GE Control Bracket
15COVER CONTROL
16CONTROL OVEN TO9 (ELEC)
18GEN WB07X20168
22WB24T10029 GE Oven Infinite Burner Switch
23GEN WB24X21736
24WB24T10153 GE Oven Infinite Switch Control
28GEN WB03X21411
29WB03T10332 GE Stove Burner Control Knob
33WB25K10010 GE Oven Light Indicator Pilot
34WB25X24023 GE Oven Indicator Light Lens
35WB25X20005 GE Oven Light Indicator Pilot
91WB10T10116 GE Range Top Hinge Pin
600WB18X20001 GE Infinite Wire Harness
715WD2X432 GE Dishwasher Screw
847WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
875WH2X930 GE Screw
999PM OWNERS MANUAL
999PM MANUAL MINI & WD ASM
999INSTRUCTION INSTALL
999PM INSTRUCTIONS INSTALL
999MANUAL U&C TIP SHEET
999PM INSTALL INSTRUCTIONS
1000WB01T10126 GE Oven Screw 8-18 AB HXW 1/2 S
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
