JB650DF4WW CONTROL PANEL

JB650DF4WW CONTROL PANEL

Written by

in

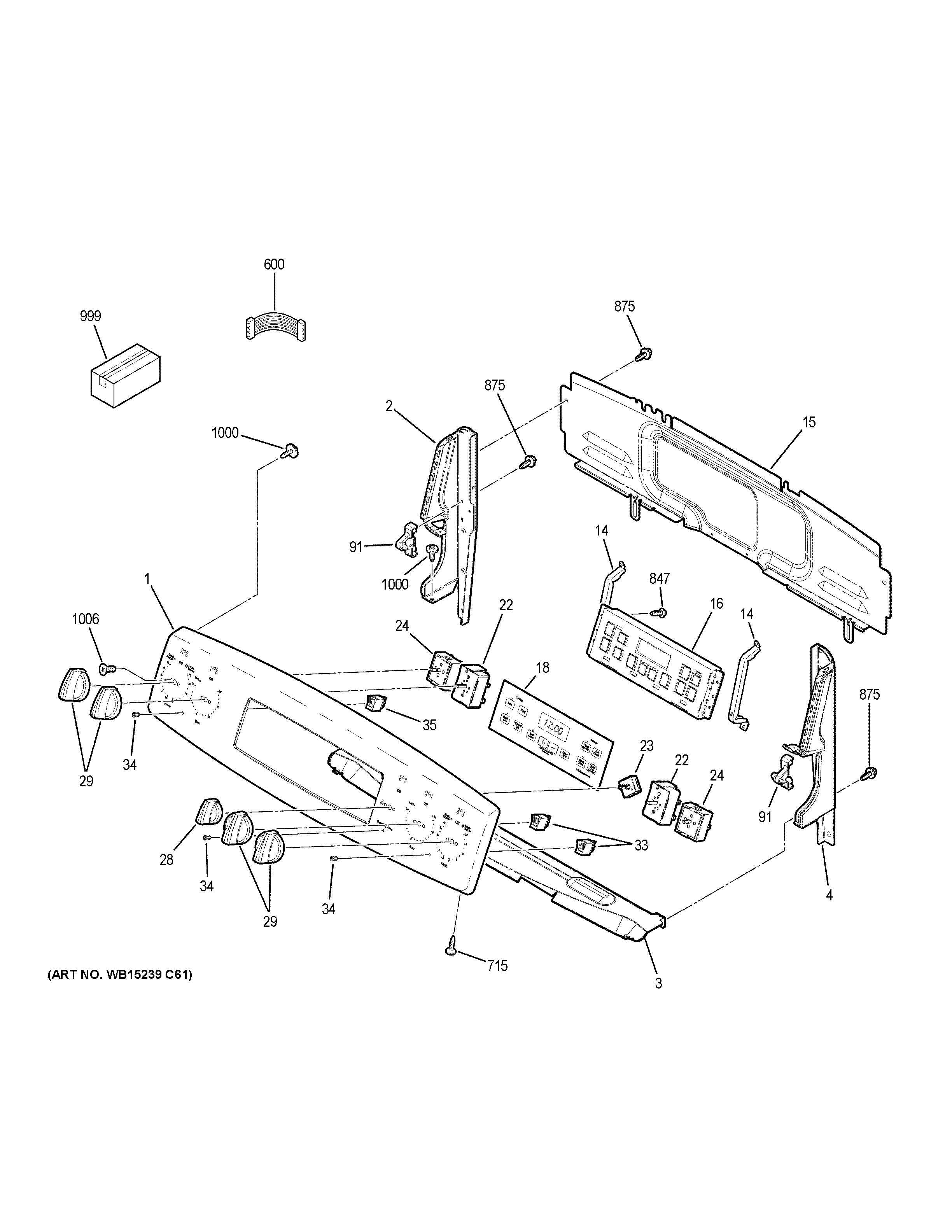

JB650DF4WW CONTROL PANEL

Products

PositionProduct
1TRIM & BRACKET ASM (WH)
1GEN 229C6237P001
2WB36T11207 GE Oven End Plate LT
3WB02X28994 GE Heat Shield
4WB36T11206 GE Oven End Plate Right
14WB34X20080 GE Control Bracket
15COVER CONTROL
16CONTROL OVEN TO9 (ELEC)
18FACEPLATE GRAPHICS (WH)
22WB24T10029 GE Oven Infinite Burner Switch
23GEN WB24X21736
24WB24T10153 GE Oven Infinite Switch Control
28GEN WB03X21412
29WB03T10344 GE Oven Infinite Knob
33WB25K10010 GE Oven Light Indicator Pilot
34WB25X24023 GE Oven Indicator Light Lens
35WB25X20005 GE Oven Light Indicator Pilot
91WB10T10116 GE Range Top Hinge Pin
600WB18X20001 GE Infinite Wire Harness
715WD2X433 GE Dishwasher Trim Screw
847WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
875WH2X930 GE Screw
999PM INSTRUCTIONS INSTALL
999MANUAL U&C TIP SHEET
999PM INSTALL INSTRUCTIONS
999PM MANUAL MINI & WD ASM
999PM OWNERS MANUAL
999INSTRUCTION INSTALL
1000WB01T10126 GE Oven Screw 8-18 AB HXW 1/2 S
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
