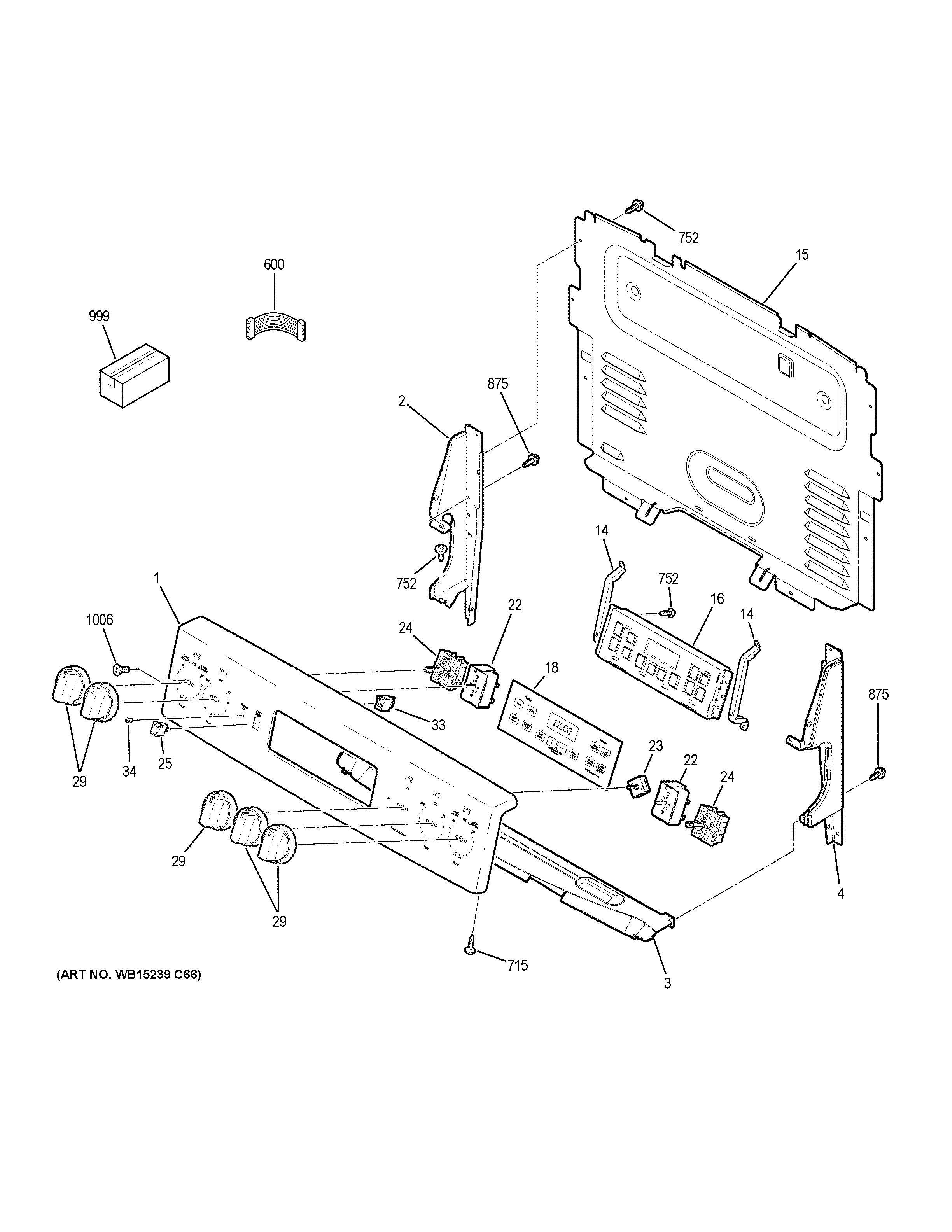

JB655DK7BB CONTROL PANEL

JB655DK7BB CONTROL PANEL

Written by

in

JB655DK7BB CONTROL PANEL

Products

PositionProduct
1LABEL WIRE DIAGRAM
1WB07X31200 GE Control Panel Trim
2WB07X27830 GE Oven End Plate Left (Black)
3WB34X28565 GE Oven Heat Backguard Shield
4WB07X27826 GE Oven Right End Plate (Black)
14WB34X31189 GE Oven Control Panel Bracket
15WB34X29564 GE Oven Back Control Panel Cover
16CONTROL OVEN TO9 (ELEC)
18WB07X26720 GE Oven Faceplate Graphics Black
22WB24T10029 GE Oven Infinite Burner Switch
23WB24X25302 GE Oven Rotary Switch
24WB24X25013 GE Oven Control Infinite Switch
25WB24T10042 GE Oven Rocker Switch
29WB03X24904 GE Oven Infinite Control Knob
33WB25X20005 GE Oven Light Indicator Pilot
34WB25X24023 GE Oven Indicator Light Lens
600WB18X32660 GE Maintop and INF. Switches HA
600WB18X30705 GE Lead Wire 14 GA GN
715WB1K60 GE Screw 8-18
752WB1K5200 GE Oven Screw 340531
875WH2X930 GE Screw
999PM QUICK GUIDE
999MANUAL U&C TIP SHEET
999INSTRUCTION INSTALL
999PM OWNERS MANUAL
999PM MANUAL MINI & WD ASM
999PM INSTALL INSTRUCTIONS
999PM INSTRUCTIONS INSTALL
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
