JB655DKBWW CONTROL PANEL

JB655DKBWW CONTROL PANEL

Written by

in

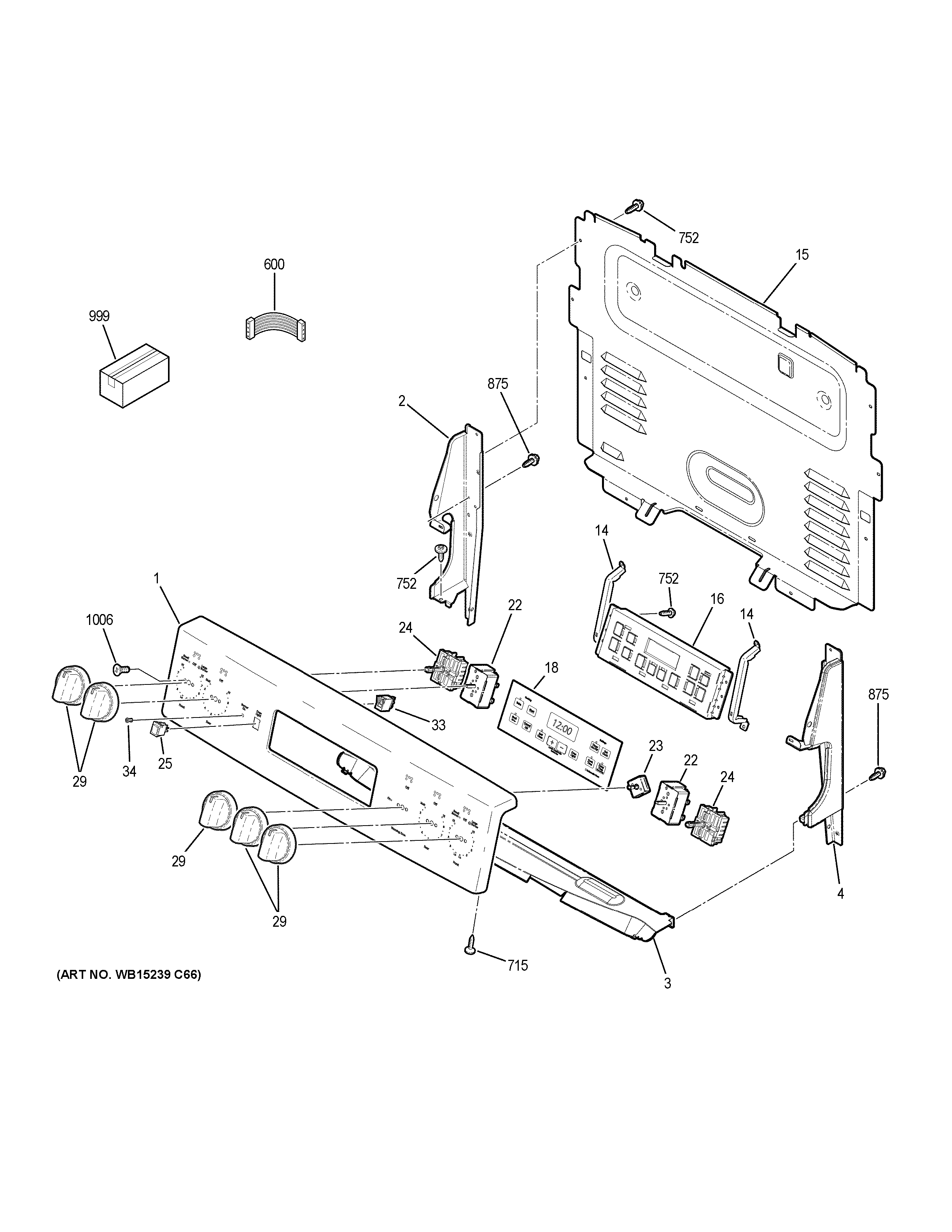

JB655DKBWW CONTROL PANEL

Products

PositionProduct
1WB07X31197 GE Control Panel Trim and Bracket
1LABEL WIRE DIAGRAM
2WB07X27829 GE Oven End Plate Left (White)
3WB34X28565 GE Oven Heat Backguard Shield
4WB07X27825 GE Oven Right End Plate (White)
14WB34X31189 GE Oven Control Panel Bracket
15WB34X29564 GE Oven Back Control Panel Cover
16CONTROL OVEN TO9
18WB07X41728 GE Graphics Faceplate White
22WB24T10022 GE Oven Infinite Switch
23WB24X40051 GE Rotary Switch
24WB24X25013 GE Oven Control Infinite Switch
25WB24T10043 GE Oven Rocker Switch
29WB03X24952 GE Range White Knob
33WB25X20005 GE Oven Light Indicator Pilot
34WB25X24023 GE Oven Indicator Light Lens
600WB18X42868 GE Maintop Harness
715WB1K58 GE Screw 8-18
752WB1K5200 GE Oven Screw 340531
875WH2X930 GE Screw
999PM INSTRUCTIONS INSTALL
999INSTRUCTION INSTALL
999PM MANUAL MINI & WD ASM
999PM INSTALL INSTRUCTIONS
999PM OWNERS MANUAL
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
