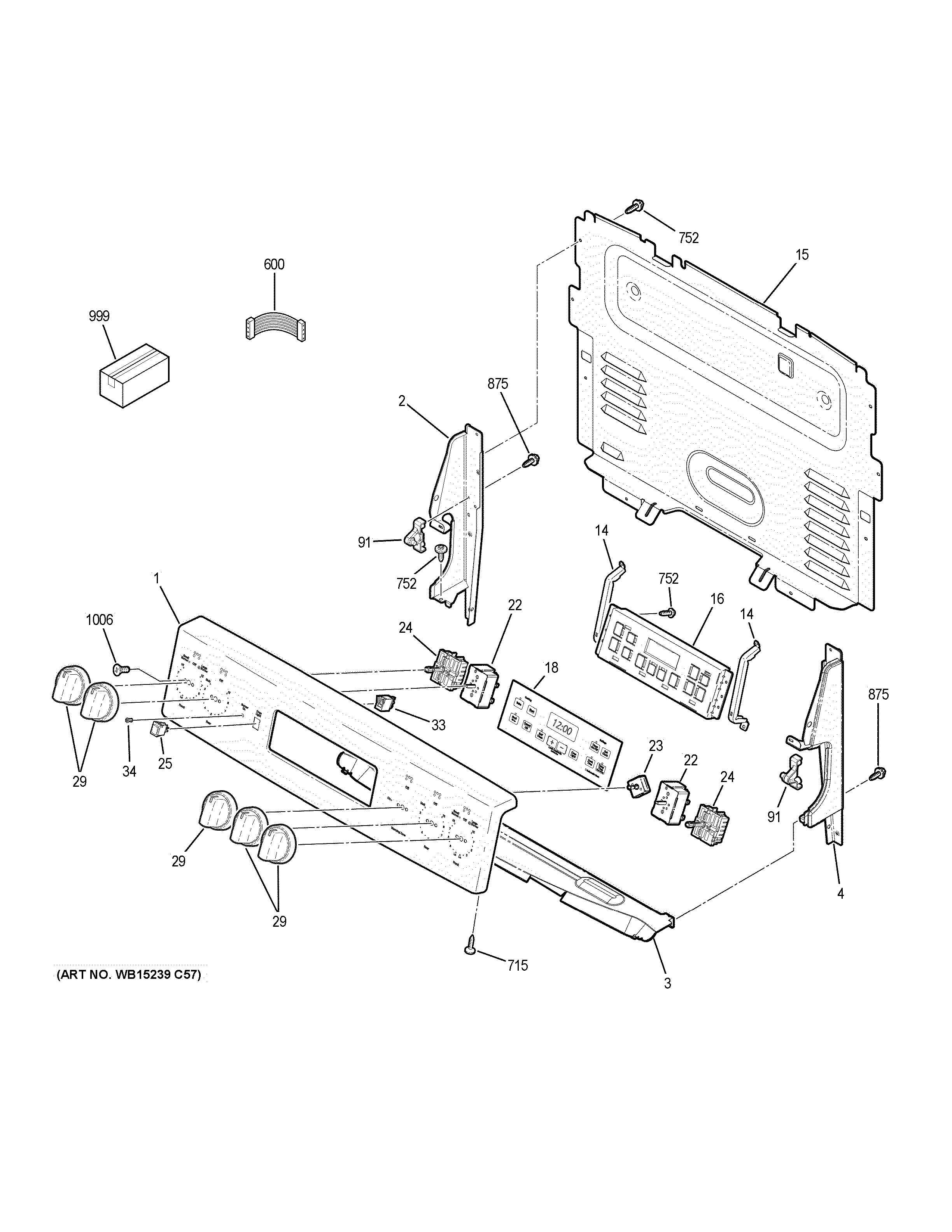

| 1 | LABEL WIRE DIAGRAM |
| 1 | WB07X31285 GE Oven Control Panel Trim and Bracket |
| 2 | WB07X29534 GE Oven Left Hand End Plate |
| 3 | WB34X28565 GE Oven Heat Backguard Shield |
| 4 | WB07X29535 GE Oven Right Hand End Plate |
| 14 | WB34X31189 GE Oven Control Panel Bracket |
| 15 | WB34X29564 GE Oven Back Control Panel Cover |
| 16 | CONTROL OVEN TO9 (ELEC) |
| 18 | WB07X26740 GE Oven Faceplate Graphics |
| 22 | WB24T10029 GE Oven Infinite Burner Switch |
| 23 | WB24X25302 GE Oven Rotary Switch |
| 24 | WB24X25013 GE Oven Control Infinite Switch |
| 25 | SWITCH ROCKER OVEN |
| 29 | WB03X24965 GE Oven Infinite Control Knob |
| 33 | WB25X20005 GE Oven Light Indicator Pilot |
| 34 | WB25X24023 GE Oven Indicator Light Lens |
| 91 | WB10T10116 GE Range Top Hinge Pin |
| 600 | WB18X32660 GE Maintop and INF. Switches HA |
| 600 | WB18T10470 GE Oven Lead Wire 14 GA Green |
| 715 | WB1K60 GE Screw 8-18 |
| 752 | WB1K5200 GE Oven Screw 340531 |
| 875 | WH2X930 GE Screw |
| 999 | PM INSTALL INSTRUCTIONS |
| 999 | PM MANUAL MINI & WD ASM |
| 999 | INSTRUCTION INSTALL |
| 999 | PM OWNERS MANUAL |
| 999 | MANUAL U&C TIP SHEET |
| 999 | PM QUICK GUIDE |
| 999 | PM INSTRUCTIONS INSTALL |
| 1006 | WB01X23501 GE Oven Screw 8-32 Tapping Flat Head |
