JB655EK5ES CONTROL PANEL

JB655EK5ES CONTROL PANEL

Written by

in

JB655EK5ES CONTROL PANEL

Products

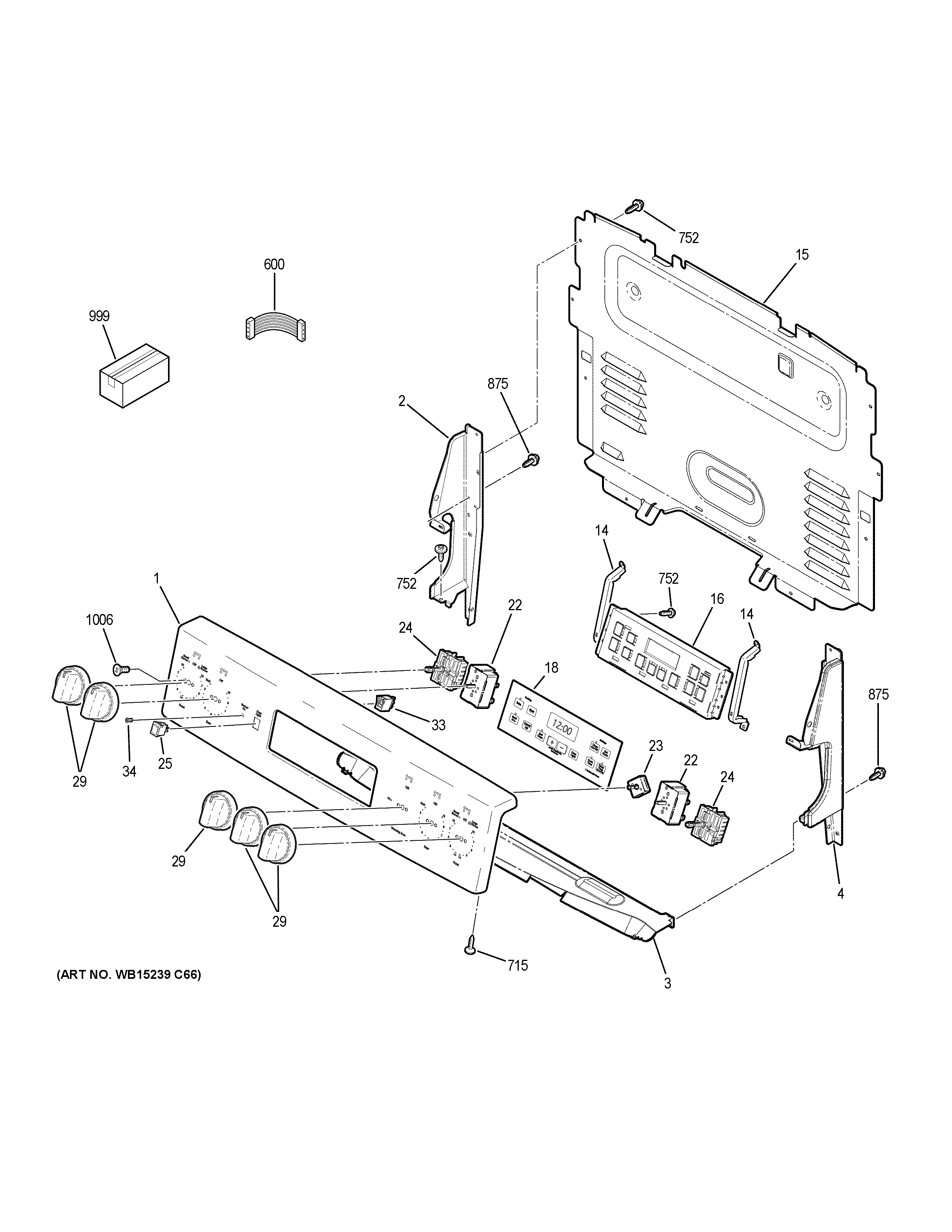

PositionProduct
1LABEL WIRE DIAGRAM
1WB07X31285 GE Oven Control Panel Trim and Bracket
2WB07X29534 GE Oven Left Hand End Plate
3WB34X28565 GE Oven Heat Backguard Shield
4WB07X29535 GE Oven Right Hand End Plate
14WB34X31189 GE Oven Control Panel Bracket
15WB34X29564 GE Oven Back Control Panel Cover
16CONTROL OVEN TO9 (ELEC)
18WB07X26740 GE Oven Faceplate Graphics
22WB24T10029 GE Oven Infinite Burner Switch
23WB24X25302 GE Oven Rotary Switch
24WB24X25013 GE Oven Control Infinite Switch
25SWITCH ROCKER OVEN
29WB03X24965 GE Oven Infinite Control Knob
33WB25X20005 GE Oven Light Indicator Pilot
34WB25X24023 GE Oven Indicator Light Lens
600WB18X30705 GE Lead Wire 14 GA GN
715WB1K60 GE Screw 8-18
752WB1K5200 GE Oven Screw 340531
875WH2X930 GE Screw
999MANUAL U&C TIP SHEET
999PM QUICK GUIDE
999PM OWNERS MANUAL
999INSTRUCTION INSTALL
999PM MANUAL MINI & WD ASM
999PM INSTALL INSTRUCTIONS
999PM INSTRUCTIONS INSTALL
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
