JB655FK3DS CONTROL PANEL

JB655FK3DS CONTROL PANEL

Written by

in

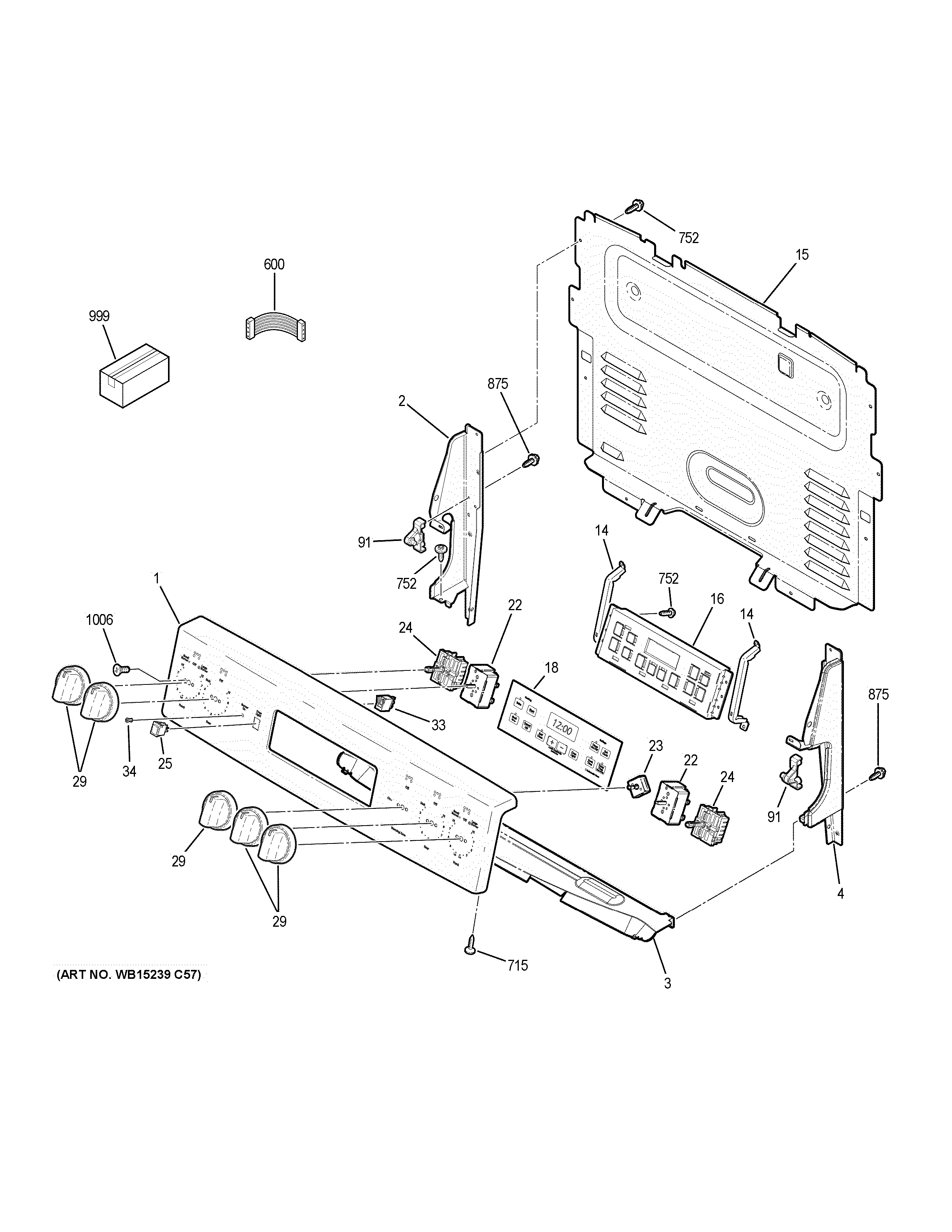

JB655FK3DS CONTROL PANEL

Products

PositionProduct
1CONTROL PANEL TRIM ASM DS
1LABEL WIRE DIAGRAM
2WB07X29534 GE Oven Left Hand End Plate
3WB34X28565 GE Oven Heat Backguard Shield
4WB07X29535 GE Oven Right Hand End Plate
14WB34X26635 GE Control Bracket
15WB34X29564 GE Oven Back Control Panel Cover
16CONTROL OVEN TO9 (ELEC)
18WB07X26740 GE Oven Faceplate Graphics
22WB24T10029 GE Oven Infinite Burner Switch
23WB24X25302 GE Oven Rotary Switch
24WB24X25013 GE Oven Control Infinite Switch
25SWITCH ROCKER OVEN
29WB03X29165 GE Oven Knob Assembly
33WB25X20005 GE Oven Light Indicator Pilot
34WB25X24023 GE Oven Indicator Light Lens
91WB10T10116 GE Range Top Hinge Pin
600INFINITE HARNESS WIRE
715WB1K60 GE Screw 8-18
752WB1K5200 GE Oven Screw 340531
875WH2X930 GE Screw
999MANUAL U&C TIP SHEET
999PM QUICK GUIDE
999PM OWNERS MANUAL
999PM MANUAL MINI & WD ASM
999PM INSTALL INSTRUCTIONS
999PM INSTRUCTIONS INSTALL
999INSTRUCTION INSTALL
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
