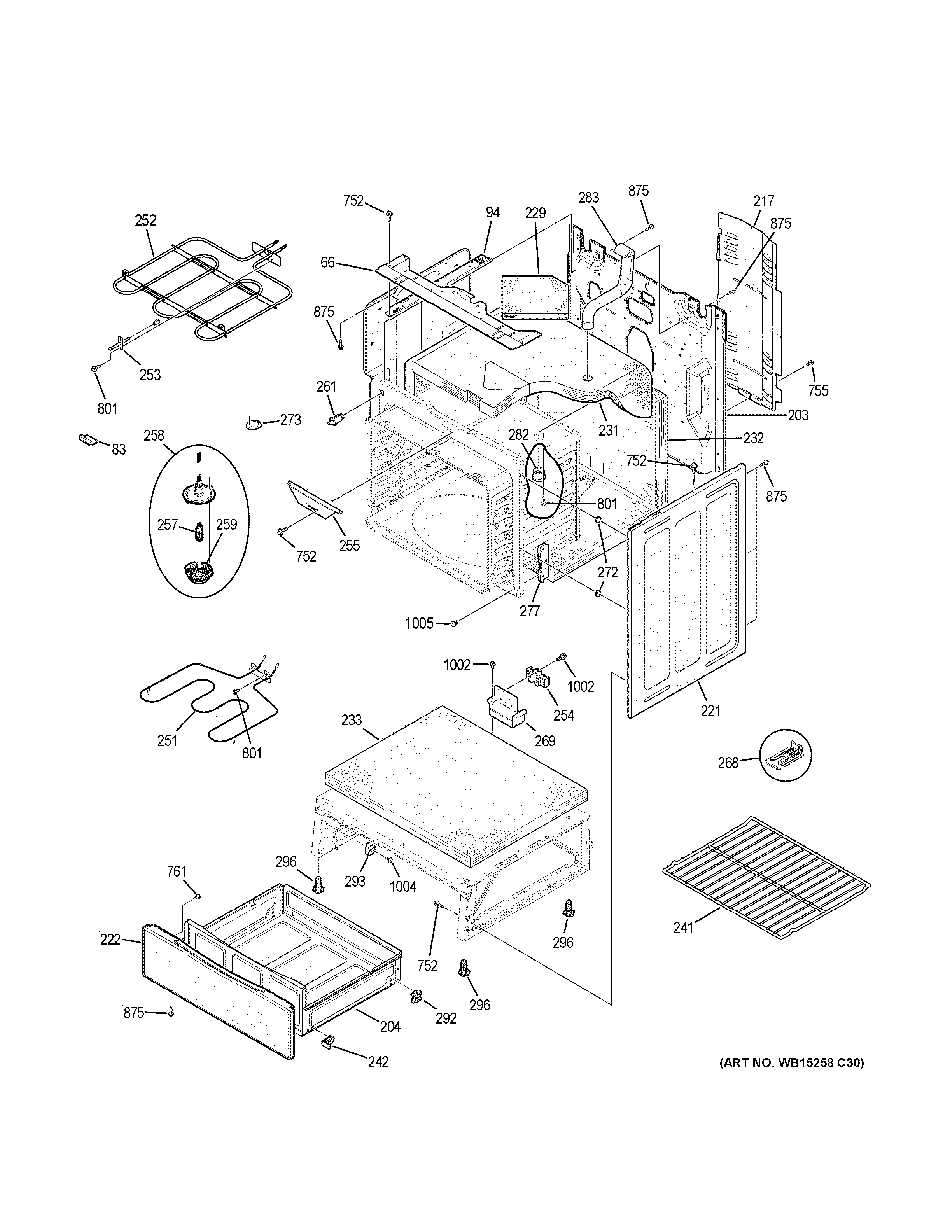

JB655SK5SS BODY PARTS

JB655SK5SS BODY PARTS

Written by

in

JB655SK5SS BODY PARTS

Products

PositionProduct
66WB34X30165 GE Range Top Enclosure
83WB02T10118 GE Oven Clip Seam
94WB02T10463 GE Oven Radiant Chassis Brace
94WB34X26004 GE Range Radiant LT Chassis BR
203WB34X31190 GE Back Cover
204WB63X41287 GE Drawer Slide Assembly
217WB34X29563 GE Oven Wire Cover
221WB63X28679 GE Oven Side Panel
222WB56X43666 GE Panel Drawer
229WB35T10017 GE Oven Vent Tube Insulation
231WB35X29569 GE Oven Cavity Insulation
232WB35X29571 GE Oven Back Insulation
233WB35X29568 GE Oven Bottom Insulation
241WB48T10063 GE Oven Rack
242WB02X29072 GE Oven Drawer Wedge
251BAKE ELEMENT
252WB44X45498 GE Broiler Assembly Unit
253WB21X22134 GE Oven Sensor Assembly
254WB17T10011 GE Oven Terminal Block
257WB08T10045 GE Oven G9 Halogen Lamp
258WB25X24909 GE Oven Halogen Lamp Assembly
259OV LAMP LENS LWR
261WB24T10147 GE Oven SPDT Light Switch
268WB02T10578 GE Oven Anti-Tip Bracket Assembly
269WB34X29565 GE Oven Terminal Block
272WB02T10034 GE Oven Body Side Support
273GEN WB02K5365
277WB10X29566 GE Hinge Receiver
282WB38X33648 GE Vent Tube
283WB34X29573 GE Vent Tube
292WB02X33180 GE Oven Drawer Glide
293WB48T10013 GE Oven Drawer Support
296WB02X10521 GE Oven Leveling Leg
752WB1K5200 GE Oven Screw 340531
755WR01X10602 GE Refrigerator Screw 8-32 AB IHWS 3/8 S
761WB1X5364 GE Oven Mounting Screw
801WB01M10002 GE Oven Screw
875WH2X930 GE Screw
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
