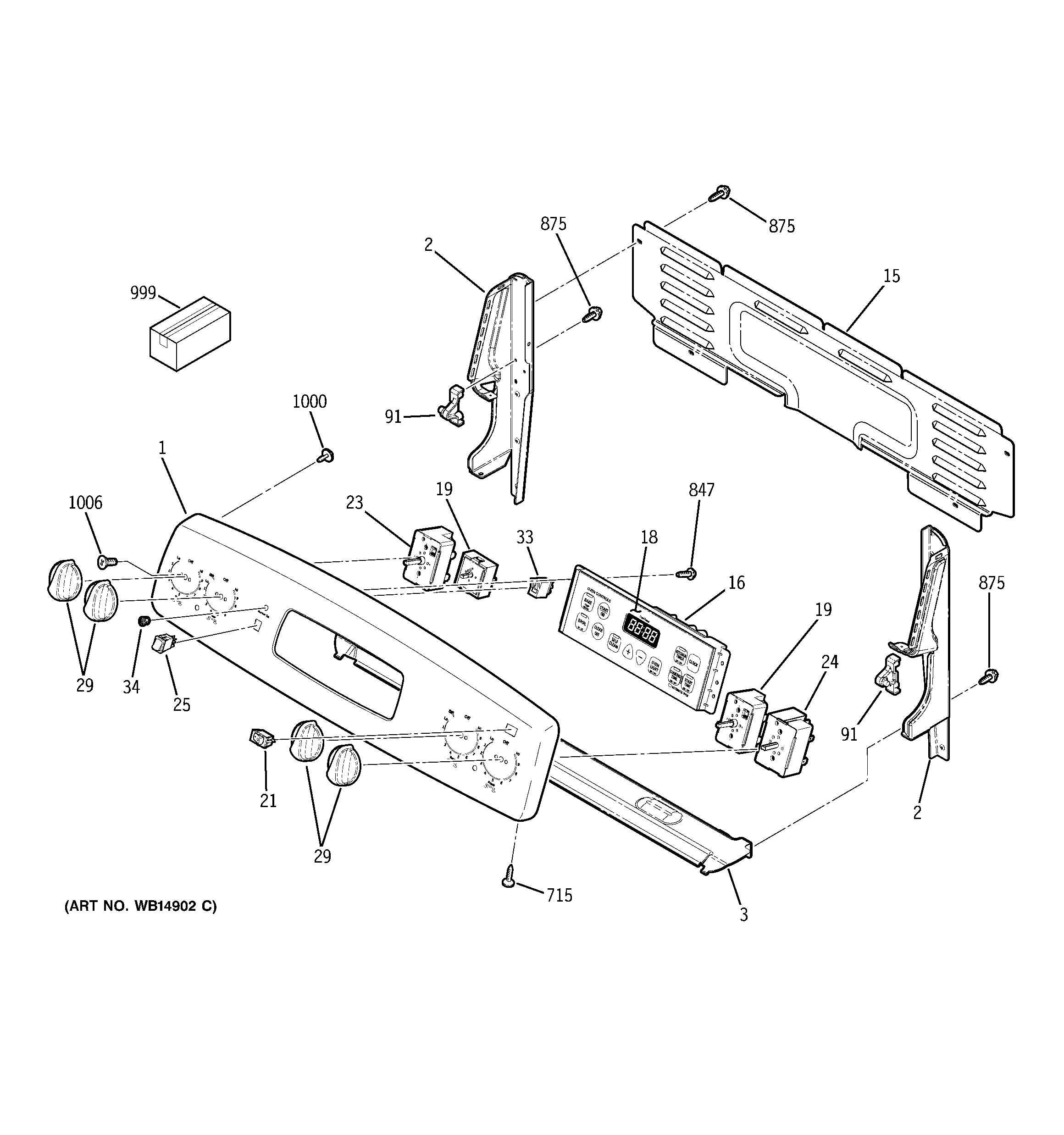

JB670DP2BB CONTROL PANEL

JB670DP2BB CONTROL PANEL

Written by

in

JB670DP2BB CONTROL PANEL

Products

PositionProduct
1GEN WB36T11294
1GEN WB36T11293
2WB36T11039 GE Oven End Plate Right (Black)
2GEN WB36T11043
2GEN WB36T11042
2GEN WB36T11040
3GEN WB02T10525
15GEN WB02T10499
16CONTROL OVEN TO9 (ELEC)
18GEN WB27T11180
18GEN WB27T11179
19WB24T10145 GE Oven Burner Switch
21WB24T10165 GE Oven Rocker Switch Element Black
21WB24T10167 GE Oven Rocker Switch Element (White)
23WB24T10146 GE Oven Surface Element Control
24INFINITE CONTROL SWITCH
25WB24T10042 GE Oven Rocker Switch
25WB24T10043 GE Oven Rocker Switch
29WB03T10282 GE Oven Infinite Knob (White)
29KNOB INFINITE (BK)
33WB27T10626 GE Oven Indicator Light Pilot
34WB25T10041 GE Oven Lens
91GEN WB10T10125
715WD2X432 GE Dishwasher Screw
715WD2X433 GE Dishwasher Trim Screw
847WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
999GEN 31-10677
999GEN 49-80591
999PM10X310 GE Cerama Bryte Cooktop Cleaner
999GEN 31-14948
999INSTR INSTALL OVN DOOR
1000WB01T10016 GE Oven Screw 8-18 AB Hex
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
