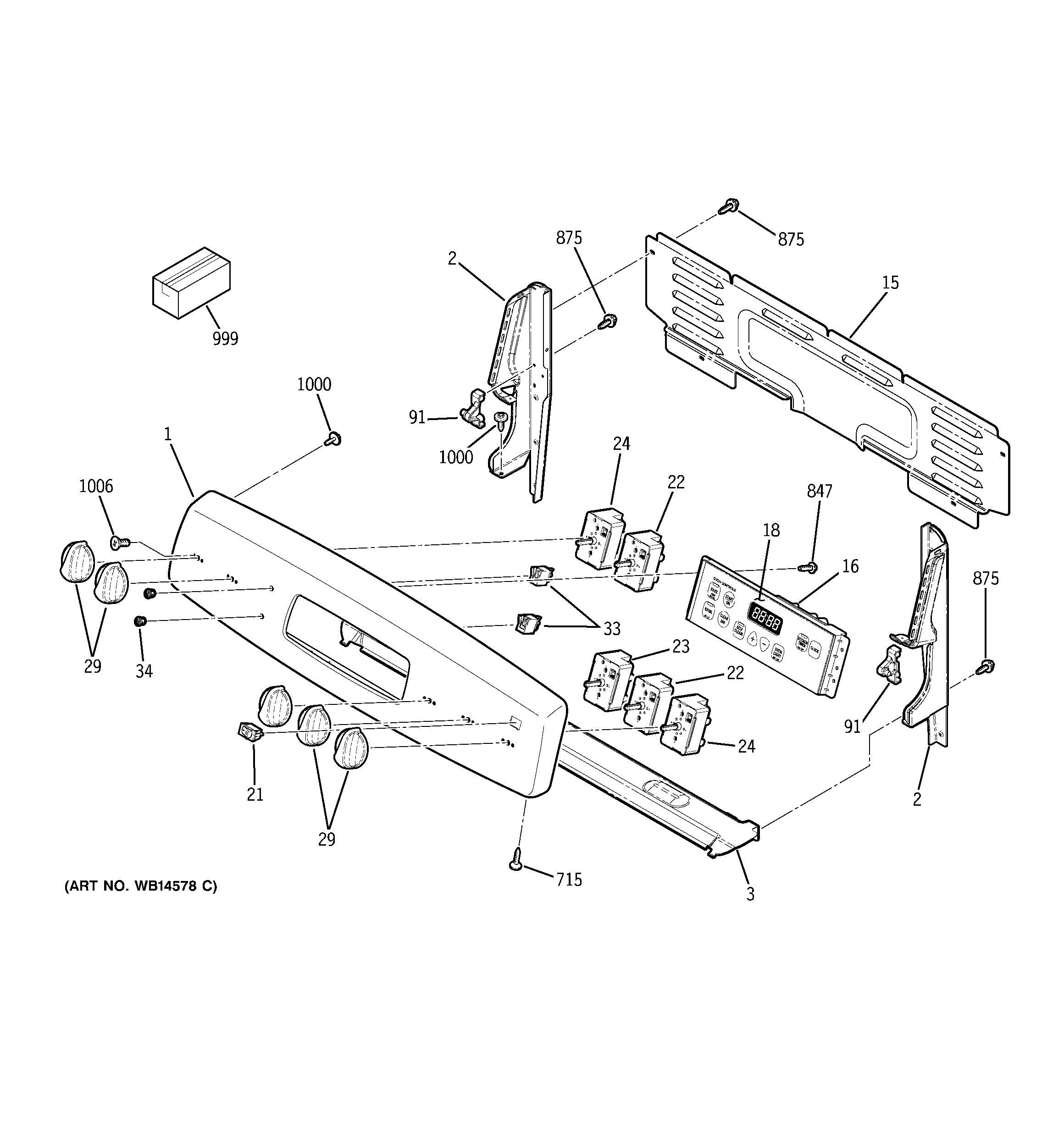

JB690DN1BB CONTROL PANEL

Products

Position	Product
1	GEN WB36T11186
1	GEN WB36T11185
2	GEN WB36T11040
2	GEN WB36T11042
2	GEN WB36T11043
2	WB36T11039 GE Oven End Plate Right (Black)
3	SHIELD HEAT BKGD
15	GEN WB02T10499
16	CONTROL OVEN TO9 (ELEC)
18	WB27T11005 GE Oven Faceplate Graphics Black
18	WB27T11006 GE Oven Overlay
21	WB24T10165 GE Oven Rocker Switch Element Black
21	WB24T10167 GE Oven Rocker Switch Element (White)
22	WB24T10145 GE Oven Burner Switch
23	WB24T10146 GE Oven Surface Element Control
24	INFINITE CONTROL SWITCH
29	KNOB INFINITE (BK)
29	WB03T10282 GE Oven Infinite Knob (White)
33	WB27T10626 GE Oven Indicator Light Pilot
34	WB25T10041 GE Oven Lens
91	WB10T10116 GE Range Top Hinge Pin
715	WD2X432 GE Dishwasher Screw
715	WD2X433 GE Dishwasher Trim Screw
847	WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
875	WZ4X245D GE Screw Package
875	WH2X930 GE Screw
999	GEN 49-80567
999	GEN 31-10677
999	GEN 49-80530
999	PM10X310 GE Cerama Bryte Cooktop Cleaner
999	GEN 31-14767
1000	WB01T10016 GE Oven Screw 8-18 AB Hex
1006	WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
