JB700EJ5ES CONTROL PANEL

JB700EJ5ES CONTROL PANEL

Written by

in

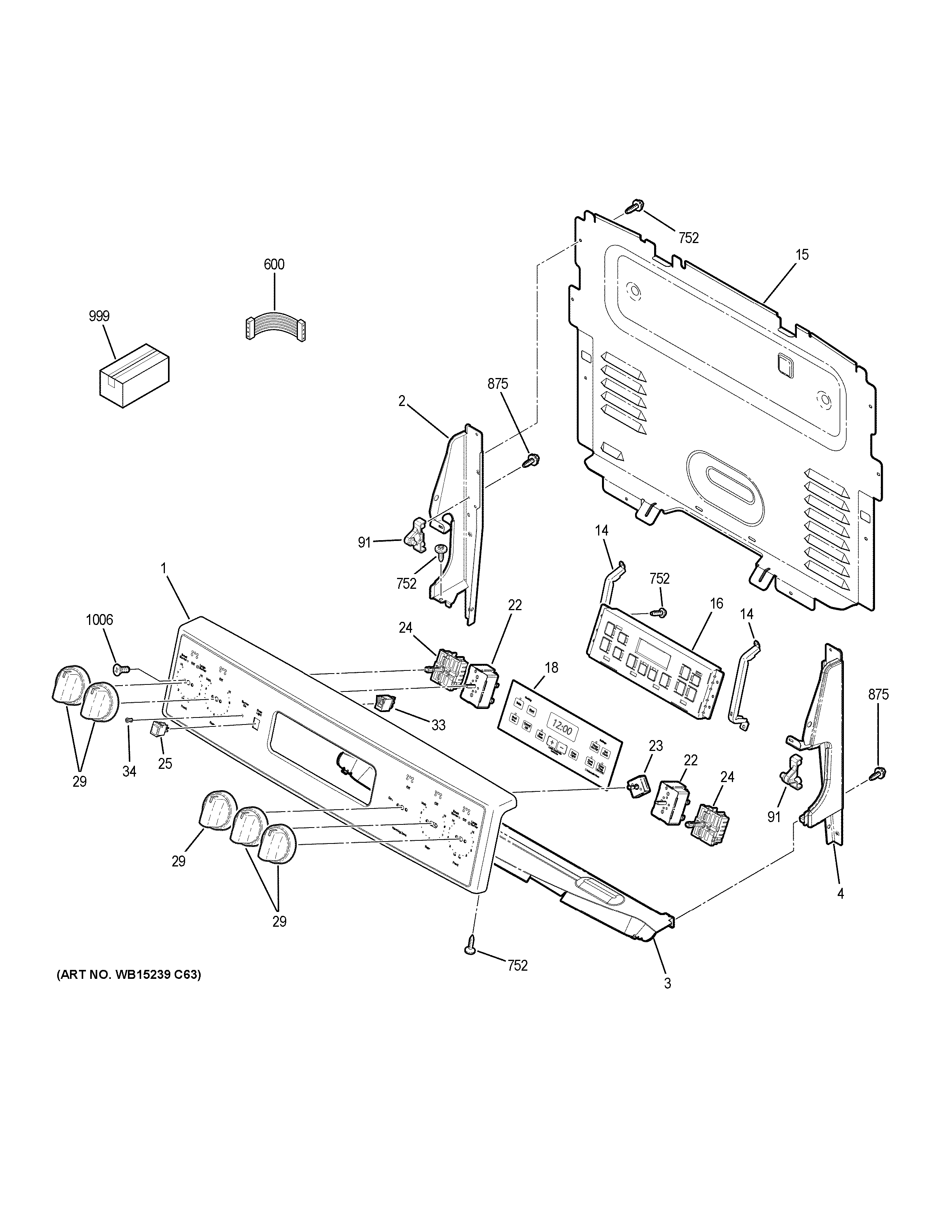

JB700EJ5ES CONTROL PANEL

Products

PositionProduct
1CONTROL PANEL TRIM AND BRACKETS ASM TZ
1LABEL WIRE DIAGRAM
2WB07X29534 GE Oven Left Hand End Plate
3WB34X28565 GE Oven Heat Backguard Shield
4WB07X29535 GE Oven Right Hand End Plate
14WB34X31189 GE Oven Control Panel Bracket
15WB34X29564 GE Oven Back Control Panel Cover
16WB27X29088 GE Oven White LED Control T09
18WB07X25885 GE Oven Graphics Faceplate
22WB24T10029 GE Oven Infinite Burner Switch
23WB24X25302 GE Oven Rotary Switch
24WB24X25013 GE Oven Control Infinite Switch
25SWITCH ROCKER OVEN
29WB03X24965 GE Oven Infinite Control Knob
33WB25X20005 GE Oven Light Indicator Pilot
34WB25X24023 GE Oven Indicator Light Lens
91WB10T10116 GE Range Top Hinge Pin
600WB18X32660 GE Maintop and INF. Switches HA
600WB18X30705 GE Lead Wire 14 GA GN
752WB1K5200 GE Oven Screw 340531
875WH2X930 GE Screw
999PM QUICK GUIDE
999PM INSTRUCTIONS INSTALL
999INSTRUCTION INSTALL
999PM MANUAL MINI & WD ASM
999PM INSTALL INSTRUCTIONS
999MANUAL U&C TIP SHEET
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
