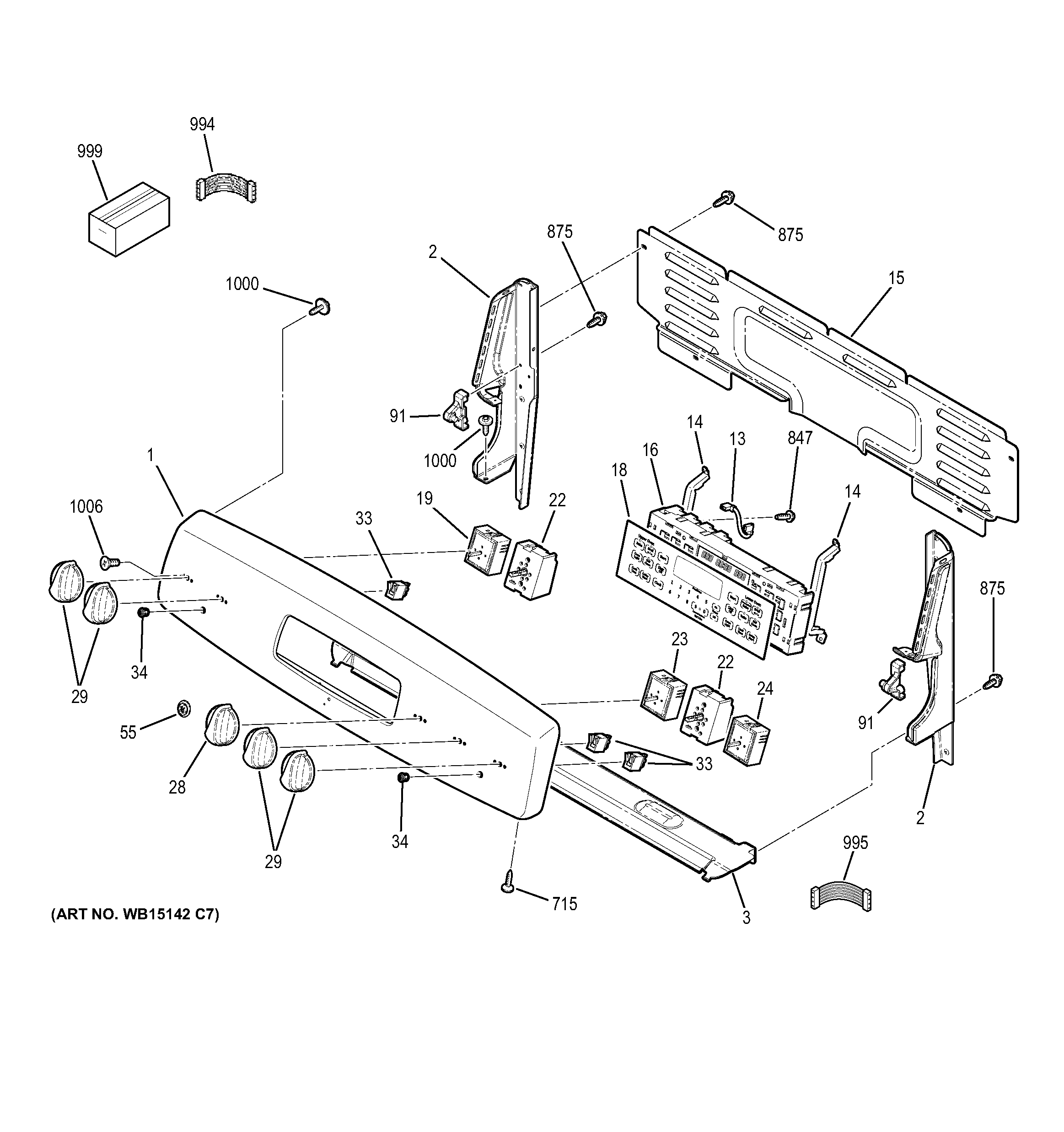

JB705DT3BB CONTROL PANEL

Products

Position	Product
1	TRIM & BRACKET ASM
2	WB36T11039 GE Oven End Plate Right (Black)
2	GEN WB36T11040
3	GEN WB02T10525
13	WB18X30704 GE Jumper
15	COVER CONTROL
16	WB27T11351 GE Oven Clock and Control Board
18	GEN WB27T11431
18	GEN WB27T11365
19	WB24T10153 GE Oven Infinite Switch Control
22	WB24T10145 GE Oven Burner Switch
23	WB24T10162 GE Oven Infinite Control Switch
24	INFINITE CONTROL SWITCH
28	GEN WB03T10311
29	KNOB INFINITE (BK)
33	WB27T10626 GE Oven Indicator Light Pilot
34	WB25T10041 GE Oven Lens
55	WB02T10359 GE Oven Badge
91	GEN WB10T10125
715	WD2X432 GE Dishwasher Screw
847	WB1X500D GE Oven Screw Package
875	WZ4X245D GE Screw Package
994	GEN WB18T10497
995	HARNESS WIRE MAINTOP
995	WB18T10466 GE Oven 18-Inch Lead Wire
995	WB18T10470 GE Oven Lead Wire 14 GA Green
999	PM10X310 GE Cerama Bryte Cooktop Cleaner
999	GEN 31-10781
999	GEN 49-80633
999	GEN 31-10816
999	INSTR INSTALL OVN DOOR
999	GEN 31-15034
1000	WZ4X44D GE Screw Package
1006	WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
