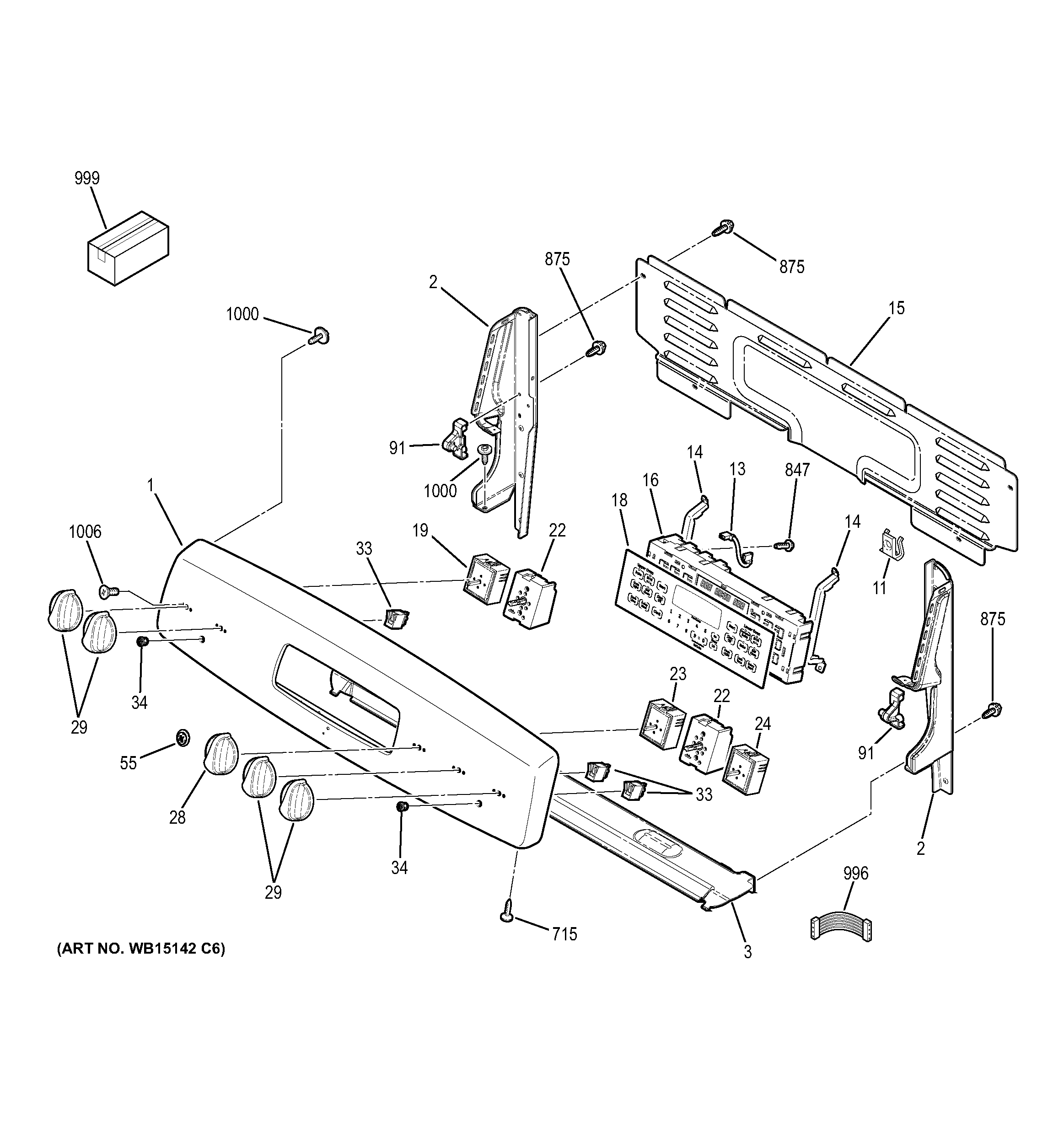

JB705ED1ES CONTROL PANEL

JB705ED1ES CONTROL PANEL

Written by

in

JB705ED1ES CONTROL PANEL

Products

PositionProduct
1GEN WB36T11381
2GEN WB36T11379
2GEN WB36T11380
3GEN WB02T10525
11GEN WB02T10497
13WB18X30704 GE Jumper
14GEN WB37T10011
15COVER CONTROL
16WB27T11351 GE Oven Clock and Control Board
18GEN WB27T11431
19WB24T10153 GE Oven Infinite Switch Control
22WB24T10145 GE Oven Burner Switch
23INFINITE CONTROL SWITCH
24WB24T10162 GE Oven Infinite Control Switch
28GEN WB03T10310
29WB03T10284 GE Range Infinite Burner Knob Cooktop Element
33WB27T10626 GE Oven Indicator Light Pilot
34WB25T10041 GE Oven Lens
55WB02T10589 GE Range Gray Nameplate Badge
91GEN WB10T10125
715WD2X432 GE Dishwasher Screw
847WB1K5186 GE Oven Screw 6-32 X 3/5" 1/4" Hex D
875WH2X930 GE Screw
996GEN WB18T10498
996GEN WB18T10497
999GEN 49-80633
999PM10X310 GE Cerama Bryte Cooktop Cleaner
999INSTR INSTALL OVN DOOR
999GEN 31-15034
999GEN 31-10816
1000WB1X5904 GE Oven Screw 8-18 BA
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
