JB705ED1ES WARMING DRAWER

JB705ED1ES WARMING DRAWER

Written by

in

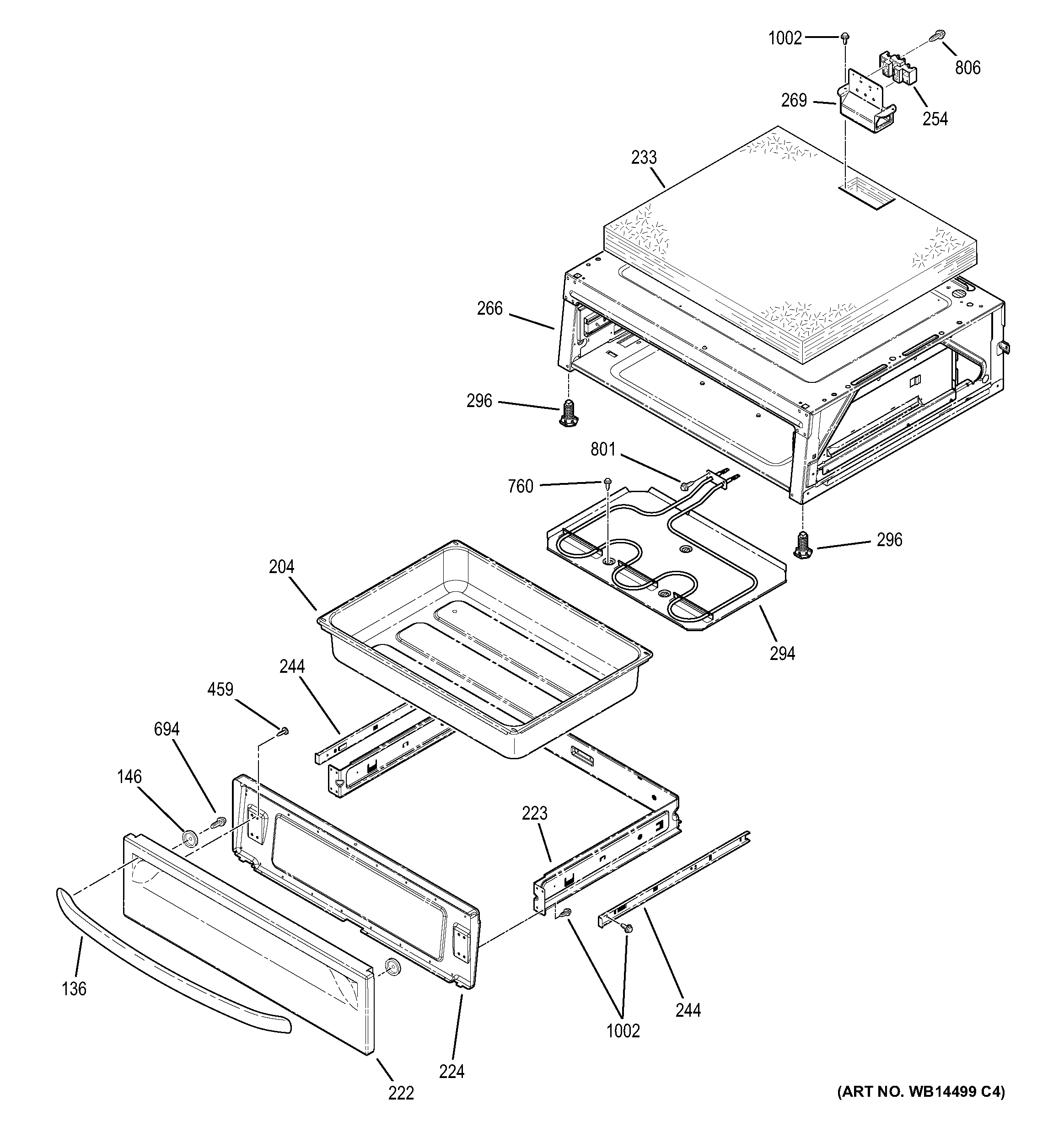

JB705ED1ES WARMING DRAWER

Products

PositionProduct
136GEN WB15T10196
146WB1K5117 GE Oven Washer
204GEN WB49T10011
222GEN WB56T10345
223WB63T10146 GE Oven Frame Drawer and Bracket Assembly
224GEN WB56T10180
233GEN WB35T10254
244GUIDE- SLIDE DRAWER
254WB17T10011 GE Oven Terminal Block
266WB63X25155 GE Cavity Warming Drawer Assembly
269WB17T10020 GE Oven Terminal Block Mount
294WB30T10144 GE Oven Heating Element (WARM)
296WB02X10521 GE Oven Leveling Leg
459WB1X537 GE Oven Screw
694WZ4X245D GE Screw Package
760WB1X536 GE Oven Screw
801WS02X10087 GE Screws 10-32 GX HXW 7/16 S
806WD02X10208 GE Screw 10-32 TTT Hex 7/16
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
