JB705TT1WW CONTROL PANEL

JB705TT1WW CONTROL PANEL

Written by

in

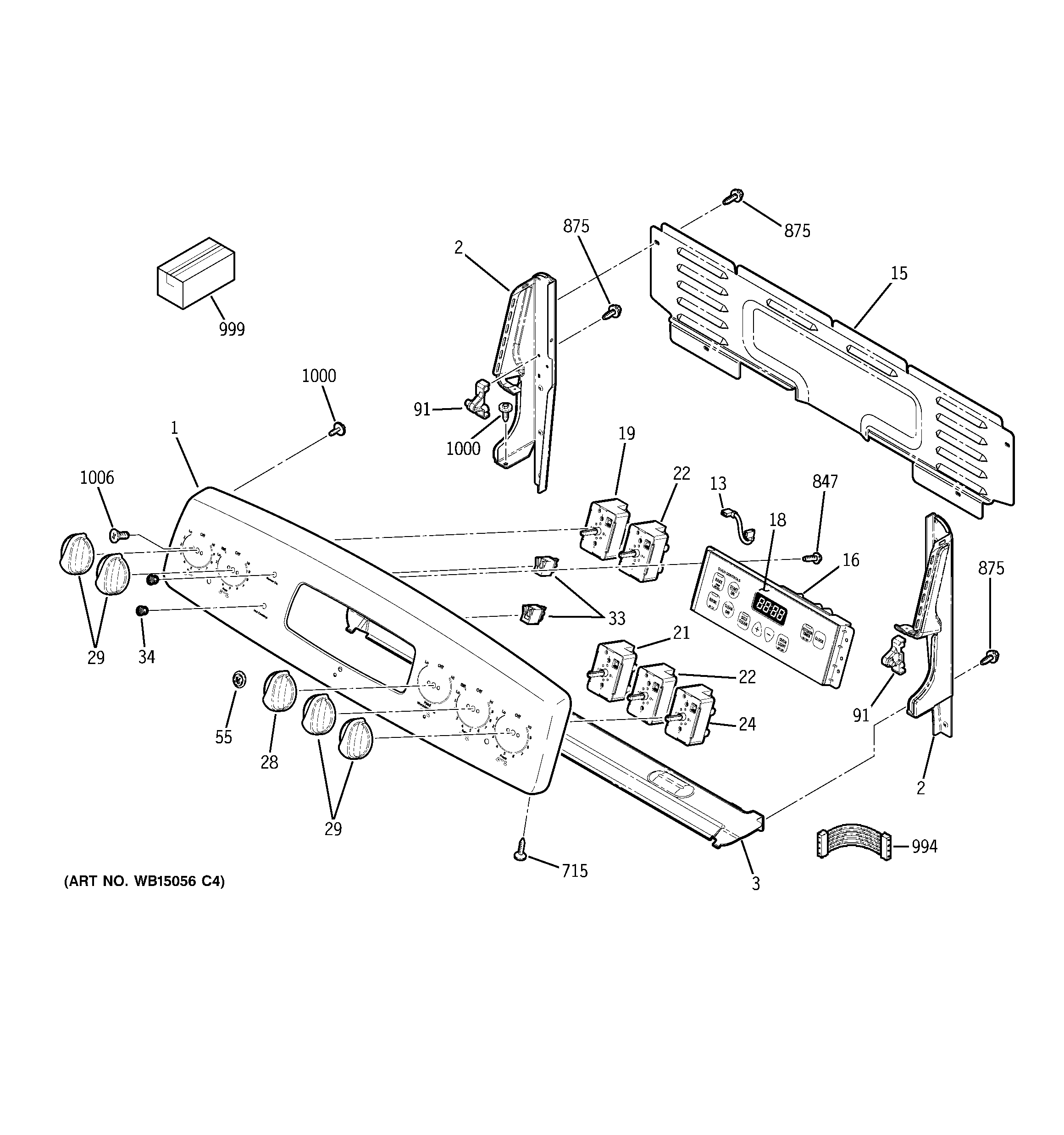

JB705TT1WW CONTROL PANEL

Products

PositionProduct
1TRIM & BRACKET ASM
1GEN WB36T11347
1TRIM & BRACKET ASM
2WB36T11039 GE Oven End Plate Right (Black)
2GEN WB36T11040
2GEN WB36T11042
2GEN WB36T11043
2GEN WB36T11050
2GEN WB36T11051
3GEN WB02T10525
13WB18X30704 GE Jumper
15COVER CONTROL
16WB27T11351 GE Oven Clock and Control Board
18GEN WB27T11367
18GEN WB27T11365
18GEN WB27T11366
19WB24T10153 GE Oven Infinite Switch Control
21INFINITE CONTROL SWITCH
22WB24T10145 GE Oven Burner Switch
24WB24T10162 GE Oven Infinite Control Switch
28GEN WB03T10312
28GEN WB03T10311
28GEN WB03T10321
29WB03T10285 GE Oven Infinite Control Knob
29KNOB INFINITE (BK)
29WB03T10282 GE Oven Infinite Knob (White)
33WB27T10626 GE Oven Indicator Light Pilot
34WB25T10041 GE Oven Lens
55WB02T10359 GE Oven Badge
91GEN WB10T10125
715WD2X432 GE Dishwasher Screw
847WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
875WH2X930 GE Screw
994GEN WB18T10497
999PM10X310 GE Cerama Bryte Cooktop Cleaner
999INSTR INSTALL OVN DOOR
999GEN 31-10816
999GEN 49-80602
999GEN 49-80633
999GEN 31-14963
1000WB01T10016 GE Oven Screw 8-18 AB Hex
1006WB01T10053 GE Oven 8-32 TPT FLR Screw
