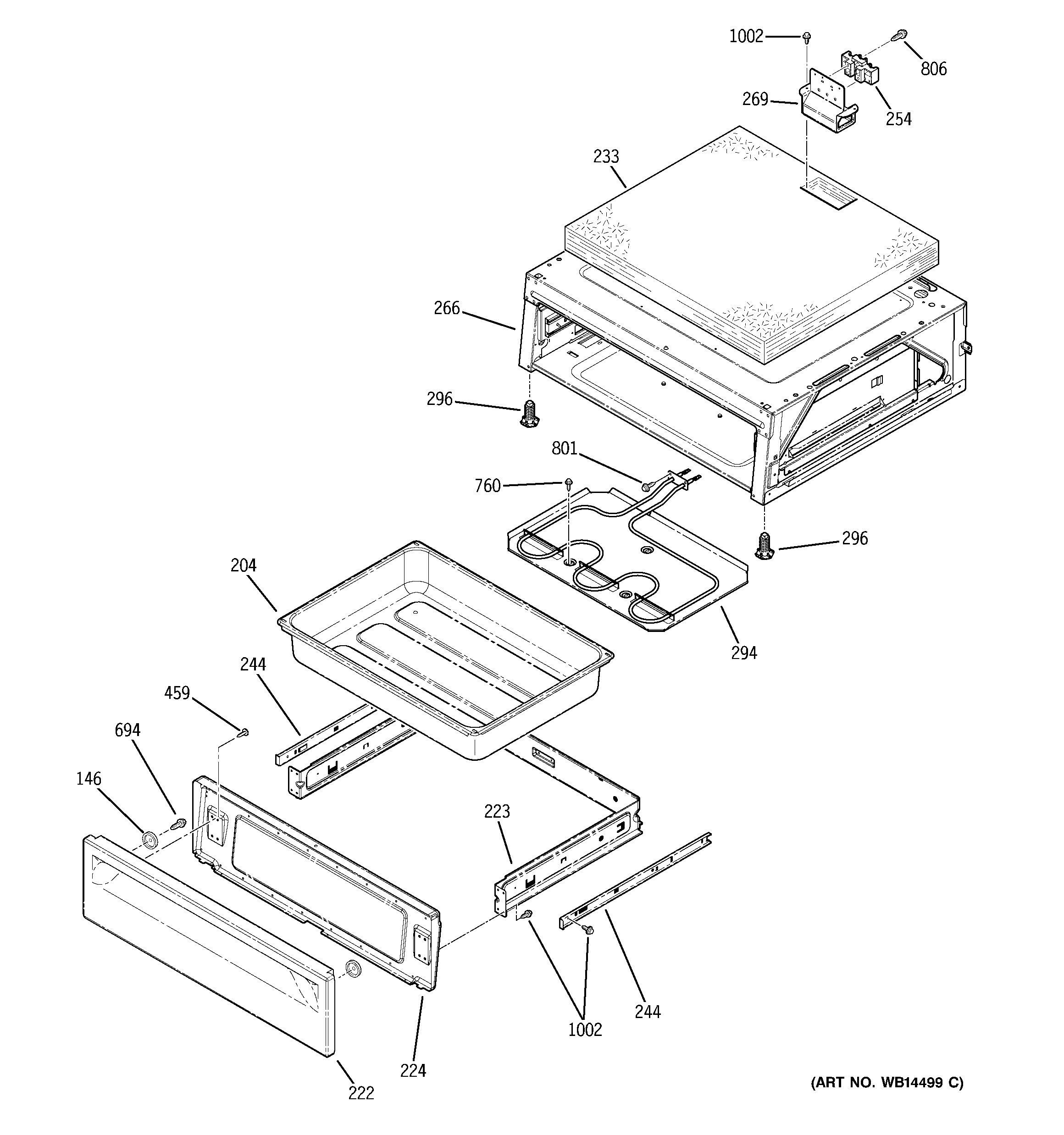

JB705TT3WW WARMING DRAWER

JB705TT3WW WARMING DRAWER

Written by

in

JB705TT3WW WARMING DRAWER

Products

PositionProduct
204GEN WB49T10011
222GEN WB56T10268
223WB63T10146 GE Oven Frame Drawer and Bracket Assembly
224GEN WB56T10180
233GEN WB35T10254
244GUIDE- SLIDE DRAWER
254WB17T10011 GE Oven Terminal Block
266WB63X28540 GE Base Assembly Rivet
266WB63X25155 GE Cavity Warming Drawer Assembly
269WB17T10020 GE Oven Terminal Block Mount
294WB30T10144 GE Oven Heating Element (WARM)
459WB1X537 GE Oven Screw
694WB1K5156 GE Oven Screw
760WB1X536 GE Oven Screw
801WB1M1 GE Oven Screw
806WH2X930 GE Screw
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
