JB710CH2CC CONTROL PANEL

JB710CH2CC CONTROL PANEL

Written by

in

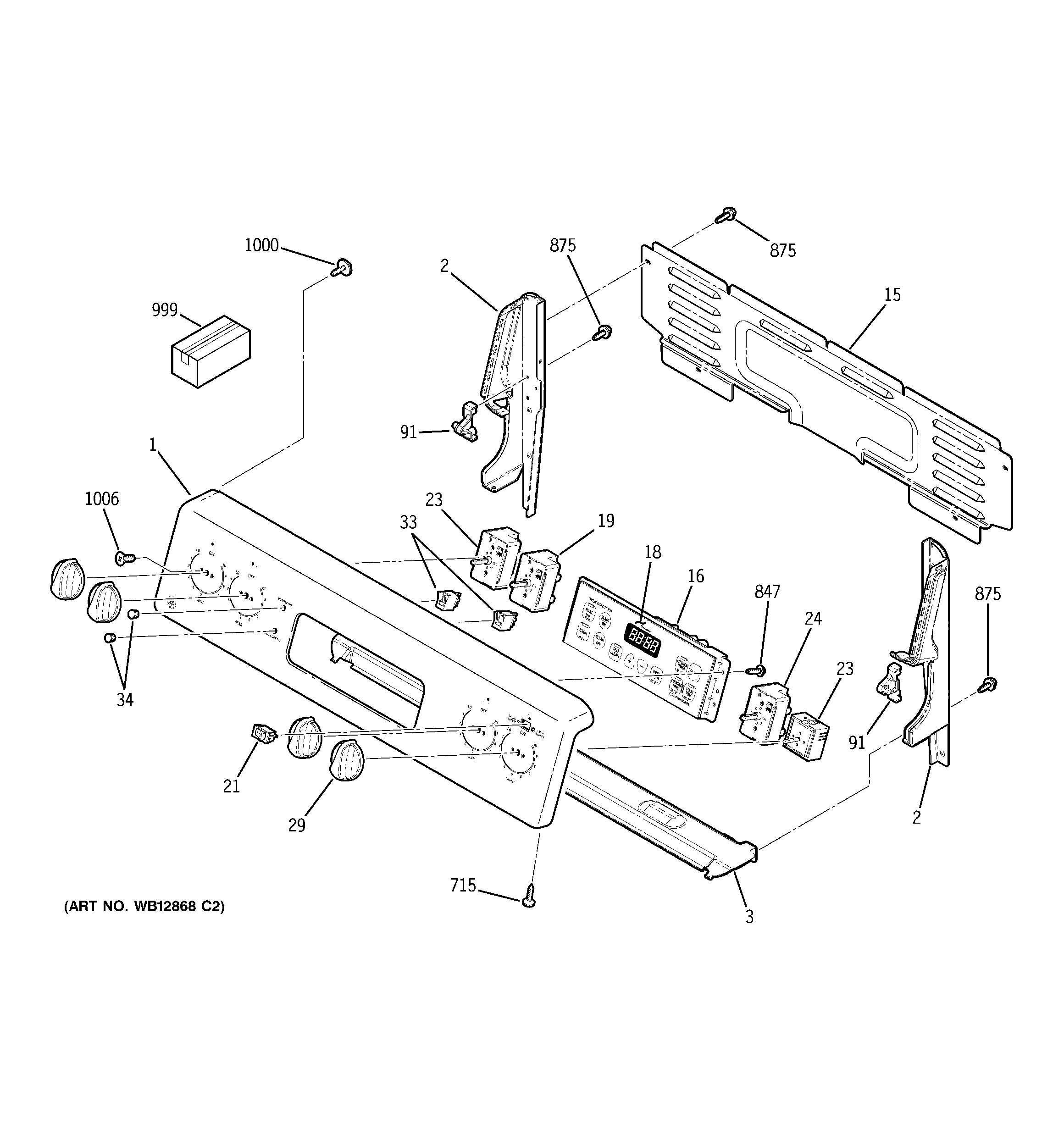

JB710CH2CC CONTROL PANEL

Products

PositionProduct
1GEN WB36T10684
2GEN WB36T10295
2GEN WB36T10294
3GEN WB02T10022
15GEN WB34T10088
16CONTROL OVEN TO9 (ELEC)
18GEN WB27T10514
19WB24T10027 GE Oven Range Cooktop Top Burner Infinite Switch 2100W
21GEN WB24T10075
23WB24T10029 GE Oven Infinite Burner Switch
24INFINITE CONTROL SWITCH
29KNOB BQ
33WB27T10626 GE Oven Indicator Light Pilot
34JEWEL
91GEN WB10T10002
715WD2X434 GE Dishwasher Trim Screw
847WB1X1118 GE Oven Screw 6-32T
875WZ4X245D GE Screw Package
875WH2X930 GE Screw
999GEN 49-80178
999GEN 31-14166
999GEN 31-10556
999PM10X310 GE Cerama Bryte Cooktop Cleaner
1000WB01T10016 GE Oven Screw 8-18 AB Hex
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
