JB710DT1BB WARMING DRAWER

JB710DT1BB WARMING DRAWER

Written by

in

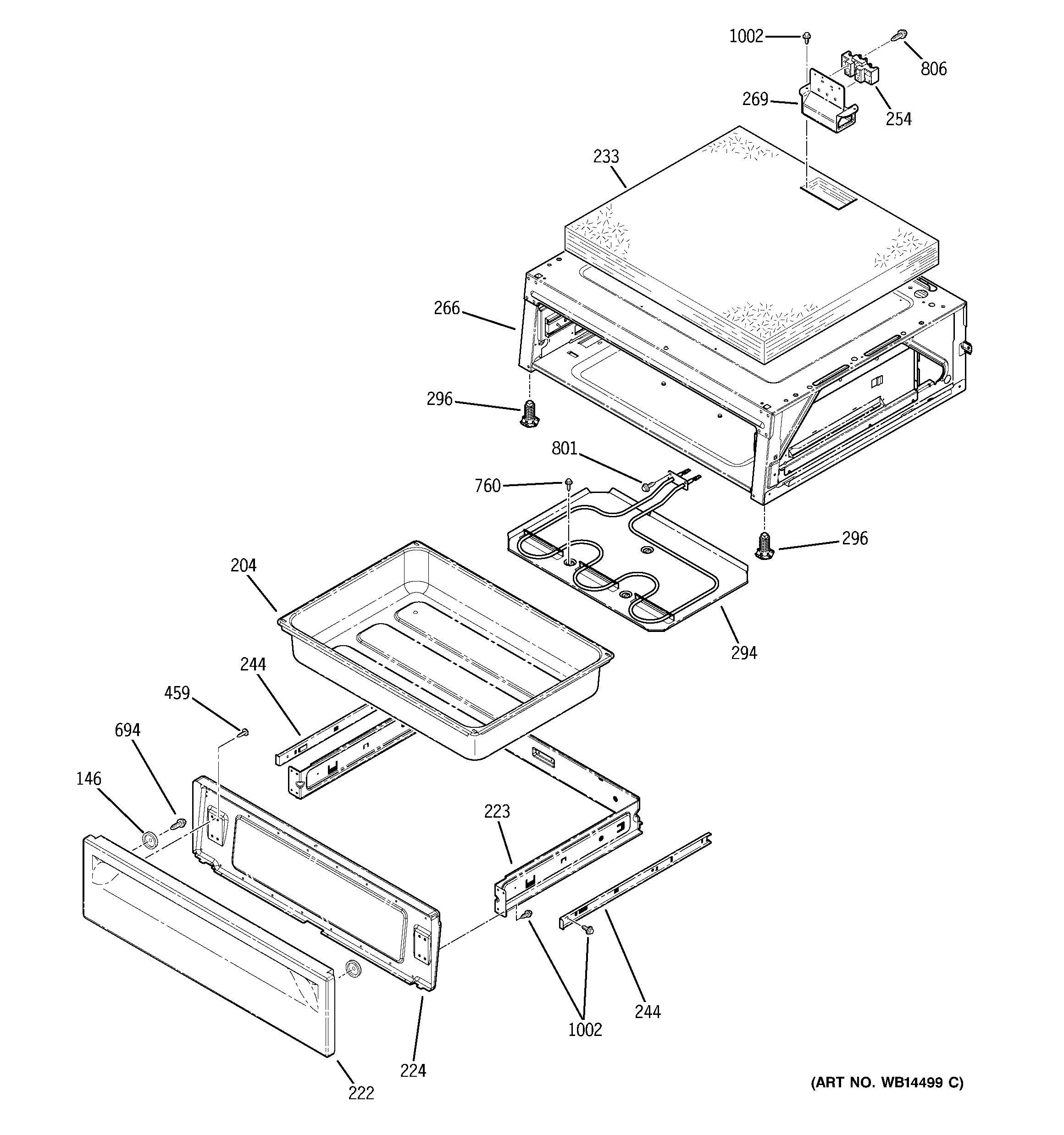

JB710DT1BB WARMING DRAWER

Products

PositionProduct
146WB1K5117 GE Oven Washer
204GEN WB49T10011
222GEN WB56T10267
222GEN WB56T10268
223WB63T10146 GE Oven Frame Drawer and Bracket Assembly
224GEN WB56T10180
233GEN WB35T10022
244GUIDE- SLIDE DRAWER
254WB17T10011 GE Oven Terminal Block
266GEN WB58T10011
269WB17T10020 GE Oven Terminal Block Mount
294WB30T10144 GE Oven Heating Element (WARM)
296WB02X10521 GE Oven Leveling Leg
459WB1X537 GE Oven Screw
694WZ4X245D GE Screw Package
760WB1X500D GE Oven Screw Package
760WB1X536 GE Oven Screw
801WB1M1 GE Oven Screw
806WB01T10072 GE Screw 8-32 1HW .312 Nickel
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
