JB710DT2BB WARMING DRAWER

JB710DT2BB WARMING DRAWER

Written by

in

JB710DT2BB WARMING DRAWER

Products

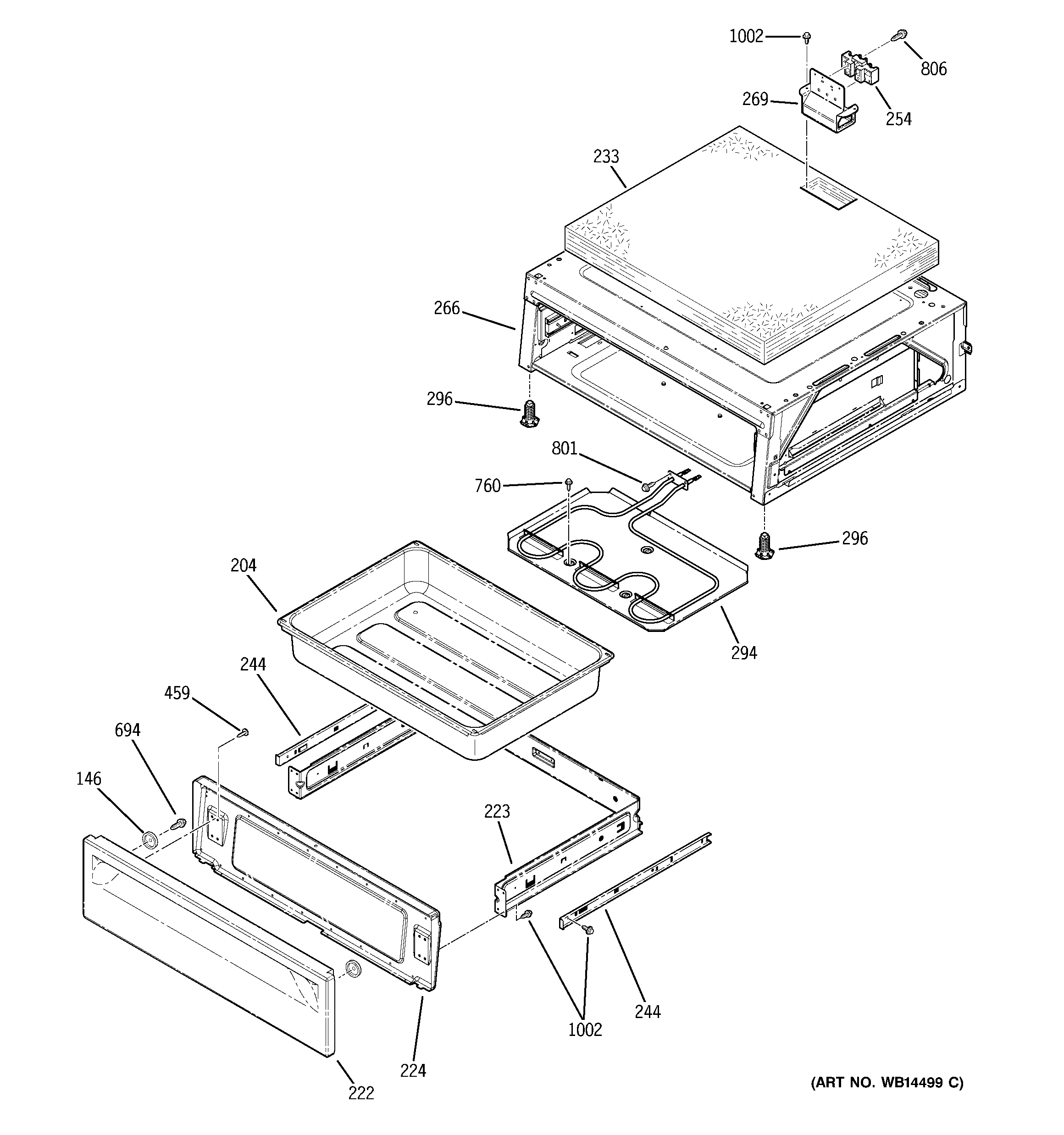

PositionProduct
146WB1K5117 GE Oven Washer
204GEN WB49T10011
222GEN WB56T10268
222GEN WB56T10267
223WB63T10146 GE Oven Frame Drawer and Bracket Assembly
224GEN WB56T10180
233GEN WB35T10254
244GUIDE- SLIDE DRAWER
254WB17T10011 GE Oven Terminal Block
266WB63X25155 GE Cavity Warming Drawer Assembly
269WB17T10020 GE Oven Terminal Block Mount
294WB30T10144 GE Oven Heating Element (WARM)
296WB02X10521 GE Oven Leveling Leg
459WB1X537 GE Oven Screw
694WB1K5156 GE Oven Screw
760WB1X536 GE Oven Screw
801WB1M1 GE Oven Screw
806WH2X930 GE Screw
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
