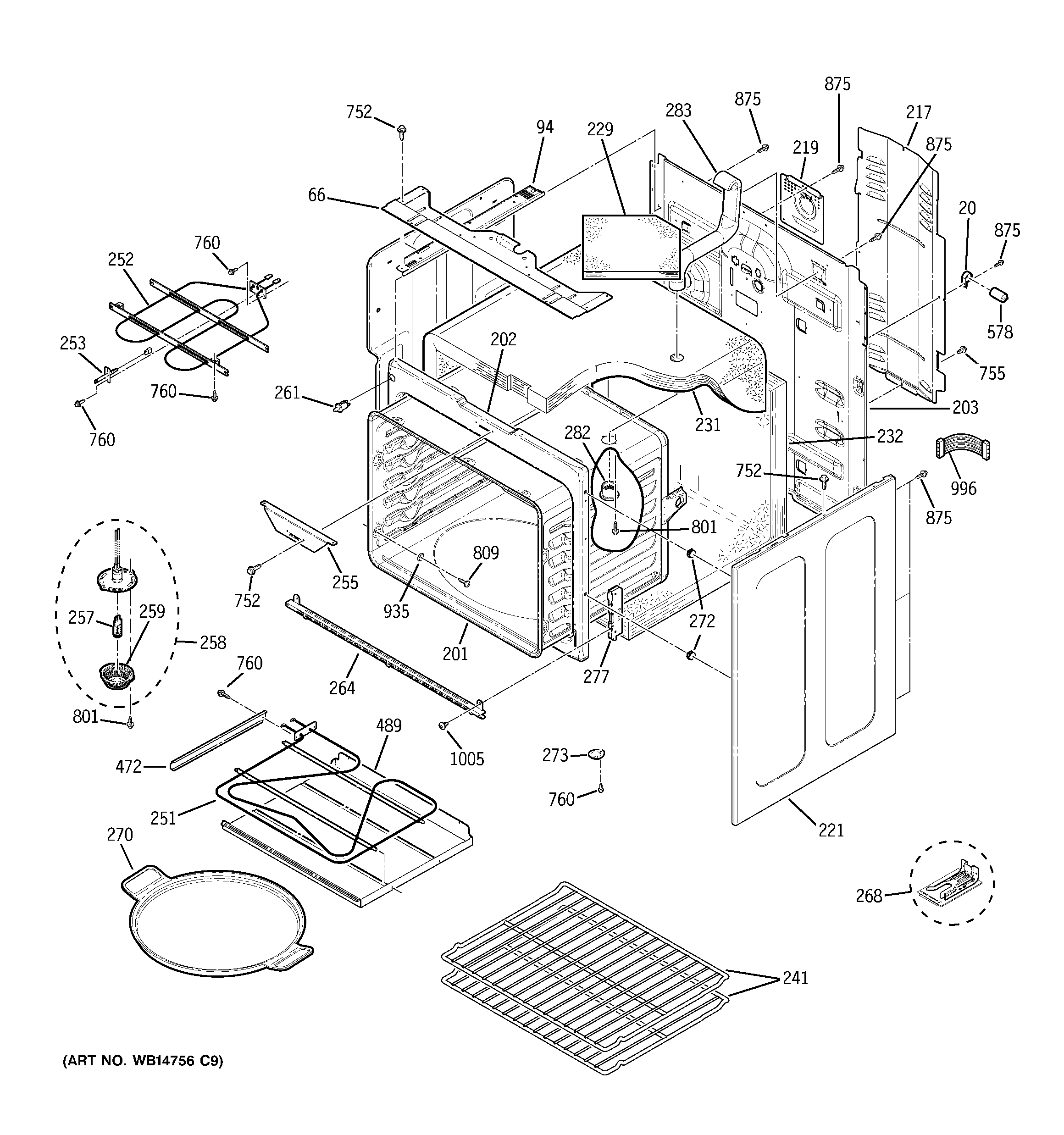

JB710TT3WW BODY PARTS

JB710TT3WW BODY PARTS

Written by

in

JB710TT3WW BODY PARTS

Products

PositionProduct
20WB02T10194 GE Capacitor Bracket
66WB34T10125 GE Enclosure Raptor
94WB34X26004 GE Range Radiant LT Chassis BR
94WB02T10463 GE Oven Radiant Chassis Brace
201GEN WB63T10150
202GEN WB63T10096
203GEN WB63T10147
217WB34T10128 GE Oven Back Cover
219COVER RECEPTACLE
221WB56X28884 GE Oven White Side Panel
229WB35T10017 GE Oven Vent Tube Insulation
231WB35T10209 GE Oven Insulation
232GEN WB35T10023
241WB48T10083 GE Oven Rack
251WB44X45499 GE Oven Bake Element
252WB44T10094 GE Oven Broil Element
253WB21X22134 GE Oven Sensor Assembly
255GEN WB07T10517
257WB08T10045 GE Oven G9 Halogen Lamp
258GEN WB25T10097
259OV LAMP LENS LWR
261WB24T10147 GE Oven SPDT Light Switch
264WB07T10516 GE Oven Front Trim Assembly
264WB39K10020 GE Oven Right Drawer Slide Assembly
268WB02T10578 GE Oven Anti-Tip Bracket Assembly
270GEN WB34T10108
270GEN WB34T10107
270GEN WB49T10074
272WB02T10034 GE Oven Body Side Support
273GEN WB02K5365
277WB10T10068 GE Oven Hinge Receiver
282WB38X33648 GE Vent Tube
283WB28T10217 GE Radiant Vent Tube
472WB49T10007 GE Side Reflector
489WB02T10509 GE Bake Element Reflector Pan
578WB27T10662 GE Oven Capacitor
752WB1K5200 GE Oven Screw 340531
755WB1X1261 GE Oven Screw
760WB1X536 GE Oven Screw
801WB1M1 GE Oven Screw
809WB1X1137 GE Oven Screw
875WZ4X245D GE Screw Package
935WB01T10112 GE Washer Aluminum
996GEN WB18T10498
1005WB01T10008 GE Oven Screw 10-32
