JB735EP4ES CONTROL PANEL

JB735EP4ES CONTROL PANEL

Written by

in

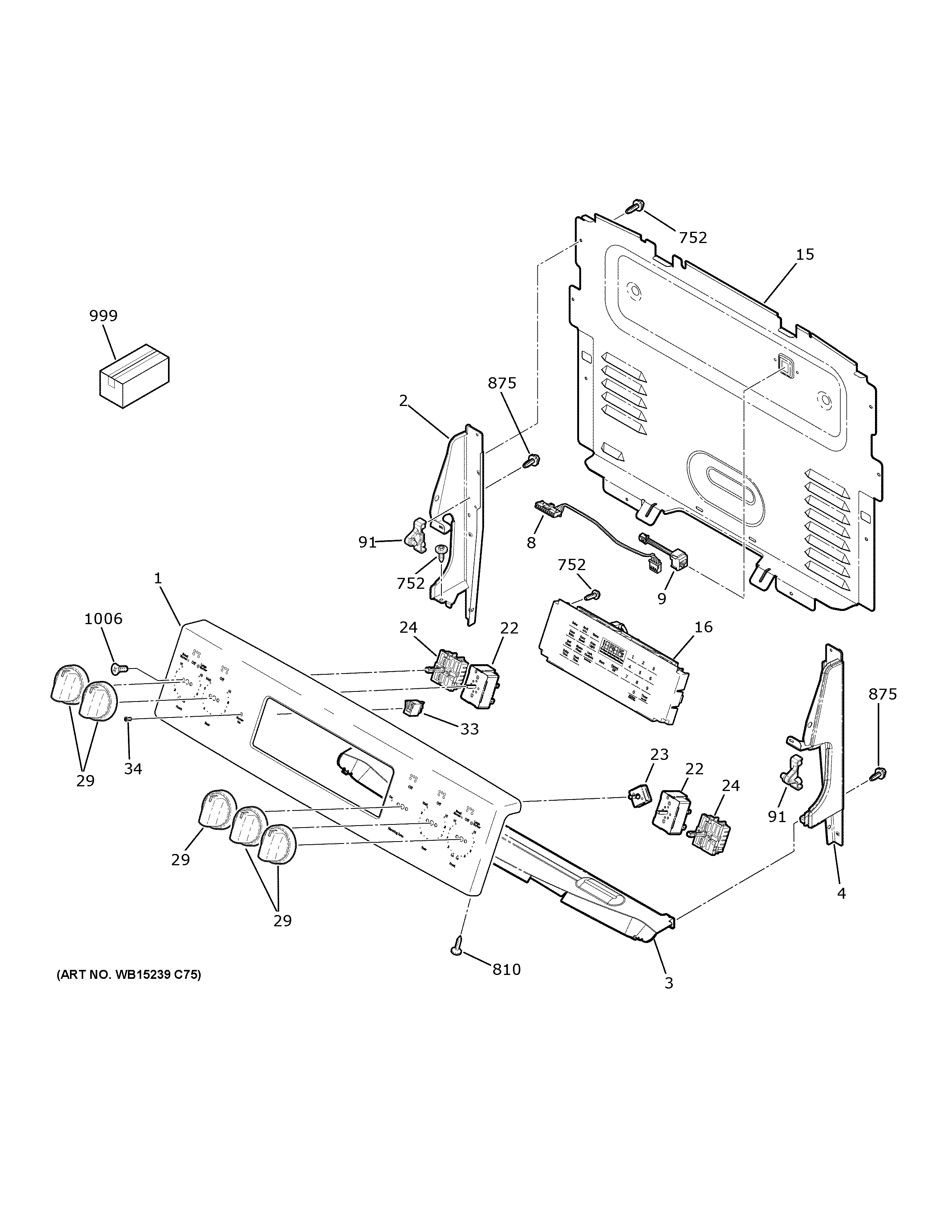

JB735EP4ES CONTROL PANEL

Products

PositionProduct
1WB07X37727 GE Slate Control Panel Trim
2WB07X29534 GE Oven Left Hand End Plate
3WB34X28565 GE Oven Heat Backguard Shield
4WB07X29535 GE Oven Right Hand End Plate
8WB18X38827 GE WiFi RJ45 Harness
9WB18X38667 GE RJ45 Internal Connection Harness
15WB34X41219 GE Control Cover
16WB27X47793 GE Faceplate Control
22WB24T10022 GE Oven Infinite Switch
23WB24X40051 GE Rotary Switch
24WB24X25013 GE Oven Control Infinite Switch
29WB03X24965 GE Oven Infinite Control Knob
33WB25X20005 GE Oven Light Indicator Pilot
34WB25X24023 GE Oven Indicator Light Lens
91WB10T10116 GE Range Top Hinge Pin
752WB1K5200 GE Oven Screw 340531
810WB1K60 GE Screw 8-18
875WH2X930 GE Screw
999PM MINI MANUAL AND WIRING
999INSTRUCTION INSTALL
999PM INSTALL INSTRUCTIONS
999PM OWNERS MANUAL
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
