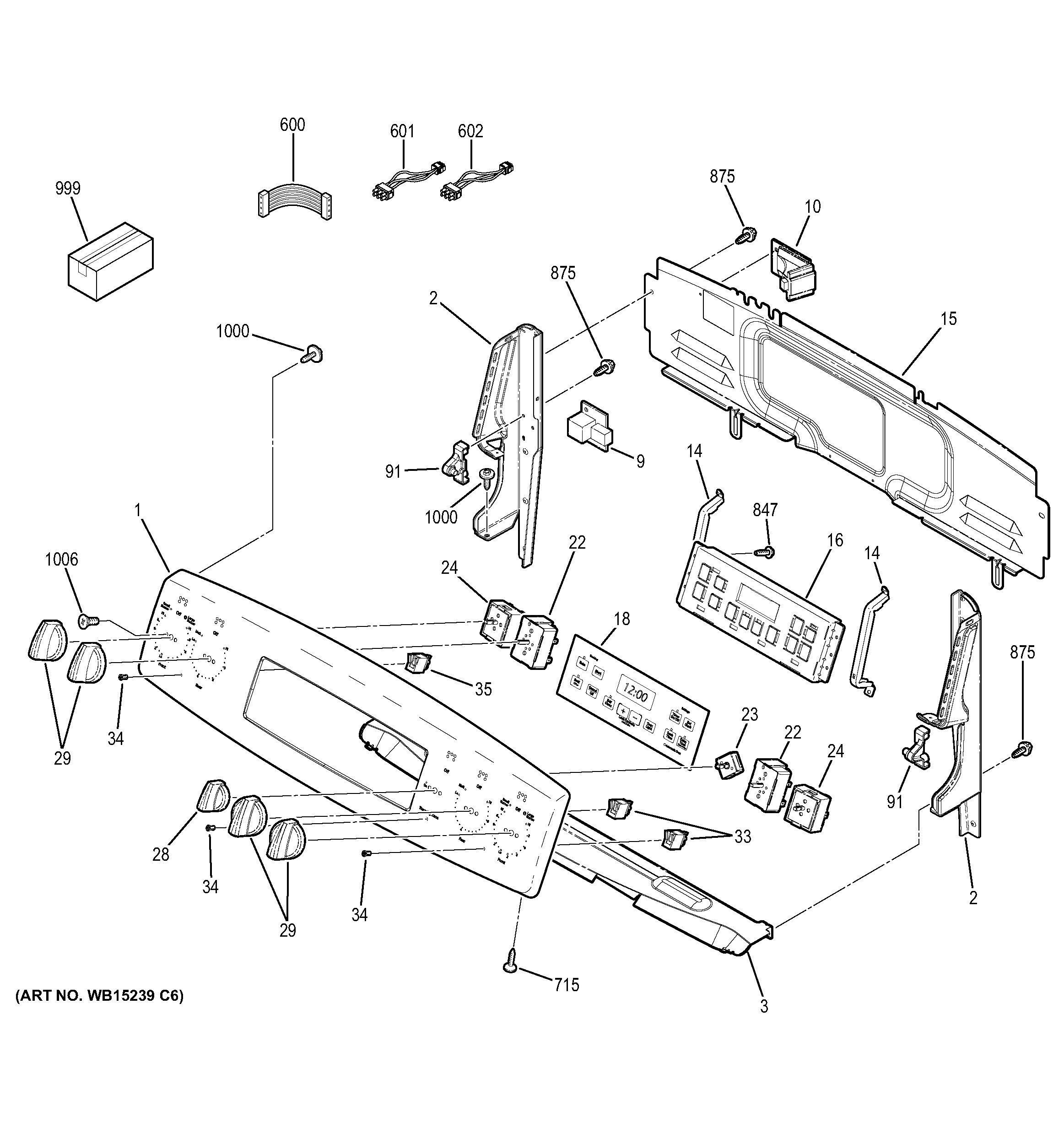

JB740DF1BB CONTROL PANEL

Products

Position	Product
1	GEN WB07X20007
1	GEN 229C6304P001
2	WB07X27823 GE End Plate LT (Black)
2	WB36T11204 GE Oven Right End Plate
3	WB02X20711 GE Oven Heat Shield Back Guard
9	WB27X20933 GE Oven RJ45 Housing Assembly
14	GEN WB34X20003
14	GEN WB34X20004
15	GEN WB34X20934
16	WB27X25357 GE Oven Control Board TO12
18	GEN WB27X20094
22	WB24T10029 GE Oven Infinite Burner Switch
23	GEN WB24T10181
24	WB24T10153 GE Oven Infinite Switch Control
28	GEN WB03X21411
29	WB03T10332 GE Stove Burner Control Knob
33	WB25K10010 GE Oven Light Indicator Pilot
34	WB25T10103 GE Oven Lens
35	WB25X20005 GE Oven Light Indicator Pilot
91	WB10T10116 GE Range Top Hinge Pin
600	WB18X20001 GE Infinite Wire Harness
601	GEN WB18X20006
602	WB18T10466 GE Oven 18-Inch Lead Wire
715	WD2X432 GE Dishwasher Screw
847	GEN WB02T10324X
875	WH2X930 GE Screw
999	GEN 49-80597
999	GEN 49-80629
999	GEN 49-80633
999	GEN 31-17045
999	GEN 31-10816
999	INSTR INSTALL OVN DOOR
999	GEN 31-10781
1000	WB01T10126 GE Oven Screw 8-18 AB HXW 1/2 S
1006	WB01T10053 GE Oven 8-32 TPT FLR Screw
