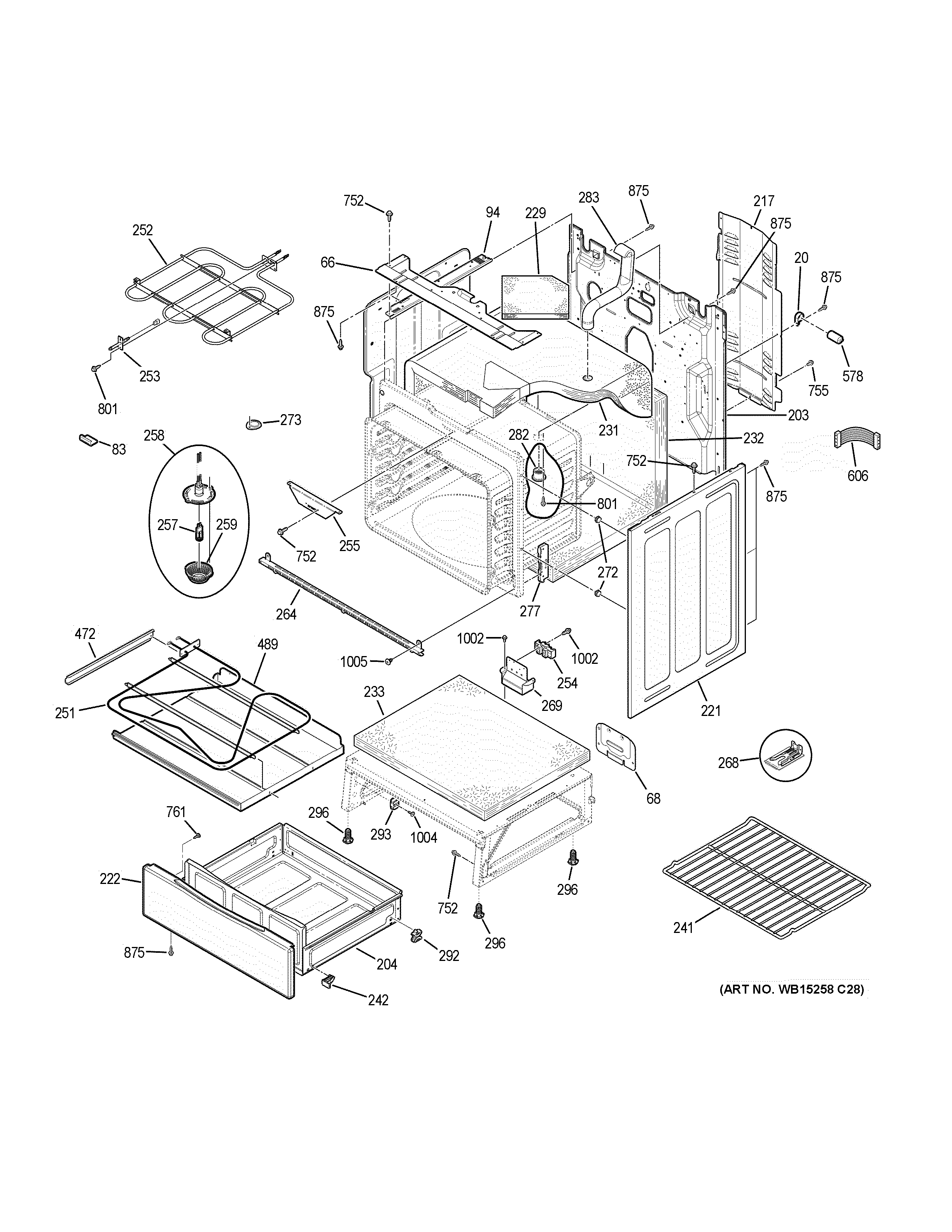

JB750BJ6TS BODY PARTS

JB750BJ6TS BODY PARTS

Written by

in

JB750BJ6TS BODY PARTS

Products

PositionProduct
20WB02T10194 GE Capacitor Bracket
66WB34X30165 GE Range Top Enclosure
68PLATE COVER (BK)
83WB02T10118 GE Oven Clip Seam
94WB02T10463 GE Oven Radiant Chassis Brace
94WB34X26004 GE Range Radiant LT Chassis BR
203MAIN BACK COVER
204WB63X41287 GE Drawer Slide Assembly
217WB34X29563 GE Oven Wire Cover
221WB63X28679 GE Oven Side Panel
222WB56X30075 GE Oven Drawer Panel
229WB35T10017 GE Oven Vent Tube Insulation
231WB35X29572 GE Oven Cavity Insulation
232WB35X29571 GE Oven Back Insulation
233WB35X29075 GE Oven Bottom Insulation
241WB48T10083 GE Oven Rack
242WB02X29072 GE Oven Drawer Wedge
251WB44X45499 GE Oven Bake Element
252WB44X45498 GE Broiler Assembly Unit
253WB21X22134 GE Oven Sensor Assembly
254WB17T10011 GE Oven Terminal Block
255WB07X21459 GE Latch Trim
257WB08T10045 GE Oven G9 Halogen Lamp
258WB25X24909 GE Oven Halogen Lamp Assembly
259OV LAMP LENS LWR
264WB07T10516 GE Oven Front Trim Assembly
268WB02T10578 GE Oven Anti-Tip Bracket Assembly
269WB34X29565 GE Oven Terminal Block
272WB02T10034 GE Oven Body Side Support
273GEN WB02K5365
277WB10X29566 GE Hinge Receiver
282WB38X33648 GE Vent Tube
283WB34X29573 GE Vent Tube
292WB02X33180 GE Oven Drawer Glide
293WB48T10013 GE Oven Drawer Support
296WB02X10521 GE Oven Leveling Leg
472WB49T10007 GE Side Reflector
489WB02T10509 GE Bake Element Reflector Pan
578WB27T10662 GE Oven Capacitor
606WB18X32661 GE Hidden Bake Harness
752WB1K5200 GE Oven Screw 340531
755WR01X10602 GE Refrigerator Screw 8-32 AB IHWS 3/8 S
761WB1X5364 GE Oven Mounting Screw
801WB01M10002 GE Oven Screw
875WH2X930 GE Screw
1002WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS
1004GEN WH02X0941
1005WB01T10008 GE Oven Screw 10-32
