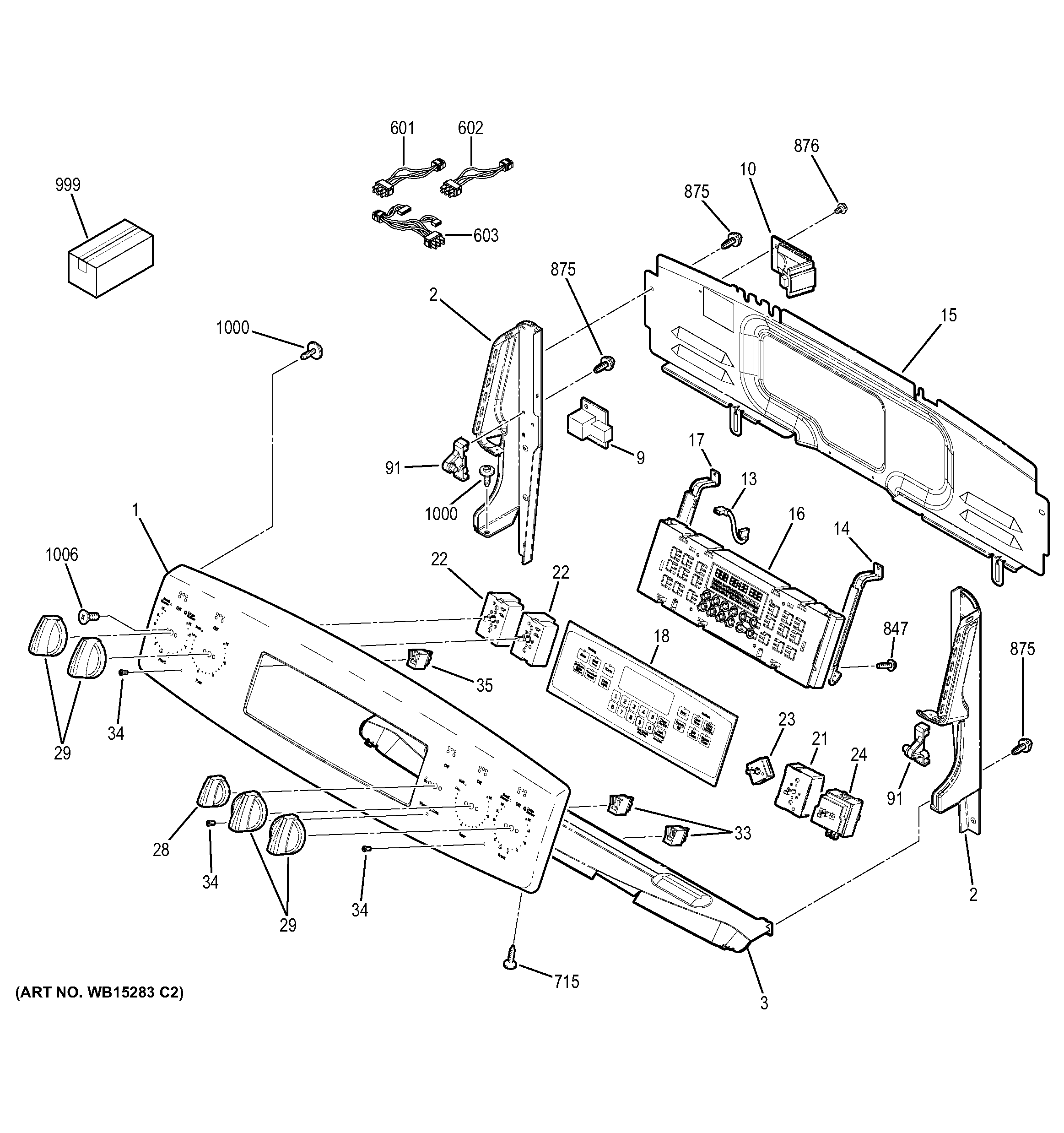

JB750DF1WW CONTROL PANEL

JB750DF1WW CONTROL PANEL

Written by

in

JB750DF1WW CONTROL PANEL

Products

PositionProduct
1GEN WB36X20035
1GEN 229C6303P001
2WB36T11206 GE Oven End Plate Right
2WB36T11207 GE Oven End Plate LT
3WB02X20711 GE Oven Heat Shield Back Guard
9WB27X20933 GE Oven RJ45 Housing Assembly
13WB18X30704 GE Jumper
14GEN WB34X20004
15GEN WB34X20934
16WB27X25357 GE Oven Control Board TO12
17GEN WB34X20003
18GEN WB27X20096
21WB24T10029 GE Oven Infinite Burner Switch
22WB24T10146 GE Oven Surface Element Control
23GEN WB24T10181
24WB24T10162 GE Oven Infinite Control Switch
28GEN WB03T10335
29WB03T10334 GE Oven Knob Assembly
33WB25K10010 GE Oven Light Indicator Pilot
34WB25T10103 GE Oven Lens
35WB25X20005 GE Oven Light Indicator Pilot
91WB10T10116 GE Range Top Hinge Pin
601GEN WB18X20123
602GEN WB18X20006
603GEN WB18X20029
715WD2X432 GE Dishwasher Screw
847WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI
875WZ4X245D GE Screw Package
876WB1X500D GE Oven Screw Package
999GEN 49-80597
999GEN 31-17046
999GEN 49-80633
999GEN 31-10781
999INSTR INSTALL OVN DOOR
999GEN 31-10816
1000WB01T10126 GE Oven Screw 8-18 AB HXW 1/2 S
1006WB01X23501 GE Oven Screw 8-32 Tapping Flat Head
